Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Mate solar
-
Model Number:
-
182MM MT5 MS565W-72H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278 x 1134 x 35mm
-
Keyword:
-
144 cells
-
Weight:
-
26.9kg
-
Front Side Glass:
-
High transparency solar glass 3.2mm
-
Backsheet:
-
Wehite
-
Frame:
-
Black/Silver,anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cables:
-
4.0mm2, Portrait: 300mm / Landscape: 1200mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
OEM Order:
-
Acceptable OEM
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
Mate solar
-
Model Number:
-
182MM MT5 MS565W-72H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278 x 1134 x 35mm
-
Keyword:
-
144 cells
-
Weight:
-
26.9kg
-
Front Side Glass:
-
High transparency solar glass 3.2mm
-
Backsheet:
-
Wehite
-
Frame:
-
Black/Silver,anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cables:
-
4.0mm2, Portrait: 300mm / Landscape: 1200mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
OEM Order:
-
Acceptable OEM

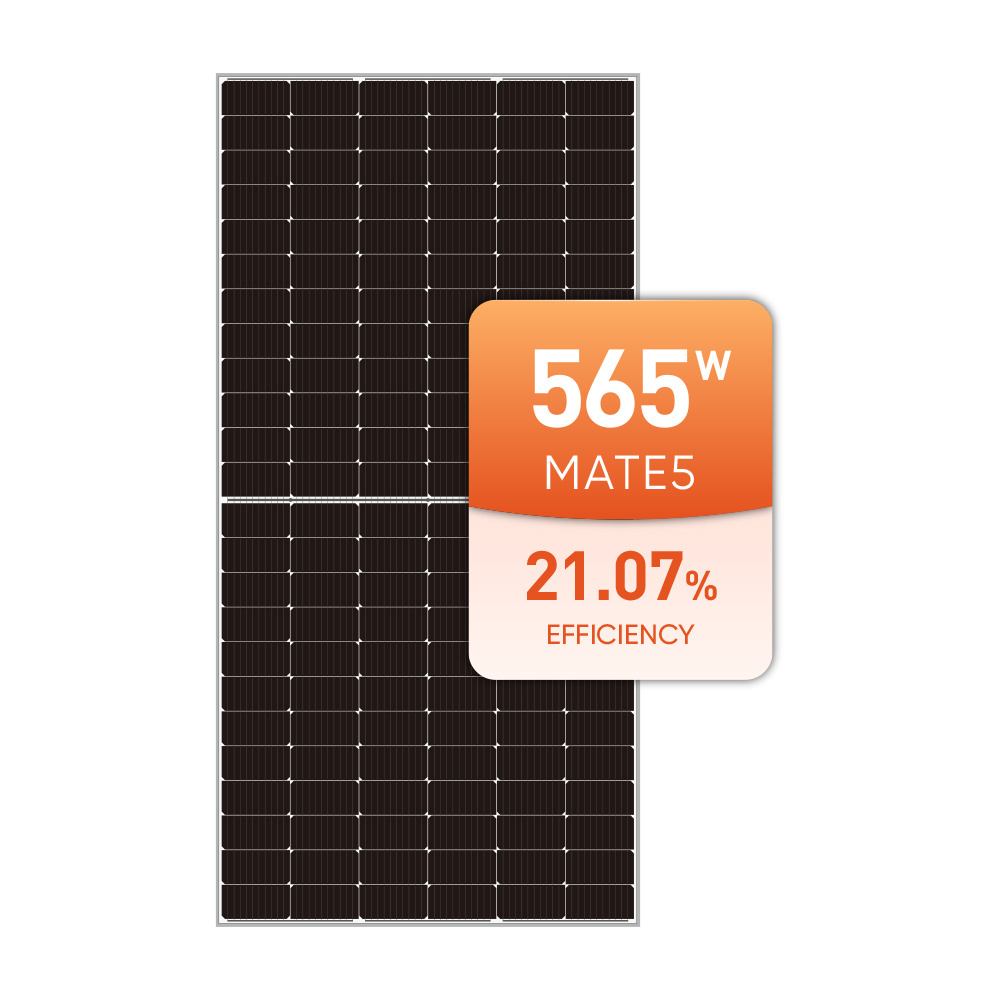

Mate Solar Panel
|
Maximum Power (Pmax/W)
|
545
|
550
|
555
|
560
|
565
|
||||
|
Maximum Power Voltage (Vmp/V)
|
40.81
|
40.90
|
40.99
|
41.08
|
41.17
|
||||
|
Maximum Power Current (Imp/A)
|
13.36
|
13.45
|
13.54
|
13.64
|
13.74
|
||||
|
Open Circuit Voltage (Voc/V)
|
49.54
|
49.64
|
49.74
|
49.84
|
49.94
|
||||
|
Short Circuit Current (Isc/A)
|
13.93
|
14.00
|
14.07
|
14.14
|
14.21
|
||||
|
Module Efficiency (%)
|
21.09
|
21.29
|
21.48
|
21.67
|
21.87
|
||||
|
Power Output Tolerance (W)
|
0~+5W
|
|
|
|
|
||||
|
Temperature Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
||||
|
Temperature Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
||||
|
Temperature Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
||||
