Quick Details
-
Brand Name:
-
XCMG
-
Flow range(l/min):
-
80-110
-
Pressure range(mpa):
-
14-22
-
Discharge distance(mm):
-
600
Quick Details
-
Weight (KG):
-
459
-
Use:
-
459
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Flow range(l/min):
-
80-110
-
Pressure range(mpa):
-
14-22
-
Discharge distance(mm):
-
600

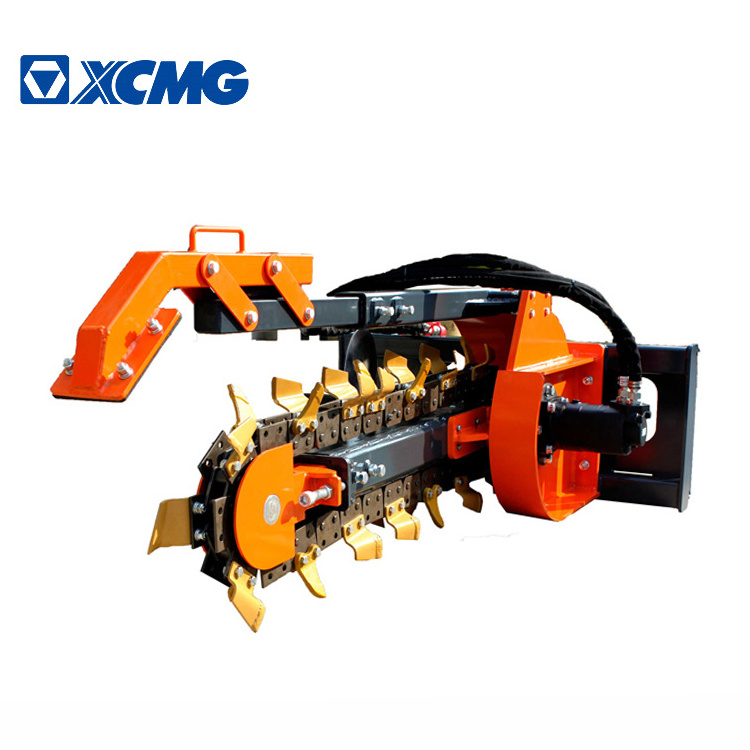

XCMG Official Tractor 3 Point Hitch Mini Trencher .
Earth trencher attachment
It can adjusting digging depth and shift aside close to wall face by manual.
High torque hydraulic motor for maximum digging power.
Heavy duty boom & crumber.Two position manual side shift mounting with optional inifinite position using hydraulic side shift cylinder assembly.
Replaces dedicated machines at a fraction of the cost. Several tooth options available: cup, shark, rock & frost.
Product Paramenters
|
trencher model
|
X020724
|
X020730
|
X020736
|
X020748
|
|
65 degree tenching depth(mm)
|
600
|
760
|
915
|
1220
|
|
overall dimensions(mm)
|
1632*1350*720
|
1784*1350*720
|
1952*1350*720
|
2292*1350*720
|
|
trenching width(mm)
|
150
|
150
|
150
|
150
|
|
trenching angle(degree)
|
65
|
65
|
65
|
65
|
|
discharge distance(mm)
|
600
|
600
|
600
|
600
|
|
flow range(l/min_
|
80-110
|
80-110
|
80-110
|
80-110
|
|
pressure range(mpa)
|
14-22
|
14-22
|
14-22
|
14-22
|
|
operating weight(kg)
|
459
|
502
|
545
|
590
|
