Quick Details
-
Flushing Method:
-
Gravity Flushing
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Rajeyn
-
Model Number:
-
RJY-20-S20-
-
power supply:
-
DC6V / AC100-240V
-
panel material:
-
stainless steel & plastic
-
solenoid valve material:
-
brass
-
sensor distance:
-
60cm
-
sensor range:
-
50-80cm adjustable
-
sensor lifetime:
-
500,000 times
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel
-
Material:
-
Stainless steel
-
Flushing Method:
-
Gravity Flushing
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Rajeyn
-
Model Number:
-
RJY-20-S20-
-
power supply:
-
DC6V / AC100-240V
-
panel material:
-
stainless steel & plastic
-
solenoid valve material:
-
brass
-
sensor distance:
-
60cm
-
sensor range:
-
50-80cm adjustable
-
sensor lifetime:
-
500,000 times

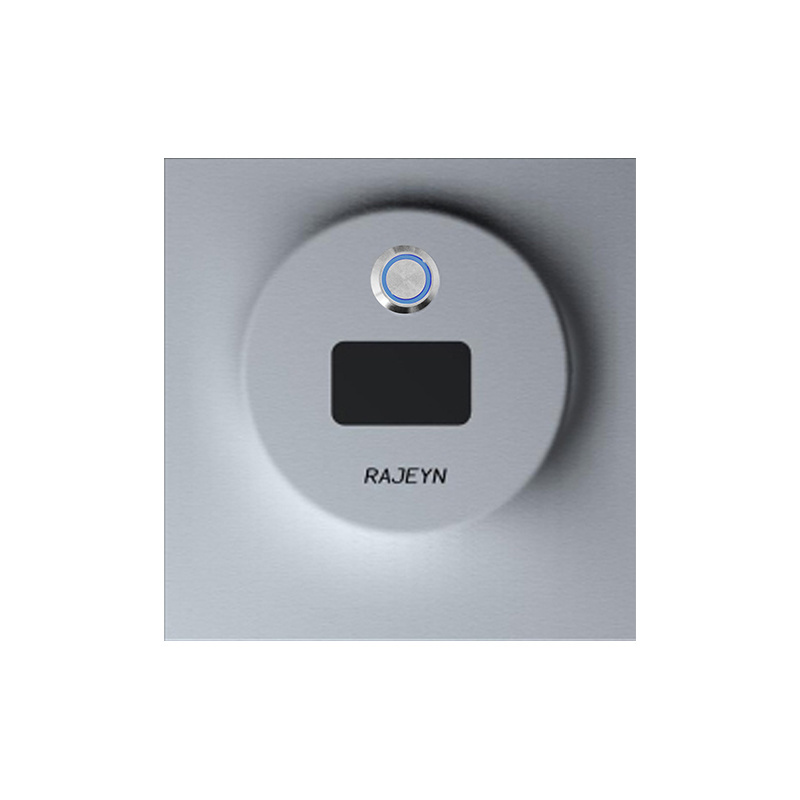

The sensor urinal flusher adopts an infrared sensor to detect urinal usage and flush automatically after e floor mounted urinal & urinal sensor flush valve chroming sensor urinal & urine sex ach usage. There is no need for the user to touch any surface. The flush valve will be activated on demand eliminating the odors caused by unflushed urinals. When urinals and toilets are promptly flushed, a germ free, odor free, and automated environment is created.
|
Materials |
Brass |
|
Color |
Stainless Steel |
|
Components |
Embedded box, sensor, solenoid, batteries/converter, accessories |
|
Sensing Distance |
80cm (adjustable) |
|
Depth in the wall |
97mm |
|
Hole specification in the wall |
150*200*100mm |
|
Response time |
2s |
|
Water supply pipe size |
DN15 (G1/2") |
|
Voltage |
100-240VAC 50/60Hz or 6V (2CR5) |
|
Water Temperature |
0.1-60 degree |
|
Environment Temperature |
0.1-45 degree |
|
Water Pressure |
0.05-0.7Mpa |
|
Operation Consumption |
<60uA |
|
Overall Power Consumption |
<0.5W |
|
Life cycle |
500,000 flush times |
|
Pakage |
12pcs/carton |
|
Advantage |
adjustable sensing distance&flushing duration by remote controller |
|
Usage |
Installed in families, offices, stations, hotels, hospitals etc. |
|
National Patent |
ZL2007200068368 |
|
Suitable Installation |
New structure or Retrofit public urinals |
|
Finish |
Polished |
Our Advantages
1. Low power consumption (Operation Consumption is <60uA and Overall Power Consumption is <0.5W. 6V alkaline batteries can be used for 1-1.5years).
2. Saving water. The urinal flusher conducts TWICE flushing mode. When a person stands in the sensing area(before usage), the urinal flusher will auto flush for 2s; 2s after the person leaves, the urinal flusher will automatically flush for 7s. However, the urinal flusher only flushes ONCE if used continuously over 2 times within 1m.
3. The urinal flusher will automatically flush ONCE if no usage within 24hours.
4. Easy maintenance—There is a filter net in the installation, which is easy to adjust water flow and for cleaning.
5. Installation features—The embedded box with ultrathin design is installed into the wall, especially welcomed if the wall thickness is only 6CM.
6. Sensing range and flush duration can be adjusted by remote controller.
