Quick Details
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
562*530*676
-
Weight:
-
155
-
Rated power/speed:
-
1500/1800/2000/2500/2800/3000
-
Product name:
-
Deutz F2L511 new diesel engine
-
Engine type:
-
Air-cooled Diesel Engine
-
Rated Power:
-
1500kw/1800kw
-
BORE*STROKE:
-
100*115mm
-
Color:
-
Grey
-
Application:
-
Gemerator
-
Power Factor:
-
0.8
-
MOQ:
-
1pc
-
Overall dimension:
-
1050*600*930
-
Packing:
-
Wooden Box
Quick Details
-
Displacement:
-
70CC
-
Emission Standard:
-
Euro 2
-
Power:
-
12HP, 15HP
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
562*530*676
-
Weight:
-
155
-
Rated power/speed:
-
1500/1800/2000/2500/2800/3000
-
Product name:
-
Deutz F2L511 new diesel engine
-
Engine type:
-
Air-cooled Diesel Engine
-
Rated Power:
-
1500kw/1800kw
-
BORE*STROKE:
-
100*115mm
-
Color:
-
Grey
-
Application:
-
Gemerator
-
Power Factor:
-
0.8
-
MOQ:
-
1pc
-
Overall dimension:
-
1050*600*930
-
Packing:
-
Wooden Box

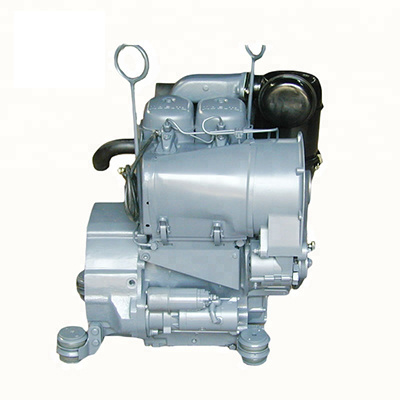

Deutz F2L511 Diesel Engine
| Model | F1L511 |
| Cylinder number | 2 cyl |
| Chamber type | Direct injection |
| Bore x stroke | 100*105 mm |
| 15-Minute Output Rating, KW/HP | 6.8 / 9.2 8.5 / 11.5 9.7 / 13.2 11.5 / 15.6 12.5 / 17 12.8 / 17.5 |
| 12-Hour Output Rating , KW/HP | 5.7 / 7.7 7.3 / 9.9 8.2 / 11.1 9.7 / 13.2 10.5 / 14.3 10.9 / 14.8 |
| Starting manner | Electric |
| dimensionsL*W*H | 1050*600*930mm |
| Net weight | 360kg |
| Advantage |
(1)Small seize,light weight ,low fuel consumption,long service time,easy starting and convenient maintenance ect
(2)Wide application:engineering machineries, mining machineries, automobiles, agriculural equipments generating
equipments, medium and small ship ect. (3)Fine adaptablity: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area and low pollution requested working environment |
The flywheel size (mm)
Part Number (combination Part Number) : 2242071(SAE2)(027 0749) / 2242050(SAE3)(027 0748) / 2102308(SAE4)(027 0747)
Stop Mouth Aperture :
447.7H7 / 409.58H7 / 361.95H7
Stop Mouth width :
12
Flywheel Shell width :
122-0.3
Threaded Hole Distribution Round :
466.7±0.3 / 428.6±0.3 / 381±0.3
Bolt Quantity : 12×M10
THWHEEL SHELL CONNECTION SIZE (MM)
THE FLYWHEEL SHELL CONNECTION SIZE (MM)
THE FWEEL SHELL CONNECTION SIZE (MM
wholesale for Deutz serial spare parts,
such as for Deutz 912,913,914,413,511,1011,1012,1013,2011,2012,2013 etc spare parts
