This is a creative design fashion brushless wheelchair joystick-style controller. It allows users to smoothly through a user-friendly control panel, instant control for the power wheelchair in any direction(360 degrees) movement.
The controller with programmble computer chips to drive two brushless DC motors with different speed or direction of rotation to achieve power wheelchair movement in any direction, so users really feel the power of perfect control through finger.
|
Product name
|
Brushless Controller
|
Voltage
|
24V
|
|
Under-voltage
|
21V+0.5
|
Application
|
wheelchair
|
|
No-load current
|
1.5A
|
Certification
|
CE,EN61000,ISO90001
|
|
Power
|
250w
|
Model number
|
YL-K1
|
|
Brake type
|
Electromagnetic brake
|
Control voltage
|
0.5-4.5V
|
|
Speed limited
|
<6km/h
|
Operating temperature
|
-30-80°C
|
|
Size of Controller
|
167*81*115mm
|
Weight
|
1041g(control box)
|
|
Size of Controller
|
176*135*47mm
|
Place of Origin
|
Jiangsu, China (Mainland)
|
1.EMC anti-interference 2.Panel parameter setting
3.Runaway protection 4.Over current protection
5.Over voltage protecti 6.Under voltage protection
7.short circuit protecti 8.Over temperature protection
9.Locked rotor peotection for motor

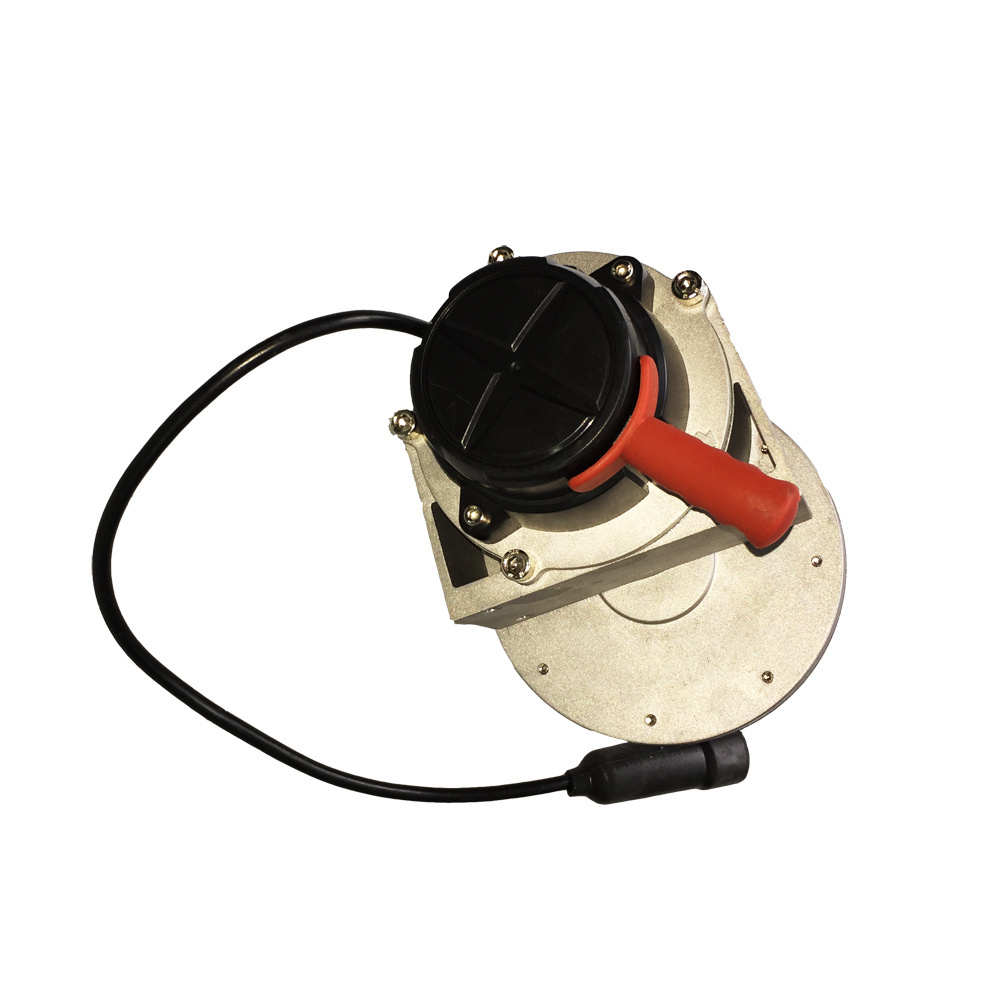

1. Brushless motor, high efficiency, long working lifespan, free of maintenance;
|
Product Paramenters
|
|
|
|
|
||||
|
Product Name
|
Brushless Dc Motor Electric Wheelchair Motor
|
|
|
|
||||
|
Rated Power
|
250W
|
|
|
|
||||
|
Rated Voltage
|
24V dc
|
|
|
|
||||
|
Insulation Class
|
F Class
|
|
|
|
||||
|
No-load Speed
|
3400rmp
|
|
|
|
||||
|
No-load Output Speed
|
150rmp
|
|
|
|
||||
|
Starting Current
|
≤ 1.8A max
|
|
|
|
||||
|
No-load Current
|
≤ 1.1A
|
|
|
|
||||
|
Insulation Voltage
|
0~550Vac/ 1mA/ 1sec
|
|
|
|
||||
|
Reducer Speed Ratio
|
23:1
|
|
|
|
||||
|
Electromagnetic Brake
|
3N.m 24V dc
|
|
|
|
||||
|
Wheel diameter
|
8 inch
|
|
|
|
||||
Brake type Electromagnetic brake
Brake level 3N.m 24Vdc
Reduction Grade (dB) ≤60
Torque 0~30 N.M
Insulation Class F
Insulation voltage 0 ~ 550Vac/1mA/1sec
IP65
CE/EN61000/EN60950/ISO90001
Nanjing Yuanlang Electronic Technology Development Co., Ltd,founded in 2005, is a manufacturer of large-scale medical equipment. We have strong product development and manufacturing capabilities. Our main products are
electric wheelchair
series,
electric wheelchair motor
series,
electric wheelchair joystick controller
series products.We ccould provide customers with a
full range of
electric wheelchair solutions
.
Our company have passed
ISO9000 quality system certification
and
ISO13485:2003
quality system certification. Our products have passed the test of Chinese authorities and CE certification of the European Union.They are popular with customers in Europe, America and Southeast Asia. We are always ready to
provide customized solutions
for our customers.
We will continue to be the leader of
China's rehabilitation equipment industry
with the spirit of
innovation
,
responsibility
and
dedication
.
Packaging Detail:
Each electric wheelchair brushless motor and controller is packaged in single package size:
controller:340*280*120mm; motor: 500*260*210mm
1. We provide our customers with a full range of accessories for power wheelchairs, including brushless motors, joystick controllers, frames, batteries,chargers.seat cushions, front and rear wheels and more.
2. We also provide customers with frame spraying, baking varnish and initial installation services. It is convenient for power wheelchair manufacturers to conduct one-stop procurement and production.
