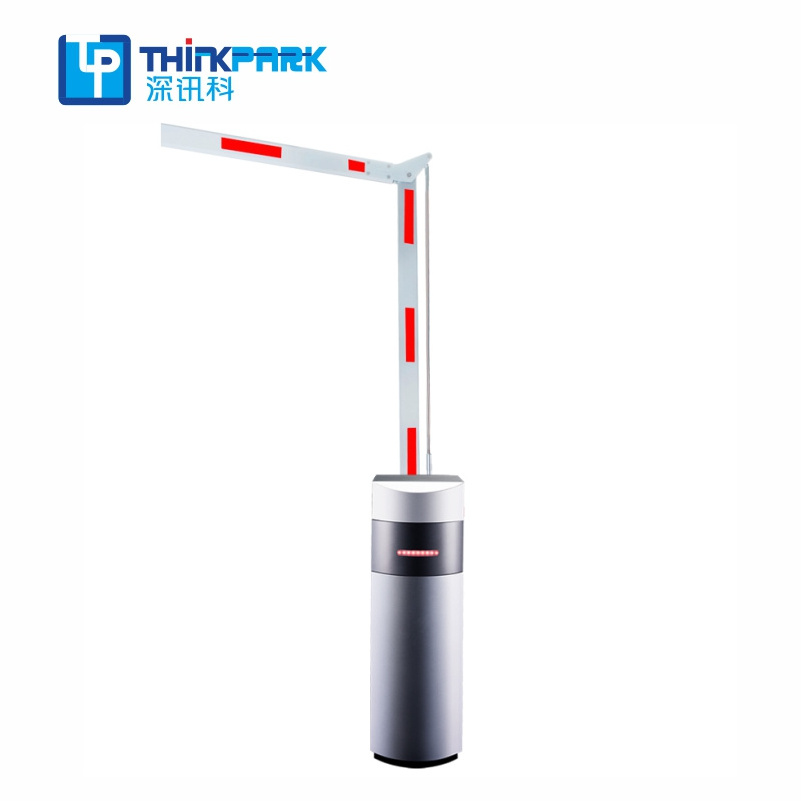

Strong Durable Affordable Thinkpark 24V DC Brushless Folding Arm Barrier Gate for Underground Parking Lot

Strong Durable Affordable Thinkpark 24V DC Brushless Folding Arm Barrier Gate for Underground Parking Lot

FOB Reference Price: Get Latest Price

≥1 Sets

US $265

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Speed:: 1.5s-6s

Color:: Agate Black+Silver Gray

Surface treatment:: Galvanized + Powder Coated

Keyword:: 24V DC brushless barrier gate

Size:: 340*345*1030mm

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Thinkpark

Product name:: Barrier Gate

Speed:: 1.5s-6s

Color:: Agate Black+Silver Gray

Surface treatment:: Galvanized + Powder Coated

Keyword:: 24V DC brushless barrier gate

Size:: 340*345*1030mm

24V DC BRUSHLESS BARRIER GATE

Our most advanced DC Motor Barrier Gate Ever.

SXK-D01B DC brushless barrier gate is carefully designed and manufactured by Thinkpark.

The product is driven by a brushless DC motor, which runs stable in operation, low noise, adjustable lift/drop speed, diversified control system interfaces, simple and fast parameter setting. The equipment adopts 24V safety voltage, safe and reliable, the movement is made of aluminum alloy die-casting, with reliable mechanical strength and beautiful appearance. It is widely used in various parking lots for 24/7 use.

FEATURES

* Inbuilt red/green LED signal and streamlines design, the overall appearance is dignified and atmospheric. * Brushless DC motor, adjustable lift/drop speed, gate-in-position buffer design, smoother operation and quieter motor. * 24V safety voltage, more guarantee for personal safety. * Worm gear transmission mechanism, low noise, long operating lifetime. * The main body of the movement is made of aluminum alloy, manufactured by die-casting,with reliable mechanical strength, beautiful-looking appearance, precise size and good heat dissipation. * Using gear reduction transmission, high transmission efficiency, low power output loss. * 1.5-6 seconds speed control * When the barrier falls, it will automatically return when it encounters obstacles. The anti-smashing force can be adjusted * With extra backup power supply, automatic gate open can be realized when power is off. * Low temperature antifreeze design to ensure normal operation of the equipment in an environment of -40℃. * 24V backup power supply optional

Product Description

Specification

Model No.:	SXK-D01B
Working Temperature:	-40~75℃
Input Voltage:	AC200~240V
Working Voltage (Control Panel):	DC24V, 7.5A
Output Power:	180W
Surface treatment:	Agate Black+Silver Gray
Arm Length:	2~6m
Motor speed:	780r/Min no-load, 600r/Min rated
Insulation Grade:	F
Remote Control Distance:	≥30m
Dimensions:	3403451030mm

Highlights
Gate open/close time Adjustment	YES
Gate open/close Speed Adjustment	YES
Gate-in-position Sensitivity Adjustment	YES
Anti-Smashing Sensitivity Adjustment	YES
Anti-Smashing Strength Adjustment	YES
Motor Strength Adjustment	YES
Gate Position Adjustment	YES
Test Mode Adjustment	YES
Intelligent Obstacle Return	YES
Red/Green Light	YES
Power off and gate opening	Power off and gate opening

Speed Arm Type	Arm Length
Speed Arm Type	Boom Arm Type	≤3m	≤4m	≤4.5m	≤5m	≤6m
Straight Arm	1.5S	3S	4S	5S	6S
Folding Arm	3S	4S	5S	6S
Two Fencing Arm	4S	5S	6S
Three Fencing Arm	5S	6S

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packing Accessories

Item	Spec.	Quantity	Unit	Application
Screws, Nuts, Flat Pad	M12*70	2	sets	Fixing the boom
Boom Fixing Bar		1	pcs	Fixing the boom
Boom Holder Plastic Cover		1	sets	Optional
Cabinet Fixing Bar		2	pcs	Fixing the cabinet
Expansion Screws	M16*150	4	sets	Fixing the cabinet
Support Post		1	pcs	Optional
Radio Emitter		1	pcs	Optional
Keys		2	pcs	For Cabinet door
Remote Control Unit		2	pcs
Manual		1	pcs	Electronic manual

FAQ

24V DC Road Barrier Gate Controller Interface Explanation

Item	Description
Wire Control Interface	This interface is available for parking system, also available for external controller to control barrier gate. UP: Short circulate "UP" and "GND" Down:Short circulate "Down" and "GND" Stop: Short circulate “Stop” and “GND”
Anti-smashing Interface	Infrared Photocell: boom will lift up when short circulate “Infrared photocell interface" and “GND” during boom falling down. Loop Detector: boom will lift up when short circulate “loop detector interface” and “GND” during boom falling down; when boom moves to up limit position, boom will fall down after these two interfaces disconnected.
Relay Output Interface	The relay output can be set to meet different application requirements by setting the output mode. For details, please refer to item H-16 of advanced settings.
DC12VPower Output	Provide lA current output, available for radar or small light strips.
Indicator	Indicating barrier boom and motor running situation

"Regular Menu" Command List

Menu	Function	Default	Range	Remark
F-00	Boom Up Speed	40	10-100	The larger the value, the faster the boom up speed
F-01	Boom Down Speed	40	10-100	The smaller the value, the faster the boom down speed
F-02	Boom Up deceleration position	60	45-80	The angle at which也e boom up starts to decelerate, unit: degree
F-03	Boom Down deceleration position	40	10-60	The angle at which the boom down starts to decelerate, unit: degree
F-04	Low-speed working angle of boom up	90	45-100	The angle of the last section of low-speed zone during boom up
F-05	Low-speed working angle of boom down	30	0-45	The angle of the last section of low-speed zone during boom down
F-06	Boom up limit position speed	5	1-100	Boom up limit position speed
F-07	Boom down limit position speed	3	1-100	Boom down limit position speed
F-08	Horizontal position adjustment	15	1-255	Adjustment horizontal position of the barrier gate
F-09	Vertical position adjustment	6	1-255	Adjustment the vertical position of the barrier gate
F-10	Delay auto-close time	0	0-255	Auto drop off time when no car passes, unit: second
F-11	Open in place Lock time	0	0-255	Lock the gate for a period of time after opening in place, unit: second
F-12	Close in place Lock time	0	0-255	Lock也e gate for a period of time after closing in place, unit: second
F-13	Power-on self-learning speed	20	8-80	Find up and down limit at this speed
F-14	Remote control Learning	0	0-60	Learning remote control
F-15	Auto-reversing on obstruction	10	1-40	Obstruction response time, unit: 0.05 second

Warranty and Service

* Free service is offered for component parts in one year warranty time. (not includes the barrier boom and remote control units) * Lifetime service with charge accordingly. * Technical questions are supported. * The below items and situations are not included in the range of free service:

- The user does not follow the instruction and cause any damage of the product.

- The power supply is not stable, over the range of permitted voltage or not according to safety electric using standard. - The user installs or uses the product in wrong methods，cause damage to the appearance of product. - Natural disaster causes damage to the product. - Warranty time is over

- Service items are out of our promises.

Maintenance * Keep the barrier gate clean.

* Check the joints every month in case of any loose parts.

* Check the balance status of spring after the barrier gate running 300,000 times, and readjust the balance. change new springs after running 500,000 times( or 12 months), to avoid spring breaking due to excessive fatigue.

* Check the easily worn-out parts every half year and renew it.

* Remote control distance will be shortened or not work in case like big object screening, battery exhausting, extreme weathers.
