Quick Details
-
Brand Name:
-
Taidacent
-
Theory:
-
ac current sensing
-
Output:
-
switching signal output
-
Description:
-
overcurrent protection circuit
-
Working voltage:
-
DC5V/12V/24V
-
Working current:
-
less than 20mA
-
Working frequency:
-
20Hz to 400Hz
-
Max hole wire size:
-
5.2mm
-
Install hole:
-
wire hole 3mm, hole space 52.5mm
-
Working temperature:
-
-40C to 85C, 0 to 95%
Quick Details
-
Usage:
-
ac leakage current meter tester
-
Model Number:
-
overcurrent protection relay module ac current
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Theory:
-
ac current sensing
-
Output:
-
switching signal output
-
Description:
-
overcurrent protection circuit
-
Working voltage:
-
DC5V/12V/24V
-
Working current:
-
less than 20mA
-
Working frequency:
-
20Hz to 400Hz
-
Max hole wire size:
-
5.2mm
-
Install hole:
-
wire hole 3mm, hole space 52.5mm
-
Working temperature:
-
-40C to 85C, 0 to 95%

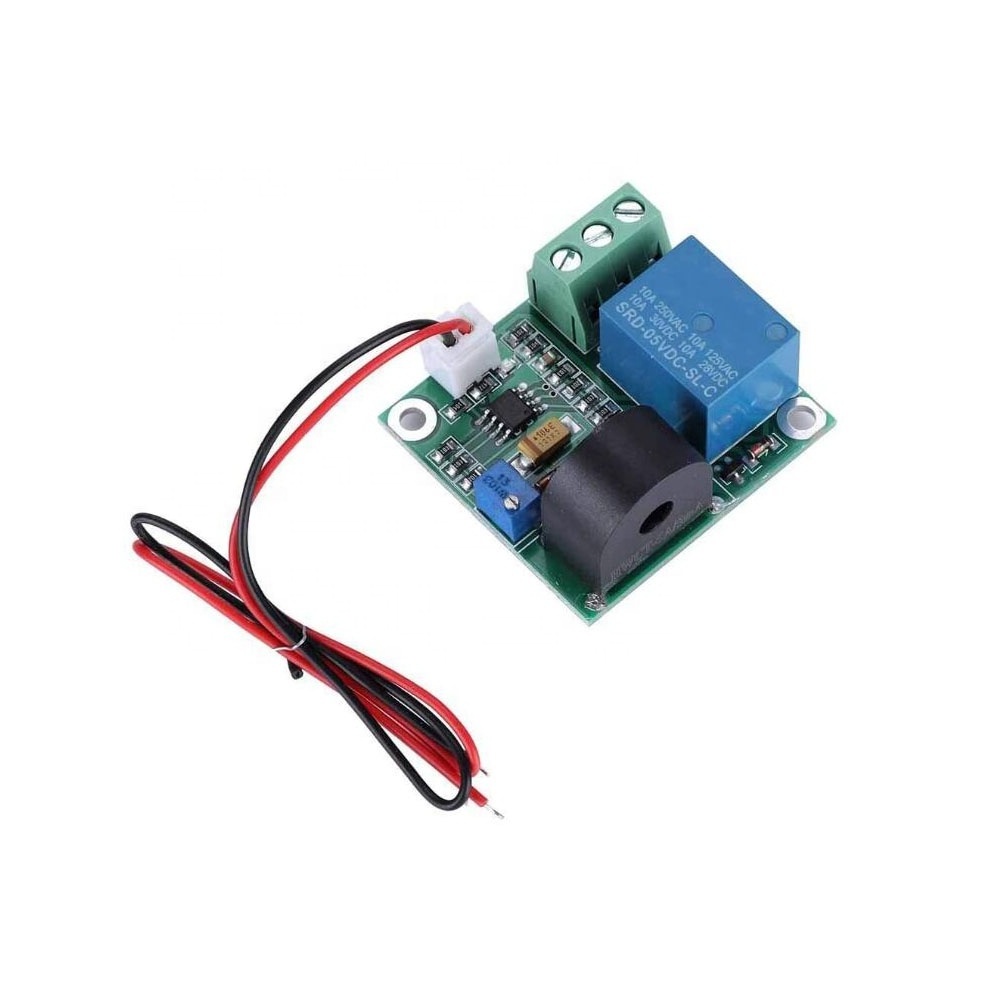

Taidacent 5V 12V 24V DC Over-Current Protection 5A Current Transducer Current Sensor Switch Current Sensing Relay Module
Product Description
The 5A overcurrent protection sensor module uses the current transformer to collect the AC signal to realize the relay signal output after overcurrent in the range of 0-5A. The relay pulls in when overcurrent, and releases when it is not overcurrent. Users can use the relay's C COM, NC, and NO ports to control the connection and disconnection of external circuits, so as to realize the overcurrent protection function.
Specification
|
item
|
value
|
|
Model Number
|
overcurrent protection relay module ac current
|
|
Type
|
Hall Effect Current Sensor
|
|
Usage
|
ac leakage current meter tester
|
|
Theory
|
ac current sensing
|
|
Output
|
switching signal output
|
|
Description
|
overcurrent protection circuit
|
|
Working voltage
|
DC5V/12V/24V
|
|
Working current
|
less than 20mA
|
|
Working frequency
|
20Hz to 400Hz
|
|
Max hole wire size
|
5.2mm
|
|
Install hole
|
wire hole 3mm, hole space 52.5mm
|
|
Working temperature
|
-40C to 85C, 0 to 95%
|
Pin discription
VCC: working voltage positive
GND: negative pole of working voltage
ON: Normally open end, NO and COM are disconnected before the relay is closed, and shorted after it is closed
COM: common terminal, relay common interface
NC: Normally closed terminal, NC and COM are short-circuited before the relay is pulled in, and then disconnected after the pull-
