Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP10KW-OFF
-
Output Voltage (V):
-
110-220V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Product name:
-
Household Hybrid Solar Power System
-
Specification:
-
30KW 50KW 100KW 120KW 250KW 300KW 400KW
-
System Type:
-
Off-grid Hybrid Solar Photovoltaic System
-
Solar panel:
-
Mono Crystalline Perc Solar Panel
-
Inverter:
-
Single Phase/Split Phase/3Phase
-
Battery:
-
Lead Acid/LiFePO4 Lithium Battery
-
Mounting Structure:
-
Customzied
-
Usage:
-
Home Solar Energy Generation
-
Packing:
-
Wooden Box
-
Technical Support:
-
Complete Technical Support
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP10KW-OFF
-
Output Voltage (V):
-
110-220V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Product name:
-
Household Hybrid Solar Power System
-
Specification:
-
30KW 50KW 100KW 120KW 250KW 300KW 400KW
-
System Type:
-
Off-grid Hybrid Solar Photovoltaic System
-
Solar panel:
-
Mono Crystalline Perc Solar Panel
-
Inverter:
-
Single Phase/Split Phase/3Phase
-
Battery:
-
Lead Acid/LiFePO4 Lithium Battery
-
Mounting Structure:
-
Customzied
-
Usage:
-
Home Solar Energy Generation
-
Packing:
-
Wooden Box
-
Technical Support:
-
Complete Technical Support
Products Description
|
System Model
|
SP5KW-HY
|
SP8KW-HY
|
SP10KW3-HY
|
SP12KW3-HY
|
||||
|
PV System Size Nominal (kWp)
|
5.5
|
8.8
|
11
|
13.2
|
||||
|
PV MODULE SPECIFICATIONS (*half cell mono)
|
|
|
|
|
||||
|
Power (W)
|
550
|
|
|
|
||||
|
Vmp (V)
|
41.96
|
|
|
|
||||
|
Dimensions (L x W x H) (mm)
|
2279*1134x35
|
|
|
|
||||
|
Certififications
|
CE / TUV (IEC 61215 & IEC 61730)
|
|
|
|
||||
|
INVERTER SPECIFICATIONS
|
|
|
|
|
||||
|
Inverter Size (kW)
|
5
|
8
|
10
|
12
|
||||
|
Max DC Power (W)
|
6500
|
10400
|
13000
|
15600
|
||||
|
Max DC Voltage (V)
|
500
|
|
1000
|
|
||||
|
MPPT Voltage Range(V)
|
150-425
|
125-425
|
200-650
|
200-650
|
||||
|
Output Voltage
|
220,230Vac
|
|
220/380,230/400Vac
|
|
||||
|
UPS (Off Grid Model with Battery)
|
|
|
|
|
||||
|
Rated Power (VA)
|
5000
|
8000
|
10000
|
12000
|
||||
|
Max DC Charge/Discharge Current(A)
|
120
|
190
|
210
|
240
|
||||
|
Max Power(W)for 10 Seconds
|
7500
|
12000
|
12000
|
18000
|
||||
|
BATTERY BANK SPECIFICATIONS
|
|
|
|
|
||||
|
Battery Type
|
Li-Ion(LifePO4)
|
|
|
|
||||
|
Total Batteries
|
1
|
2
|
3
|
4
|
||||
|
Battery Bank Power(kWh)
|
4.8
|
9.6
|
14.4
|
19.2
|
||||
|
Battery Voltage (V)
|
48
|
|
|
|
||||
|
Battery Current(Ah)
|
100
|
|
|
|
||||
|
Number of PV Modules
|
10
|
16
|
20
|
24
|
||||

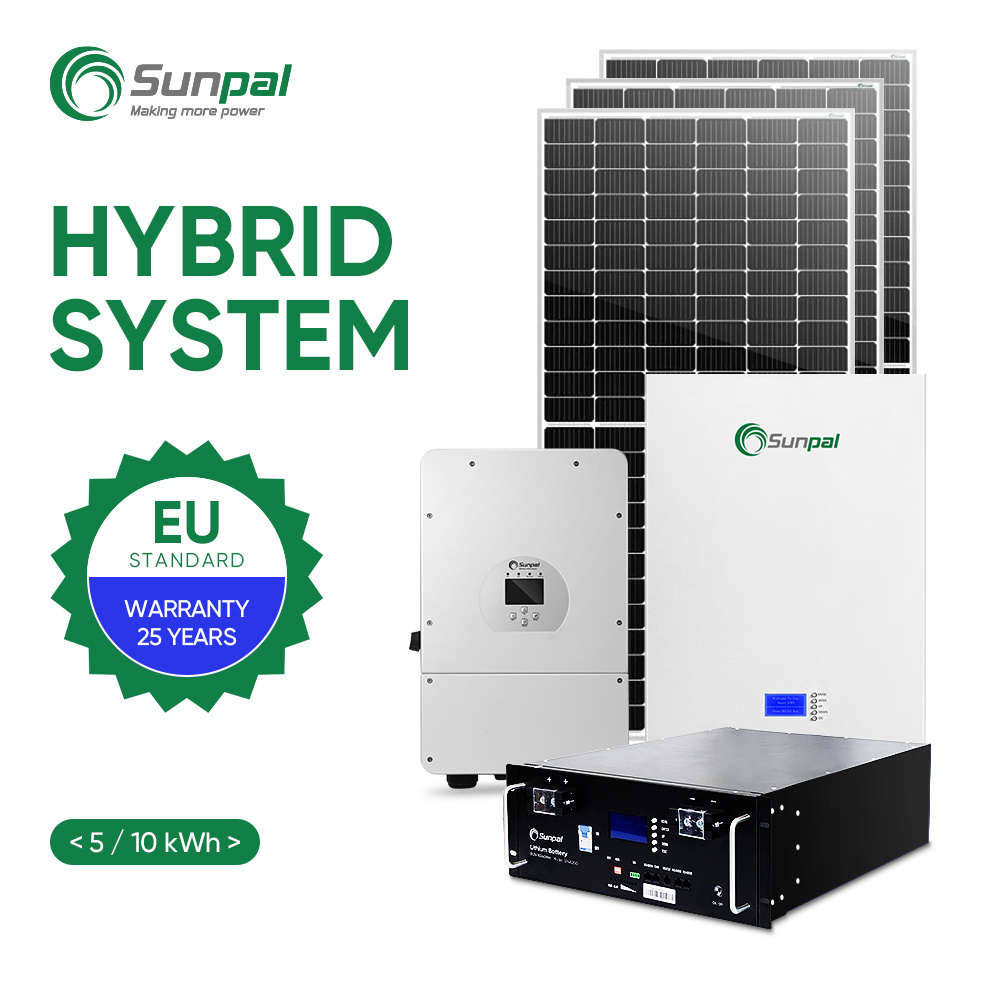

System Components
