Quick Details
-
Frequency:
-
50/60Hz
-
Welding Area:
-
for pvc window
-
Usage:
-
for making pvc window
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
2.5
-
Color:
-
Optional
-
Welded profile height:
-
20-120mm or optional
-
Application:
-
Weld Upvc Window
-
Power supply:
-
220V
-
Machine Type:
-
PVC Window Processing Machine
-
Product name:
-
Windows Welding Machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINGMEI
-
Voltage:
-
220V/380V
-
Frequency:
-
50/60Hz
-
Welding Area:
-
for pvc window
-
Usage:
-
for making pvc window
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
2.5
-
Color:
-
Optional
-
Welded profile height:
-
20-120mm or optional
-
Application:
-
Weld Upvc Window
-
Power supply:
-
220V
-
Machine Type:
-
PVC Window Processing Machine
-
Product name:
-
Windows Welding Machine
Product Description
Specification

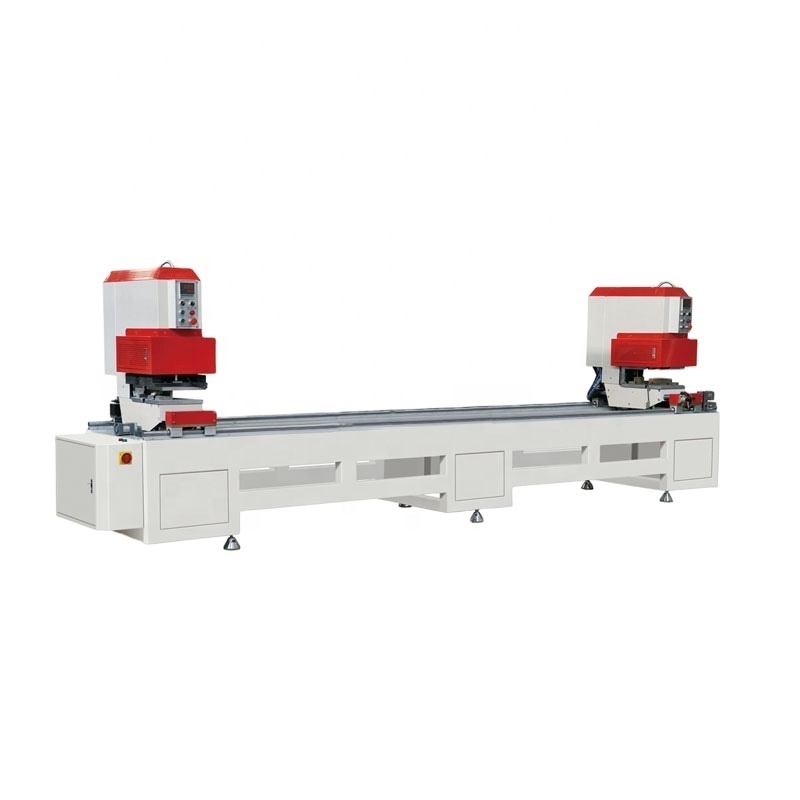

WFH-2-4MD model welding and cleaning (seamless) welding machine for PVC window and door (plastic window and door) can clear welding beading at one time after finishing the welding, and can strictly control the size of welding seam; therefore, after welding of colorful section steel is finished, its surface welding creater looks perfect and top-grade, and its welding strength is higher than that of the original ones.
|
Brand Name
|
MAG MACHINE
|
|
Input voltage
|
380/220V 50Hz
|
|
Input power
|
2.5kw
|
|
Air pressure
|
0.6-0.8MPa
|
|
consumption
|
180L /min
|
|
Welding range
|
420-3500mm
|
|
Welding height
|
10-110mm
|
|
Welding width
|
≤120mm
|
|
Welding mullion width
|
≤110mm
|
|
Overall dimension
|
4300x1050x1800(mm)
|
|
Weight
|
2500kg
|
|
Humidity
|
<80% (no dew)
|
|
Temperature
|
-5~+40
|
|
Welding methods
|
Weld window frame
Weld window-support Weld from free angle Weld from 180 angle Weld profile materials of different heights |
Machine Details:
Welding Samples:
