The furnace lining empolys all fiber structure. The silicate aluminum fiber resists a maximum temperature of 1200℃.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Onsite Condition
-
Dimension(L*W*H):
-
based on furnace size
-
Weight (T):
-
10 T
-
Power (kW):
-
350
-
Furnace type:
-
bogie hearth furnace for heat treatment
-
Energy medium:
-
electric
-
PLC control:
-
Siemens S7-200 PLC
-
refractory lining:
-
silicate aluminum fiber precompressed blocks
-
bogie driving mechanism:
-
reducing gear and motor or manual system
-
bogie protection system:
-
limit switch at both ends
-
furnace door lifting mechanism:
-
electrical hoist or manual system
-
Heating elements:
-
0Cr25AL5
-
valve system:
-
imported brands
-
electrical components:
-
Schneider, CHINT or other quality components
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
WONDERY
-
Voltage:
-
Onsite Condition
-
Dimension(L*W*H):
-
based on furnace size
-
Weight (T):
-
10 T
-
Power (kW):
-
350
-
Furnace type:
-
bogie hearth furnace for heat treatment
-
Energy medium:
-
electric
-
PLC control:
-
Siemens S7-200 PLC
-
refractory lining:
-
silicate aluminum fiber precompressed blocks
-
bogie driving mechanism:
-
reducing gear and motor or manual system
-
bogie protection system:
-
limit switch at both ends
-
furnace door lifting mechanism:
-
electrical hoist or manual system
-
Heating elements:
-
0Cr25AL5
-
valve system:
-
imported brands
-
electrical components:
-
Schneider, CHINT or other quality components

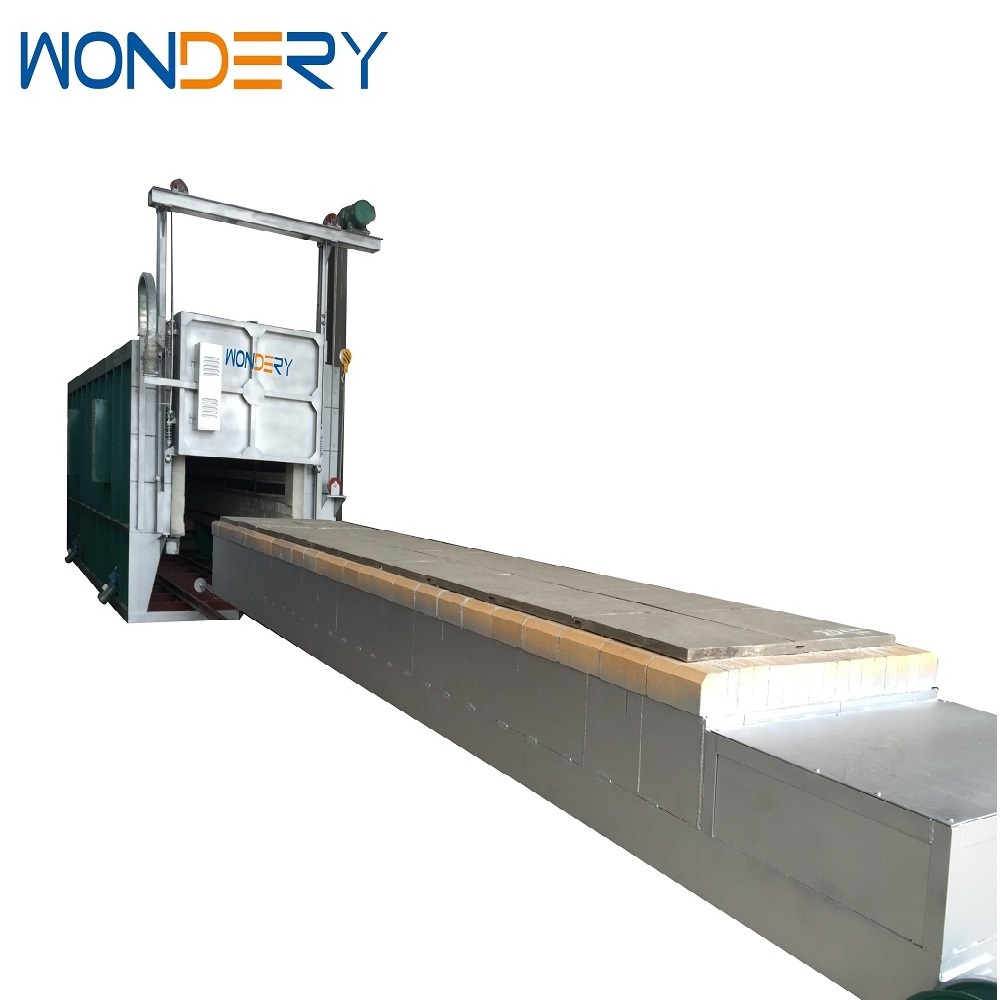

950 Degree Celsius Electrical Bogie Hearth Car Bottom Furnace
Product Application
RTQ Series Trolley Type Resistance Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.
car bottom furnace car bottom furnace car bottom furnace car bottom furnace car bottom furnace
|
SPECIFICATIONS FOR
Electrical Bogie Hearth Car Bottom Furnace
|
|
|
|
|||
|
Temperture contral
system
|
Rated Temperature
|
℃
|
1300
|
|||
|
|
common heating temperature
|
℃
|
400-1250
|
|||
|
|
Furnace body exterior temperature
|
℃
|
≤ 55 + room temperature
|
|||
|
|
Temperature control system precision
|
℃
|
≤±1
|
|||
|
|
Uniformity of furnace temperature
|
℃
|
≤±10
|
|||
|
Mechanical system
|
door lifting mechansim
|
|
electric hoist
|
|||
|
|
bogie driving system
|
|
reducing motor
|
|||
|
|
door and bogie moving speed
|
m/min
|
6-8
|
|||
|
Refractory lining
|
hearth lining
|
|
aluminum silicate fiber
|
|||
|
|
bogie lining
|
|
refractory brick
|
|||
Main Features
1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
Furnace Lining
Heating Element
Name:
0Cr25AL5 resistance spiral-shape alloy resistance strips.
Original:
China
Push Rod Sealing Mechanism
Name:
push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.
Control Cabinet
Name: GGD type electrical control cabinet
Brand: CHINT, SIEMENS, Schneider, Omron, etc.
Original: China, Germany, French, Japan, etc.
|
Model
|
Hearth Size(mm)
L*W*H
|
Rated Power (KW)
|
Empty Furnace Rising Time (h)
|
Max Loading Capacity
|
|
RT2-30-9
|
950*500*450
|
30
|
2.5
|
500
|
|
RT2-45-9
|
1100*600*400
|
45
|
2.5
|
800
|
|
RT2-65-9
|
1200*600*450
|
65
|
2.5
|
1000
|
|
RT2-75-9
|
1500*750*600
|
75
|
2.5
|
1500
|
|
RT2-90-9
|
1800*900*600
|
90
|
2.5
|
2500
|
|
RT2-105-9
|
1800*900*650
|
105
|
2.5
|
3500
|
|
RT2-120-9
|
2000*900*700
|
120
|
2.5
|
4000
|
|
RT2-135-9
|
2000*1000*750
|
135
|
2.5
|
4200
|
|
RT2-150-9
|
2200*1000*800
|
150
|
2.5
|
5000
|
|
RT2-180-9
|
2200*1050*750
|
180
|
2.5
|
6000
|
|
RT2-200-9
|
2400*1200*900
|
200
|
2.5
|
6500
|
|
RT2-220-9
|
2500*1300*900
|
220
|
2.5
|
7000
|
|
RT2-240-9
|
2500*1400*900
|
240
|
2.5
|
8000
|
|
RT2-250-9
|
2800*1500*900
|
250
|
2.5
|
9000
|
|
RT2-280-9
|
3000*1500*950
|
280
|
2.5
|
10000
|
|
RT2-300-9
|
3000*1530*950
|
300
|
2.5
|
11000
|
|
RT2-320-9
|
3200*1530*950
|
320
|
2.5
|
12000
|
|
RT2-350-9
|
3500*1500*1200
|
350
|
2.5
|
15000
|
|
RT2-380-9
|
4000*1500*1200
|
380
|
2.5
|
18000
|
|
RT2-400-9
|
4500*1500*1200
|
400
|
3
|
20000
|
|
RT2-420-9
|
4500*1600*1200
|
420
|
3
|
22000
|
|
RT2-450-9
|
5200*1500*1200
|
4450
|
3
|
25000
|
|
RT2-480-9
|
5500*1500*1200
|
480
|
3
|
28000
|
|
RT2-500-9
|
6000*1500*1200
|
500
|
3
|
30000
|
|
RT2-540-9
|
6500*1800*1200
|
540
|
3
|
35000
|
|
RT2-600-9
|
7000*1800*1200
|
600
|
3
|
38000
|
|
RT2-650-9
|
7200*2000*1200
|
650
|
3
|
40000
|
|
RT2-700-9
|
7500*1800*1800
|
700
|
3
|
42000
|
|
RT2-750-9
|
8000*2000*2000
|
750
|
3
|
48000
|
|
RT2-800-9
|
8500*2000*1500
|
800
|
3.5
|
52000
|
|
RT2-900-9
|
9000*2200*1600
|
900
|
3.5
|
60000
|
