Quick Details
-
Communication:
-
433MHz RFID
-
Control:
-
Multiple stations in one group control through internet or LAN
-
Safety:
-
Encryption to ensure RF data security
-
Control Quantity:
-
>20,000 ESLs controlled by one station
-
Size:
-
120*120*30mm(L x W x H)
-
Interface:
-
TCP/IP Protocol through standard Ethernet Cable or Wi-Fi(Optional)
-
Coverage:
-
>15m transmission radius
-
Transmission:
-
Low RF transmission error rate (typical <1/10,000)
-
Power:
-
Input DC 5V,≤200mA or POE supported
-
Indicator:
-
Working status indication:Red,Yellow,Blue
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Suny
-
Model Number:
-
ETAP01R1
-
Communication:
-
433MHz RFID
-
Control:
-
Multiple stations in one group control through internet or LAN
-
Safety:
-
Encryption to ensure RF data security
-
Control Quantity:
-
>20,000 ESLs controlled by one station
-
Size:
-
120*120*30mm(L x W x H)
-
Interface:
-
TCP/IP Protocol through standard Ethernet Cable or Wi-Fi(Optional)
-
Coverage:
-
>15m transmission radius
-
Transmission:
-
Low RF transmission error rate (typical <1/10,000)
-
Power:
-
Input DC 5V,≤200mA or POE supported
-
Indicator:
-
Working status indication:Red,Yellow,Blue

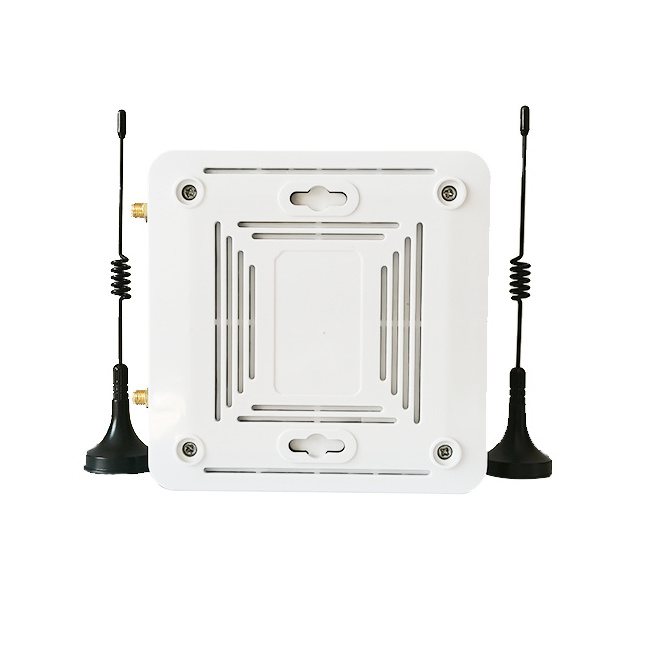

Suny Electronic Shelf Labels System Base Station
How Does ESL Work?
The software sends the data to base station through Ethernet, and the base station transmits the information and send to the tags by 433MHz(Wireless).
Product Description
433MHz Technology
What are the advantages of 433MHz?
|
Technology
|
Transmission Distance
|
Penetration
|
Anti-interference
|
Transmission Speed
|
Security
|
|
2.4 GHz
|
10~15m
|
Medium
|
Weak
|
Fast
|
Low
|
|
Infra-red
|
3~5m
|
Weak
|
Weak
|
Slow
|
High
|
|
433 MHz(RFID)
|
15~25m
|
Strong
|
Strong
|
Medium
|
High
|
|
NFC
|
3cm
|
None
|
Strong
|
Medium
|
High
|
|
Bluetooth
|
5~10m
|
Weak
|
Weak
|
Medium
|
High
|
Cover Range
A base sation can control 65,000 pieces of electronic shelf labels in an circle area whose radius is 70meters(max, in open area), however, in real cases, its coverage would be around 16~24 meters, which means it can cover an area of 800~1800 square meters.
|
Specification
|
|
|
|
|
||||
|
Parameter
|
|
Value
|
|
|
||||
|
Frequency
|
|
433MHz
|
|
|
||||
|
Protocol
|
|
Private
|
|
|
||||
|
Size
|
|
120*1210*30(L*W*H)
|
|
|
||||
|
Operating Voltage
|
|
DC 5V, ≤200mA
|
|
Requires stable power, other type of power source is not recommended.
|
||||
|
Weight
|
|
160g
|
|
|
||||
|
Data Interface
|
|
Standard Network Cable Interface
|
|
|
||||
|
|
|
Wi-Fi Network Interface
|
|
|
||||
|
Indicator
|
|
Working Status Indication
|
|
|
||||
|
Environment
|
Operating Temperature
|
-10℃~55℃
|
|
|
||||
|
|
Storage Temperature
|
-20℃~70℃
|
|
|
||||
|
|
Operate Humidity
|
5%~80%(No Condensation)
|
|
|
||||
|
|
Storage Humidity
|
5%~85%(No Condensation)
|
|
|
||||
Application Area
Packaging and Shipping
Shipped by...
About Us
F A Q
Q1: What composed in the whole esl system?
A1: It is composed by ESL tags, base stations, software and relevant accessories.
ESL Tags: 1.54'' , 2.13'' ,2.9'' , 4.2'',7.5'' , 11.6'' with white-black-red color, battery replaceable.
Base Station: Connect the ESL tags to the whole system.
PDA Scanner: Bind ESL tags and commodities.
Software: Manage ESL system and edit templates.
Accessories: Help ESL tags installed in different places.
A1: It is composed by ESL tags, base stations, software and relevant accessories.
ESL Tags: 1.54'' , 2.13'' ,2.9'' , 4.2'',7.5'' , 11.6'' with white-black-red color, battery replaceable.
Base Station: Connect the ESL tags to the whole system.
PDA Scanner: Bind ESL tags and commodities.
Software: Manage ESL system and edit templates.
Accessories: Help ESL tags installed in different places.
Q2: Is it possible for us to use our software to control your electronic shelf label?
A2: No, it isn't possible for you to use your software control our ESL tags, but we can provide the SDK for you,so you can use our SDK to develop your own software.
A2: No, it isn't possible for you to use your software control our ESL tags, but we can provide the SDK for you,so you can use our SDK to develop your own software.
Q3: How many price tags supports by one base station?
A3: A base station supports 65,000 pieces of price tag in its coverage which is R=15~24 m, and it can cover an area of 700~1800 square meters(7500~19500 square feet)
A3: A base station supports 65,000 pieces of price tag in its coverage which is R=15~24 m, and it can cover an area of 700~1800 square meters(7500~19500 square feet)
Q4: Can we make integration with our system?
A4: eRetail can be deployed on local server or cloud server, meanwhile, it can integrate with Database/POS/CRM/ERP.
A4: eRetail can be deployed on local server or cloud server, meanwhile, it can integrate with Database/POS/CRM/ERP.
Q5: Does your Electronic Shelf Label can display different languages?
A5: There is no limitation of the display languages. Any language is supported.
A5: There is no limitation of the display languages. Any language is supported.
