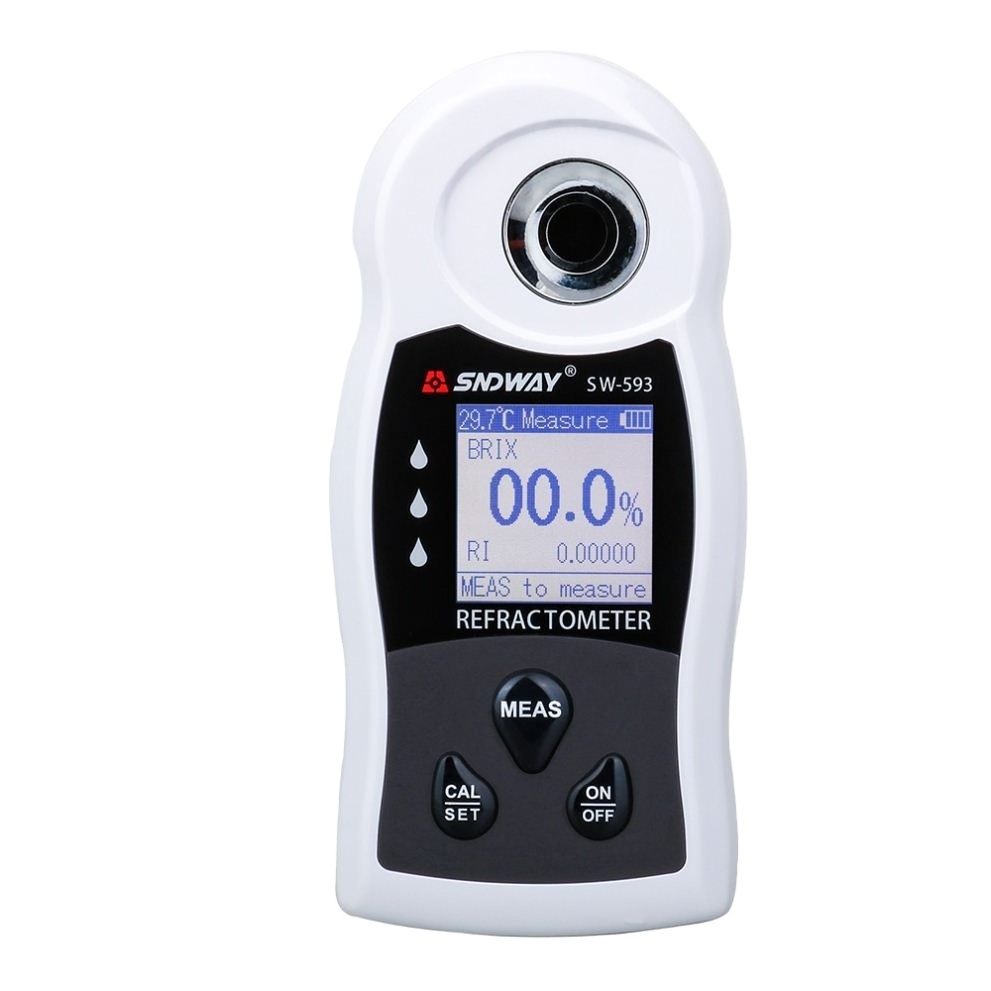

SNDWAY SW-593 Digital Refractometer Sugar Brix Meter Saccharimeter

Model Name

SW-593

Range

0-55%Brix

Temperature Compensation

10℃ ~ 40℃

Ambient Temperature

10℃ ~ 40℃

Full of Electricity

About 20000 times

Resolution

0.1%Brix

Accuracy

±0.2%Brix/±1℃

Battery

2x1.2V AA 2100mAh NiMH battery

Product size

300g/120x55x30mm

Package size

330g/170x115x65mm

Package Contents

1*SW-593 Device,1*USB Charging, 1*User's Manual, 1*Lens Cleaning Cloth
2*1.2V AA Rechargeable Battery, 1*Pipet

Status Bar Notice

Reason

Please cover the container with your hands.

External light is too strong to affect measurement

High temperature affects measurement!

The temperature on the prism is higher than the measuring range

Low temperature affects measurement!

The temperature on the prism is below the measuring range

Please pour the solution into the container.

No solution or too little solution in container

Please pour clean water into the container.

No water or too little water in the container

Out of range!

Excessive concentration

Low battery!

Charging with 5V charger or computer USB

Please contact the Maintenance Center.

Components are possibly damaged

Measure whether the clean water or pure water is 0.0% before using,and if it is not 0.0%, it will be zeroed first.
1, Keep about 1mm between dripped water or pure water and the top of the measuring slot, and the capacity is about 0.3ml
2, Press “MEAS” key
3, Check if the measured value is 00.0%
4, If the value is not 00.0%,press the zero key to reset

Wide Application

Refractometer can measure the sugar concentration in fruit, beverage and
vegetables,can be used in beverages quality management, food industrial
sector, agricultural production scientific research.
It can also be used in the manufacture of beer and wine.

Multifunction


Automatic Temperature compensation 10℃ ~ 40℃
Refractive index Resolution: 0.1%Brix Accuracy: ±0.2%Brix/±1℃
Sugar Concentration measurement with Range 0-55% Brix

IP65 Dustproof & Waterproof
Sample slot design, Corrosion resistant
Larger LCD Display with Backlight
Refractive prism, high resolution and accuracy

Rechargeable Battery
2 x 1.2V AA 2100mAH NiMH Battery
Low power consumption
Measure 20000 times when fully charged
