1.Used for connecting cutting on or off the applicancate circuit with AC or DC low-voltage
2. The Single pole of plug puller out should be not less than 4N
3. The Temperature rise of conductive part should don't exceed
4. The metal shell should have reliable earthing device
5. The screw of cover plate is M6 Locking screw
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Gold
-
Function:
-
Explosion Proof Switch control
-
Material:
-
Brass
-
Certificate:
-
CE CCS
-
Ex-mark:
-
Exd II C T 6
-
Payment Terms:
-
T/T WEST UNION
-
MOQ:
-
1PC
-
Shipment method:
-
express or air transportation
-
Packing:
-
1pc/carton
-
Other similer model:
-
HH203-1/2/4/5
Quick Details
-
Max. Current:
-
16A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Color:
-
Gold
-
Function:
-
Explosion Proof Switch control
-
Material:
-
Brass
-
Certificate:
-
CE CCS
-
Ex-mark:
-
Exd II C T 6
-
Payment Terms:
-
T/T WEST UNION
-
MOQ:
-
1PC
-
Shipment method:
-
express or air transportation
-
Packing:
-
1pc/carton
-
Other similer model:
-
HH203-1/2/4/5
Product Description

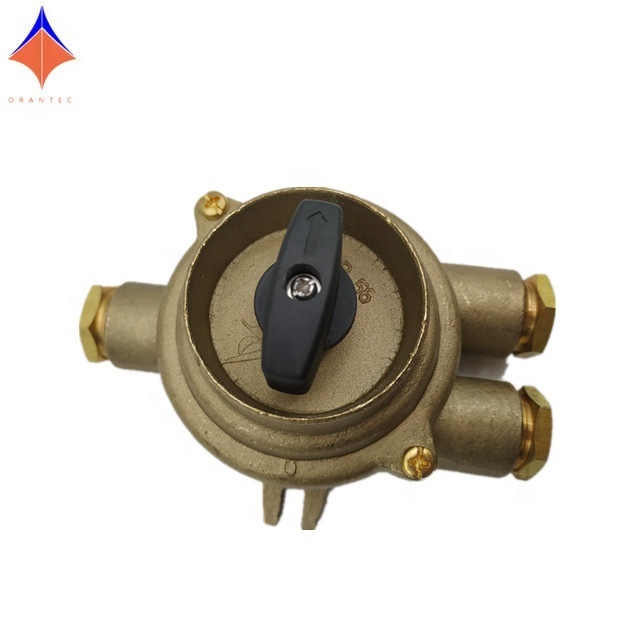

Marine Brass Switch HH302-3 Explosion Proof Switch
|
Other Important Details
|
|
|
|
Adopt Standard
|
DIN89270
|
|
|
CODE
|
1133/3
|
|
|
Weight
|
1.1kg
|
|
|
Cable Type
|
General
|
|
|
Protection Class
|
IP56
|
|
|
Voltage
|
250V
|
|
|
Current
|
10A/16A
|
|
|
Average diameter
|
Φ14-Φ16
|
|
|
CODE
|
1133/3
|
|
|
|
|||
|
MODEL
|
HH302-1
|
HH302-2
|
HH302-3
|
HH302-4
|
|||
|
FORM
|
0=
|
-0-
|
-0=
|
=0=
|
|||
|
VOLTAGE
|
250V/16A/10A
|
|
|
|
|||
|
Ex-mark
|
Exd II C T 6
|
|
|
|
|||
|
Protection class
|
IP56
|
|
|
|
|||
|
Material
|
copper
|
|
|
|
|||
|
Average diameter
|
Φ14-Φ16
|
|
|
|
|||
|
Weight
|
1kg
|
1kg
|
1.10kg
|
1.1kg
|
|||
-
Technical Chracteristic
Detailed Images
This series switch with CCS and CE certificate
Size Information
MODEL AND HOLES
|
Model
|
HH302-1
|
HH302-2
|
HH302-3
|
HH302-4
|
HH302-5
|
|
1Holes
|
1
|
2
|
3
|
4
|
5
|
Related Products
Packing&Shipping
This series product usually packed by carton
