Quick Details
-
Detection Angle:
-
360
-
Power Source:
-
110-240V
-
Power Frequency:
-
50/60Hz
-
Power Consumption:
-
0.45W (work), 0.1W (static)
-
Rated Load:
-
800W (incandescent lamp)/ 300W (energy-saving lamp)
-
Detection Range:
-
<6m (<24°)
-
Time Delay:
-
10sec±3sec - Max: 7min±2min
-
Ambient Light:
-
<3-2000LUX (adjustable)
-
Working Temperature:
-
-20~+40°
Quick Details
-
Use:
-
Infrared Motion Sensor Automatic ON/OFF Switch for Light
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
360 Degree Pir Motion Sensor With Light Sensor
-
Detection Angle:
-
360
-
Power Source:
-
110-240V
-
Power Frequency:
-
50/60Hz
-
Power Consumption:
-
0.45W (work), 0.1W (static)
-
Rated Load:
-
800W (incandescent lamp)/ 300W (energy-saving lamp)
-
Detection Range:
-
<6m (<24°)
-
Time Delay:
-
10sec±3sec - Max: 7min±2min
-
Ambient Light:
-
<3-2000LUX (adjustable)
-
Working Temperature:
-
-20~+40°

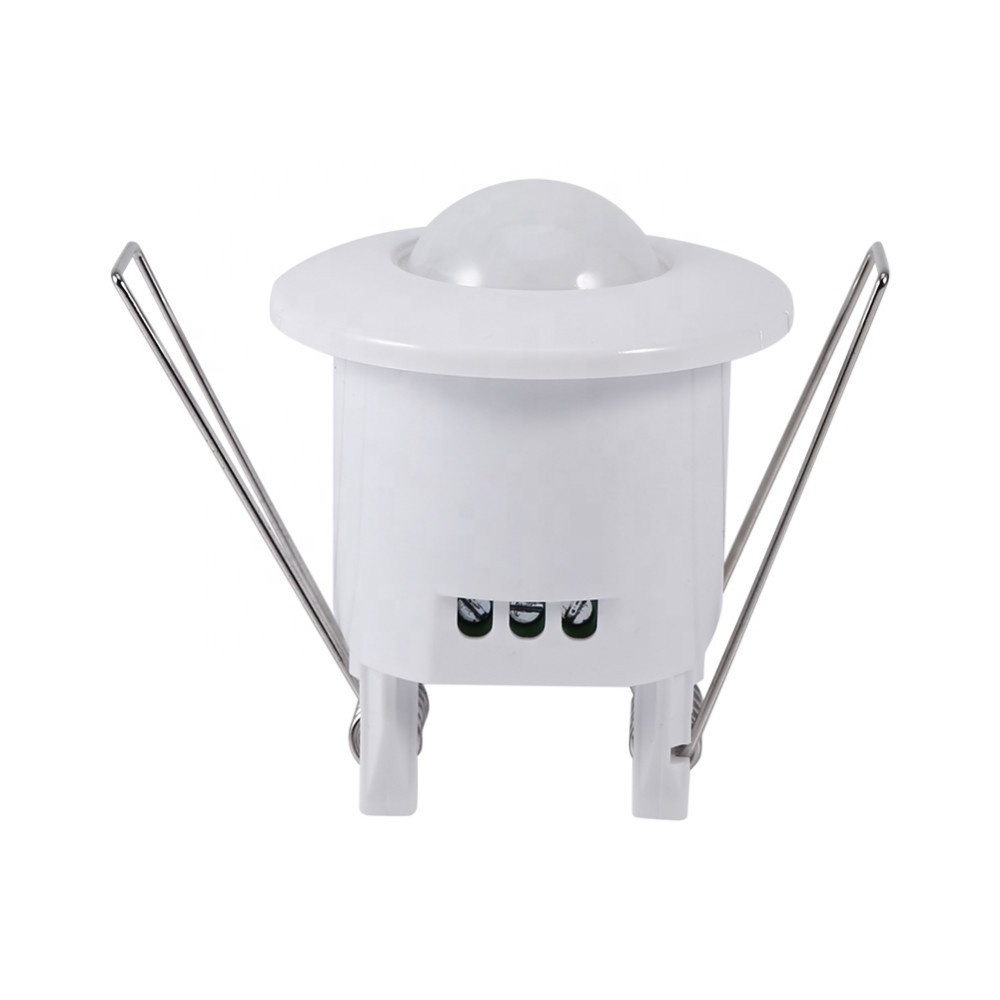

Outdoor Ceiling Mounted Motion Detector, 360 Degree Pir Motion Sensor With Light Sensor
Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing way.
Time-delay is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic (Set time) .
Time-delay adjustment: it can be set according to your desire. The minimum is 10±3 sec; the maximum is 7±2min.
Power Source: 220 -240V AC
Detection Range: 360°
Working Temperature: -20 - 40 deg C,
Working Humidity: <93%RH
Ambient Light: 3-2000LUX (adjustable)
Time-Delay: min: 10sec±3sec - Max: 7min±2min
Installation Height: 2.2-4m
Power Consumption: 0.45W (work), 0.1W (static)
Rated Load: 1200W (incandescent lamp)/ 300W (energy-saving lamp)
Detection Motion Speed: 0.6 ~1.5m/s,
detection distance: 6m max (24 deg C)
- 1 x Motion Sensor switch
- 1 x User Instruction
♦PACKING: Neutral packing with new carton or according to customer requirments.
♦PAYMENT: T/T,Paypal,West Union,30% deposit, 70% balance before delibery.
♦LEAD TIME: Sample in 3-5 working days and large order in 12-15 working days.
♦TRANSPORT: By DHL/UPS/FEDEX, Air cargo or Sea shipment.
♦PORT OF SHIPMENT: Shanghai,Ningbo,China.
♦MOQ: 10 piece. Providing DISCOUNT and OEM service for large order.
Check below for more information on placing orders:
| 1.Inquiry-Professional quotation. |
| 2.Confirm the price, lead time, quality details, payment term etc. |
| 3.Our sales send the Proforma Invoice with seal. |
| 4.Customer make the payment for deposit and send us Bank receipt. |
| 5.Inform the clients that we have got the payment and begin to produce. |
| 6.Middle Production send photos to show the production line which you can see your products in. Confirm the production and inform the estimated time. |
| 7.End production-Mass production photos send you for approval. You can also arrange third party Inspection. |
| 8.Clients make payment for ballance and Ship the goods.Inform the tracking number and send all the documents for clients custom clearance. |
| 9.Order can be say“finish” when you receive the goods and satisfy with them. |
| 10.Feedback to our about Quality,Service,Market Feedback & Suggestion.And we can do better. |
You can directly make order online or contact me for more details, thanks for cooperation!
