Quick Details
-
Brand Name:
-
chenen
-
Voltage:
-
as requirement
-
Dimension(L*W*H):
-
3500x1200x1350
-
Weight (KG):
-
2300
-
Power (kW):
-
4kw
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Quick Details
-
Wheel Size(mm):
-
200x100x32mm
-
Year:
-
2021
-
Place of Origin:
-
China
-
Brand Name:
-
chenen
-
Voltage:
-
as requirement
-
Dimension(L*W*H):
-
3500x1200x1350
-
Weight (KG):
-
2300
-
Power (kW):
-
4kw
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
Product Description

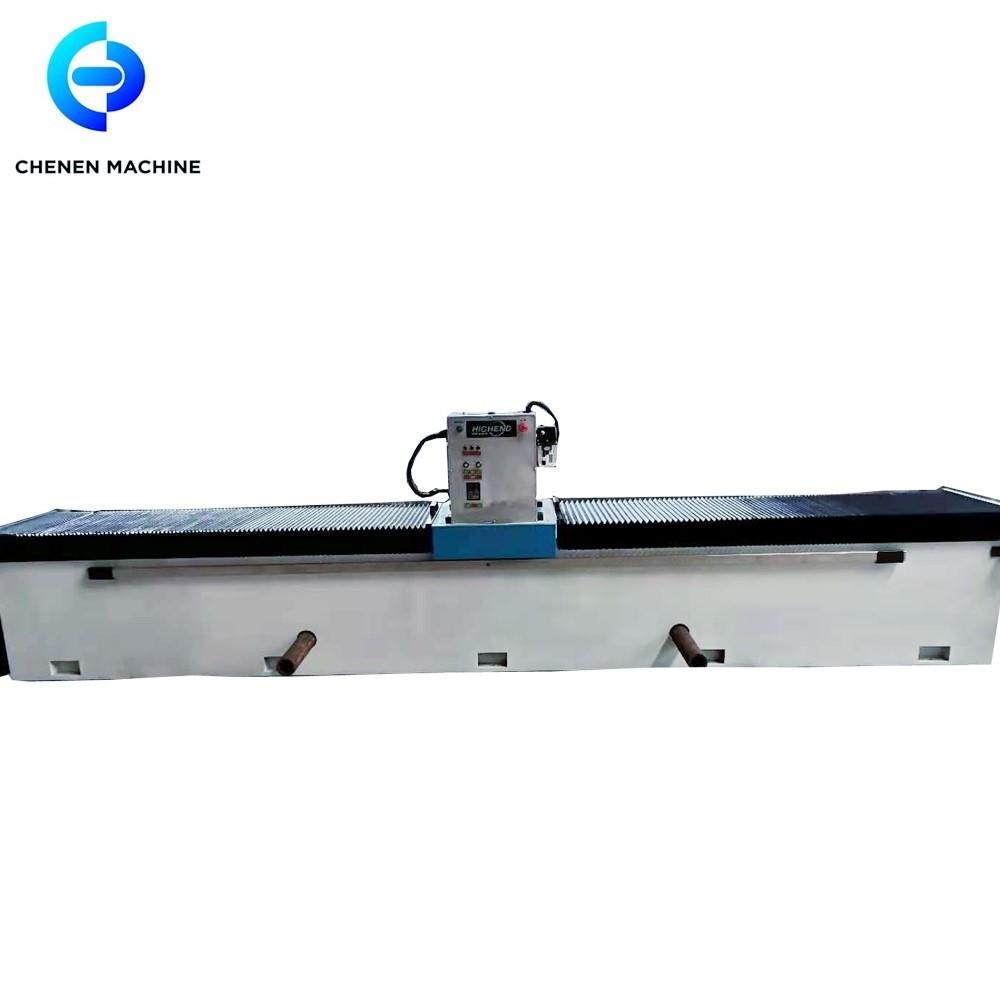

introduce for the knife grinder
1 welded by high quality steel. The machine body do the heating treatment. The surface do the sands blast to anti rust
2 the grinding head lift use the structure as the surface grinder rhombus tapered iron.to make the movement smooth and accuracy
3 the protective cover hole all machine to protect people
4 there is a watch window on the moving platen, for you to easy checking the grinding job
5 the traveling job control by the belt to make the movement more smooth
6 down feed use the ball screw, to make the working accuracy as 0.01.mm/300mm
7 automatic lubrication system
8 job accuracy as 0.002mm
9 the feed job can do by automatic and manual model.
10 the grinding stone with automatic adjust compensation function.
11 automatic lubrication system
2 the grinding head lift use the structure as the surface grinder rhombus tapered iron.to make the movement smooth and accuracy
3 the protective cover hole all machine to protect people
4 there is a watch window on the moving platen, for you to easy checking the grinding job
5 the traveling job control by the belt to make the movement more smooth
6 down feed use the ball screw, to make the working accuracy as 0.01.mm/300mm
7 automatic lubrication system
8 job accuracy as 0.002mm
9 the feed job can do by automatic and manual model.
10 the grinding stone with automatic adjust compensation function.
11 automatic lubrication system
Specification
|
Magnet length
|
3100mm
|
|
Magnet width
|
180mm
|
|
Magnet angle adjust
|
±90º
|
|
Grinding head power
|
4KW/7.5KW
|
|
Travel motor power
|
0.75kw
|
|
Pump power
|
250W
|
|
Total power
|
5.5KW
|
|
Stone speed
|
37m/s
|
|
Grinding motor speed
|
1420r/min
|
|
Max travel speed
|
30m/min
|
|
Stone size
|
Φ200×120
|
|
voltage
|
380V 50Hz
|
|
weight
|
2.2T
|
|
size
|
5300×1100×1400
|
Packing & Delivery
pltwood box
