Quick Details
-
Brand Name:
-
THD
-
Kind:
-
Gas Fired Infrared Burner
-
Working Gas:
-
Natural Gas,liquefied petroleum gas,Propane
-
Working Gas Pressure:
-
3500 to 5000 Pascal
-
Heating Type:
-
Gas fired infrared radiant
-
IR wave range:
-
1.9 to 15 um
-
Burner Surface Temperature:
-
850 Degree Celsius
-
Fits for:
-
bakery industry machine
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Type:
-
Gas Burner
-
Weight (KG):
-
5.9
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Kind:
-
Gas Fired Infrared Burner
-
Working Gas:
-
Natural Gas,liquefied petroleum gas,Propane
-
Working Gas Pressure:
-
3500 to 5000 Pascal
-
Heating Type:
-
Gas fired infrared radiant
-
IR wave range:
-
1.9 to 15 um
-
Burner Surface Temperature:
-
850 Degree Celsius
-
Fits for:
-
bakery industry machine
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Ordinary Product

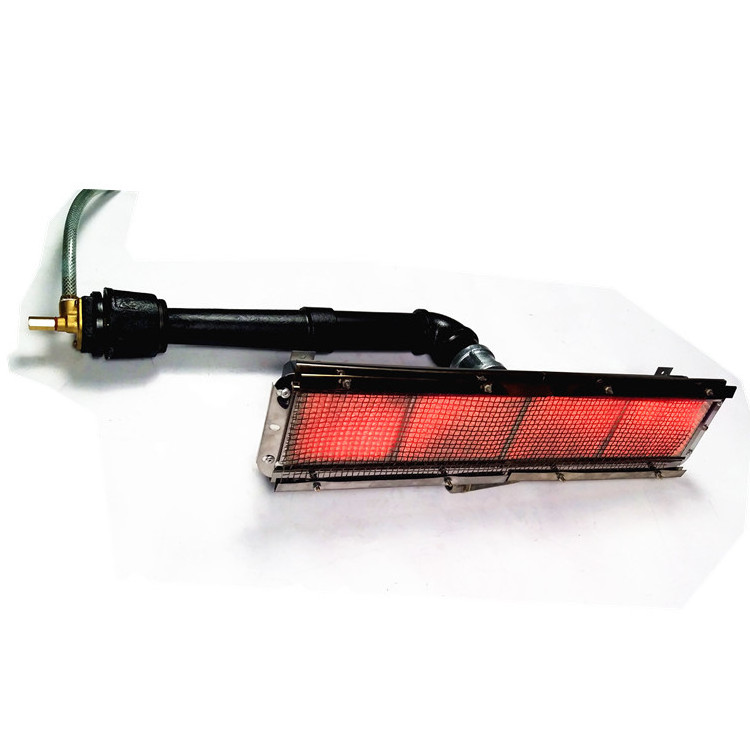

Natural gas fired infrared burner for bakery industry machine.
| Model | Dimension | Net Weight | Working Gas | Material | Heat Output | Gas Consumption | ||
| mm | kg | KW/hour | Kcal/hour | NG(m 3 hour) | LPG(kh/hour) | |||
| HD162 | 570*130*175 | 8 | Natural Gas,liquefied petroleum gas,Propane | Cast Iron Body,cermiac tiles inside | 6.3 | 5400 | 0.49 | 0.45 |
How does the infrared burner work?
Notice:
1.Our infrared burners can make oven reach to max temperature 500 degree Celsius.
2.When the infrared burners makes your oven reach to your max temperature requirement,the temperature control box will control the electric pulse igniter to shut off the solenoid valve,that means there will not be gas consumption.When the oven temperature less than your requirement,solenoid valve will open again,and the the electric pulse igniter makes spark to make the burner work again,cycle it.so the gas consumption in fast less than above format when it is working.
Applications:
Powder coating curing oven.
Paint drying oven.
Latex glove curing oven in Malaysia.
Food processing equipment and machinery.
Textile industry.
Asphalt and thermoplastic paint drying.
Sodium salt drilling aid etc.
We can also supply a complete painting production line.
