Quick Details
-
Rated Lifting Moment:
-
As your demand
-
Max. Lifting Height:
-
4m
-
Span:
-
According to your demand
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Weight (KG):
-
560 kg
-
Main Material:
-
Q235B Mn Steel
-
Electrical:
-
Schneider or Siemens Brand
-
Swing angle:
-
0~360 degree (as your demand)
-
Working Temperature:
-
-25~+40°C
-
Weight overload protection device:
-
Included
-
Current overload protection system:
-
Included
-
GB/T 24001-2004 idt ISO 14001:2004:
-
Pass
-
GB/T 28001-2001, OHSAS 18001:1999:
-
Pass
-
Certificate:
-
CE GOST ISO
-
Product name:
-
jib crane 500kg movable balancing jib crane with electric hoist
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
warehouse, workshop, stock yard
-
Rated Loading Capacity:
-
0.25t-5t
-
Rated Lifting Moment:
-
As your demand
-
Max. Lifting Height:
-
4m
-
Span:
-
According to your demand
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Weight (KG):
-
560 kg
-
Main Material:
-
Q235B Mn Steel
-
Electrical:
-
Schneider or Siemens Brand
-
Swing angle:
-
0~360 degree (as your demand)
-
Working Temperature:
-
-25~+40°C
-
Weight overload protection device:
-
Included
-
Current overload protection system:
-
Included
-
GB/T 24001-2004 idt ISO 14001:2004:
-
Pass
-
GB/T 28001-2001, OHSAS 18001:1999:
-
Pass
-
Certificate:
-
CE GOST ISO
-
Product name:
-

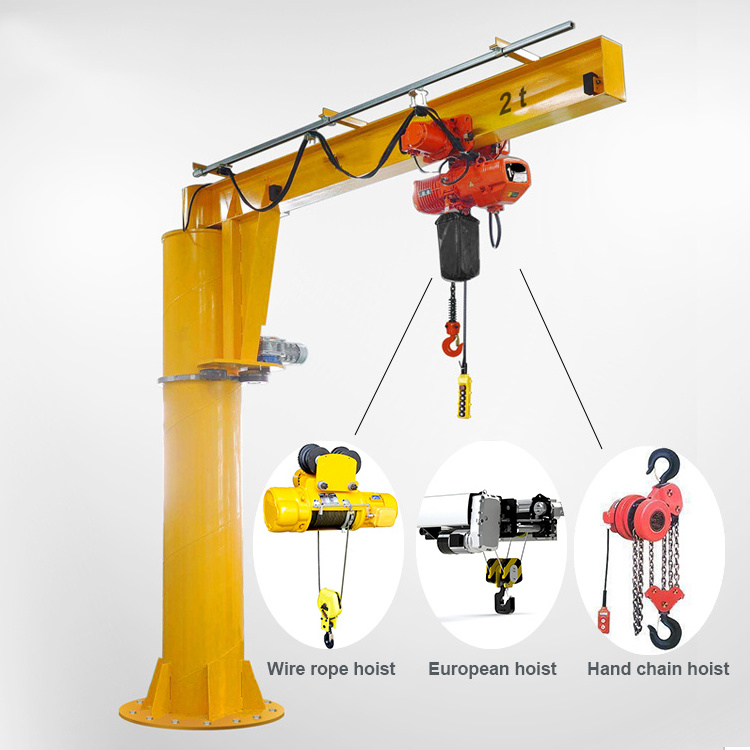

jib crane 500kg movable balancing jib crane with electric hoist
Product Description
Column Slewing Mounted Jib Crane are versatile, efficent and cost effective solutions for moving materials within an individual workstation, for transferring materials from work area to work area or for serving as auxiliary lifting devices under overhead tadano cranes.
Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills,muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills,muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
Features:
* Capacities from 250 kgs to 5 Ton
* Standard span upto 20 feet
* 360 degree rotation
* Designed for permanent concrete foundation
* Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
* The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing
* The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
* Standard span upto 20 feet
* 360 degree rotation
* Designed for permanent concrete foundation
* Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
* The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing
* The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
|
Type
|
Lifting Weight(t)
|
Max. R (mm)
|
Mix. R (mm)
|
Lifting Height(mm)
|
|
ZB-D0.25-D/S
|
0.25
|
5,000
|
1,000
|
4,000
|
|
ZB-D0.5-D/S
|
0.5
|
5,000
|
1,000
|
4,000
|
|
ZB-D1-D/S
|
1
|
5,000
|
1,000
|
4,000
|
|
ZB-D2-D/S
|
2
|
3,300
|
1,300
|
3,000
|
|
ZB-D2-D/S
|
2
|
5,000
|
1,300
|
4,000
|
|
ZB-D2-D/S
|
2
|
6,000
|
1,500
|
3,500
|
|
ZB-D3-D/S
|
3
|
5,000
|
1,500
|
3,500
|
|
ZB-D5-D/S
|
5
|
4,000
|
1,800
|
3,000
|
