Quick Details
-
Air Pressure(MPa):
-
0.8 MPa
-
Sheet Thickness(mm):
-
0.2 - 2.5 mm
-
Heating Power (kW):
-
40 kW
-
Air Comsumption(L/min):
-
0.01 L/min
-
Water Comsumption(L/min):
-
0.01 L/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACEMIEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7500*2000*2000
-
Weight (T):
-
6 T
-
Name:
-
Extrusion Line
-
Raw material:
-
pp pla Powder
-
Usage:
-
Plastic Thermoforming Machines
-
Inverter:
-
ABB Brand
-
Motor:
-
SIEMENS Brand
-
Contactor:
-
Schneider Brand
-
Temperature control:
-
Omron Brand
Quick Details
-
Max.Forming Height(mm):
-
80 mm
-
Forming Width (mm):
-
780 mm
-
Forming Length (mm):
-
300 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Sheet Thickness(mm):
-
0.2 - 2.5 mm
-
Heating Power (kW):
-
40 kW
-
Air Comsumption(L/min):
-
0.01 L/min
-
Water Comsumption(L/min):
-
0.01 L/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ACEMIEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7500*2000*2000
-
Weight (T):
-
6 T
-
Name:
-
Extrusion Line
-
Raw material:
-
pp pla Powder
-
Usage:
-
Plastic Thermoforming Machines
-
Inverter:
-
ABB Brand
-
Motor:
-
SIEMENS Brand
-
Contactor:
-
Schneider Brand
-
Temperature control:
-
Omron Brand
Products Description
Automatic Conveyor
Fan power: 5.5kw Maximum loading capacity: (kg/h) 800-1000
Single Screw Extruder
37kw Siemens motor
Double alloy screw material
Melt pressure display
PLC temperature control, 15-inch touch screen
Double alloy screw material
Melt pressure display
PLC temperature control, 15-inch touch screen
High Speed Forming
Setting time: 0.2 seconds
Maximum forming area: 850mm*300mm
Maximum forming speed: 80mm-120mm
Production speed: 45-60 molds/min
Maximum forming area: 850mm*300mm
Maximum forming speed: 80mm-120mm
Production speed: 45-60 molds/min
Automatic Hydraultc Press
Stamping method: pneumatic forward/recoil type
Recommend Products
Feature of equipment
1) Use programmable logic controller (PLC) to realize automatic control and digital operation.
2) The automatic lifting and feeding system is safe and labor-saving. The temperature control system of the plate-type upper and lower preheating device is stable to ensure uniform heating. The punching and punching knives are durable and free of burrs. The high pressure cutting laser knife has low cost and good effect. The mold replacement is simple. The host adopts frequency conversion adjustment. Speed running smoothly.
3) The whole is welded with steel box body, the structure is firm and does not deform, the bracket and box body are formed by pressure, with high density, no air holes, and the appearance is uniformly wrapped in stainless steel, which is beautiful and generous. Easy to maintain.
4) The roller servo traction system makes the machine run more stable and reliable, and
increases the traction length. The traction length and traction speed can be set through PLC, which increases the forming area and expands the scope of application.
5) The plane linkage mechanism is adopted, the transmission force is larger, the inertia effect is smaller, the operation is stable, and the pressing and cutting force is larger.
Machine List
|

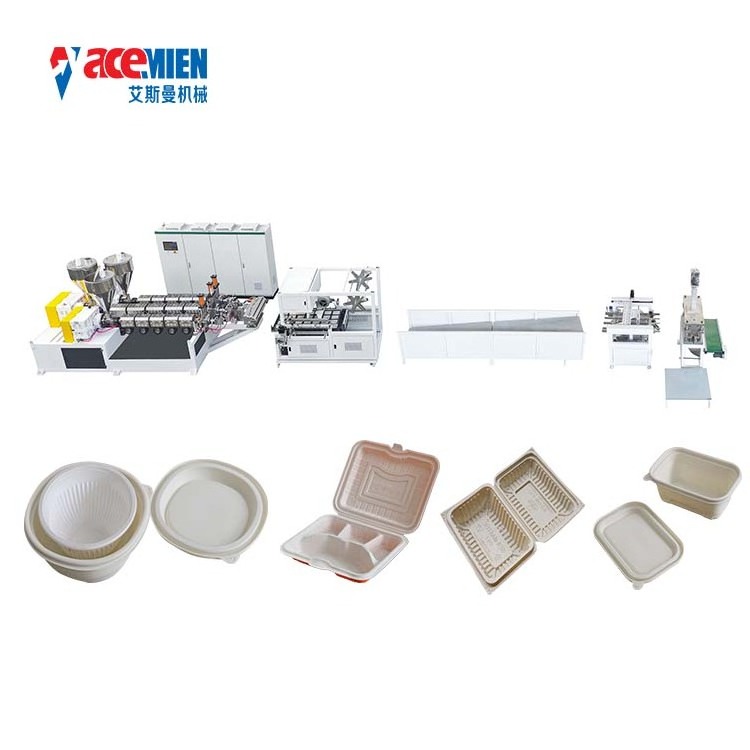

Single/Two/Four layer Biodegradable Meal Box Production Line
|
|
|
||
|
No
|
Machine List
|
Qty
|
||
|
1
|
Vacuum Feeder
|
1set
|
||
|
2
|
Dryer
|
1set
|
||
|
3
|
SJ90(Single)/SJ75(Two layer)/SJ65(Four) Single Screw Extruder
|
1set
|
||
|
4
|
Hydraulic Screen Changer
|
1set
|
||
|
5
|
Extrusion Mould
|
1set
|
||
|
6
|
High Speed Forming Machine
|
1set
|
||
|
7
|
Automatic Conveyor
|
1set
|
||
|
8
|
Automatic Hydraulic Press
|
1set
|
||
