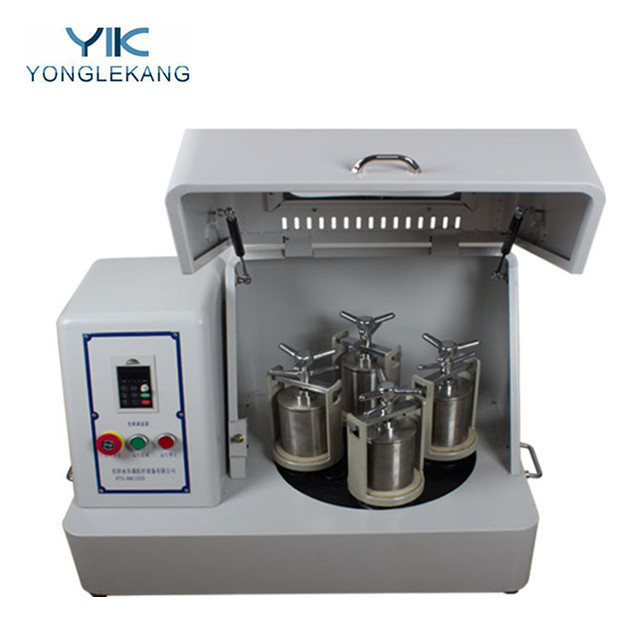

YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
750
-
Range of Spindle Speed(r.p.m):
-
70 - 560 r.p.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
YLK
-
Voltage:
-
220V / 380V
-
Dimension(L*W*H):
-
750*470*564mm
-
Weight (KG):
-
92 KG
-
Marketing Type:
-
Hot Product 2020
-
Product name:
-
Lab Scale Ball Mill Vertical Planetary Ball Mill Machine
-
Function:
-
Mixing and Grinding Materials
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
100sets
-
Color:
-
White
-
MOQ:
-
1 Set
-
Operation Mode:
-
Automatic
-
Feeding Size:
-
3-10mm
-
Output Size:
-
0.1-1mesh
-
Drive Mode:
-
Gear Drive
Quick Details
-
Output (kg/h):
-
1 - 100 kg/h
-
Feeding Size (mm):
-
3 - 10 mm
-
Output Size (mesh):
-
0.1 - 1 mesh
-
Power (kW):
-
750
-
Range of Spindle Speed(r.p.m):
-
70 - 560 r.p.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
YLK
-
Voltage:
-
220V / 380V
-
Dimension(L*W*H):
-
750*470*564mm
-
Weight (KG):
-
92 KG
-
Marketing Type:
-
Hot Product 2020
-
Product name:
-
Lab Scale Ball Mill Vertical Planetary Ball Mill Machine
-
Function:
-
Mixing and Grinding Materials
-
Material:
-
Stainless Steel 304/316
-
Capacity:
-
100sets
-
Color:
-
White
-
MOQ:
-
1 Set
-
Operation Mode:
-
Automatic
-
Feeding Size:
-
3-10mm
-
Output Size:
-
0.1-1mesh
-
Drive Mode:
-
Gear Drive
Product Description
Application Area
Widely applied in industries of chemical, mineral, metallurgy, environmental protection etc.
Specification
|
Drive Mode
|
Gear Drive
|
|
Operation Mode
|
Two of Four Grinding Tanks Working Together
|
|
Max Load Capacity
|
Less Than 2/3 of Total Volume of Grinding Jars
|
|
Feed Size of Materials
|
Soft and Crispy Material ≤10mm, Other Materials ≤ 3mm
|
|
Output Granule
|
Minimum 0.1um
|
|
Rotational Speed Ratio
|
1/2
|
|
Max Continuous Operating Time
|
72 Hours
|
|
Materials of Jar
|
Stainless Steel, Agate, Nylon, Corundum, Zirconia, etc.
|
|
Model
|
Jar Volume
|
Powder Capacity
|
Rotation Speed (rpm)
|
Revolution Speed (rpm)
|
Max Noise
|
Power (kw)
|
N.W. (kg)
|
Dimension (mm)
|
|
YKM-1L
|
250ml
|
330ml
|
35-340
|
70-680
|
60db
|
0.75
|
96
|
830*500*580
|
|
YKM-2L
|
500ml
|
660ml
|
35-340
|
70-680
|
60db
|
0.75
|
96
|
830*500*580
|
|
YKM-4L
|
1L
|
1.3L
|
35-340
|
70-680
|
60db
|
0.75
|
96
|
830*500*580
|
|
YKM-8L
|
2L
|
2.6L
|
35-290
|
70-580
|
60db
|
1.5
|
150
|
830*500*580
|
|
YKM-12L
|
3L
|
4L
|
35-290
|
70-580
|
60db
|
1.5
|
170
|
830*630*660
|
|
YKM-16L
|
4L
|
5.3L
|
30-225
|
60-520
|
60db
|
3
|
330
|
970*620*680
|
|
YKM-20L
|
5L
|
6.6L
|
25-215
|
50-430
|
65db
|
4
|
350
|
1350*780*750
|
|
YKM-40L
|
10L
|
13.3L
|
20-195
|
40-390
|
65db
|
5.5
|
420
|
1350*880*850
|
|
YKM-60L
|
15L
|
20L
|
20-180
|
40-360
|
68db
|
7.5
|
560
|
1550*950*1000
|
|
YKM-100L
|
25L
|
33L
|
20-120
|
40-240
|
68db
|
11
|
850
|
1800*1100*1350
|
Outcomes sharing
Optional Accessories
Packing & Delivery
|
Package
|
|
-Export Carton Package
|
|
-Both neutral and customized package can be available.
|
|
Shipping Ways
|
|
We can ship the goods to you per the methods showed on the pictures and you can choose the appropriate one based on your timeline and budget.
|
Packing Details: Standard export package (plywood + foam)
Export Port: Main port in China
Export Port: Main port in China
