Quick Details
-
Brand Name:
-
Rfan
-
Weight:
-
500 KG
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
silo
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rfan
-
Weight:
-
500 KG
WHY CHOOSE US
1、PRICE ADVANTAGE:
FACTORY-DIRECT BOTTOM PRICE, ALSO GOOD MANAGEMENT AND EFFICENCYTO CONTROL THE PRODUCTION COST.
2、QUALITY CONTROL:
QUALITY IS SUPERVISED AND CONTROLLEDIN EVERY PROCESS PF PRODUCTION AND CAN PASS THE TEST.
3、PROMPT DELIVERY:
STRONG AND STABLE PRODUCTIONCAPACITY WITH YEAR OF 300 CONTAINERS ENSURE THE TIME OF DELIVERY.
4、EXPORT EXPERIENCE:
RICH PRODUCTION EXPERIENCE ENABLEUS TO HANDLE ANY PROBLEM HAPPENED IN THE PROCESS OF PRODUCTION.
Product Description

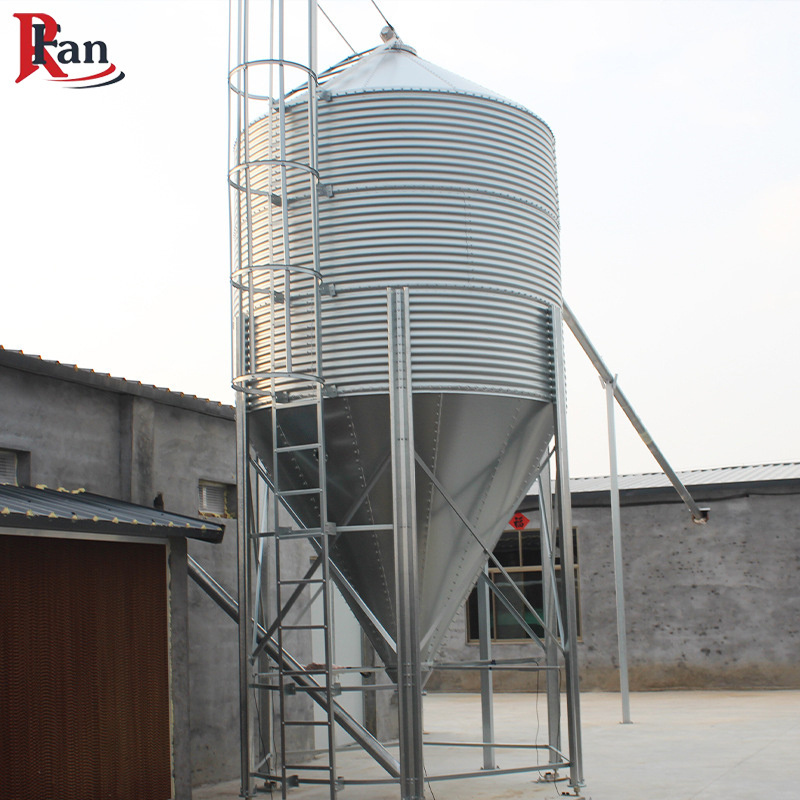

Feed Storage Silo:
With the advanced numerical controlled equipment, Lianrun silos feature low product data error,high precision and the leading stability of international standard. We select dedicated outdoor Galvanized sheet, which has the advantage of corrosion resistant and long life span. The adoption of international advanced technology and the unique angle design ensure feed drop more smoothly.
With the advanced numerical controlled equipment, Lianrun silos feature low product data error,high precision and the leading stability of international standard. We select dedicated outdoor Galvanized sheet, which has the advantage of corrosion resistant and long life span. The adoption of international advanced technology and the unique angle design ensure feed drop more smoothly.
|
Model
|
Capacity
(ton)
|
Capacity
(m³)
|
Diameter
(mm）
|
Height
(mm)
|
Top cone thickness
(mm)
|
Middle coaming thickness
(mm)
|
Bottom cone thickness
(mm)
|
Legs'
quantity
(pcs)
|
Weight
(kg)
|
|
1860-1
|
3
|
4.7
|
1860
|
4087
|
1.0
|
1.0
|
1.0
|
4
|
300
|
|
1860-2
|
4.5
|
7.3
|
1860
|
4977
|
1.0
|
1.0
|
1.0
|
4
|
346
|
|
1860-3
|
6.1
|
9.4
|
1860
|
5867
|
1.0
|
1.0
|
1.0
|
4
|
398
|
|
1860-4
|
7.7
|
11.9
|
1860
|
6757
|
1.0
|
1.0
|
1.0
|
4
|
445
|
|
2750-1
|
7.2
|
11.1
|
2750
|
4985
|
1.0
|
1.0
|
1.0
|
6
|
611
|
|
2750-2
|
11
|
16.9
|
2750
|
5875
|
1.0
|
1.0
|
1.0
|
6
|
680
|
|
2750-3
|
14.1
|
21.7
|
2750
|
6765
|
1.0
|
1.0
|
1.2
|
6
|
750
|
|
2750-4
|
17.5
|
27
|
2750
|
7655
|
1.0
|
1.0
|
1.2
|
6
|
830
|
|
3660-1
|
15.5
|
23.9
|
3660
|
6046
|
1.0
|
1.0
|
1.2
|
8
|
800
|
|
3660-2
|
21.5
|
33.1
|
3660
|
6936
|
1.0
|
1.0
|
1.2
|
8
|
1053
|
|
3660-3
|
27.5
|
42.4
|
3660
|
7526
|
1.0
|
1.0
|
1.2
|
8
|
1145
|
|
3660-4
|
33.8
|
52
|
3660
|
8716
|
1.0
|
1.0
|
1.2
|
8
|
1250
|
Details Images
1、Silo material selected hot-dip galvanized steel from well-known large scale manufacturers, double-side galvanized layer 275g/㎡，and passivation treatment, greatly enhance the anti-rust performance and improve corrosion resistance .
2、All bolts are made of high strength alloy and subjected to hot dip galvanizing and 48 hour salt spray test.Plate transverse joints,vertical joints with silicone seal, resistance to wind and rain,long life.
3、Silo cap use automatic tension torsion spring control structure, in the ground pull the switch can close and open the cap.Silo lower cone panel offer transparent glass observation window, easy to observe the situation at any time for checking the feeding level.
4、The silo ladder step with solid treatment,with round guardrail, design safety, more humane 5.The silo has a variety of tonnage(3-33.8Ton)for choose.
