Quick Details
-
Voltage:
-
according to customer's requirement
-
Dimension(L*W*H):
-
1000*1150*1760 mm
-
Weight:
-
750 KG
-
Max. Grinding Length:
-
460 mm
-
Certification:
-
ISO9001;CE
-
Name:
-
surface grinding machine manufacturers surface grinder machine M618A
-
Usage:
-
General
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Automatic Grade:
-
Manual
Quick Details
-
Model Number:
-
M618A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TieJu
-
Voltage:
-
according to customer's requirement
-
Dimension(L*W*H):
-
1000*1150*1760 mm
-
Weight:
-
750 KG
-
Max. Grinding Length:
-
460 mm
-
Certification:
-
ISO9001;CE
-
Name:
-
surface grinding machine manufacturers surface grinder machine M618A
-
Usage:
-
General
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Automatic Grade:
-
Manual
surface grinding machine manufacturers surface grinder machine M618A
|
Model |
M618A |
|||
|
Working table |
Table Size (L× W) |
mm |
460×180 |
|
|
Max movement of working table (L× W) |
mm |
500×190 |
||
|
T -Slot number×width |
mm |
1×14 |
||
|
Grinding head |
Max distance from spindle center to table surface |
mm |
335 |
|
|
Wheel Size( Outer diameter×width×Inner diameter ) |
mm |
φ180 × 13×Φ31.75 |
||
|
Wheel speed |
50HZ |
r/min |
2850 |
|
|
60HZ |
3440 |
|||
|
Feed amount |
Vertical feed on handwheel |
Per revolution |
mm |
1.25 |
|
Per graduation |
mm |
0.01 |
||
|
Cross feed on handwheel |
Per revolution |
mm |
2.5 |
|
|
Per graduation |
mm |
0.02 |
||
|
Motor power |
Spindle motor |
kw |
1.1 |
|
|
Coolant pump motor |
w |
40 |
||
|
Working precision |
The parallelism of working surface to base level |
mm |
300:0.005 |
|
|
Surface roughness |
μm |
Ra0.32 |
||
|
Weight |
Net |
kg |
650 |
|
|
Gross |
kg |
750 |
||
|
Overall dimension( L×W×H ) |
mm |
1550x1150x1590 |
||
|
Package dimension( L×W×H) |
mm |
1000x1150x1760 |
||

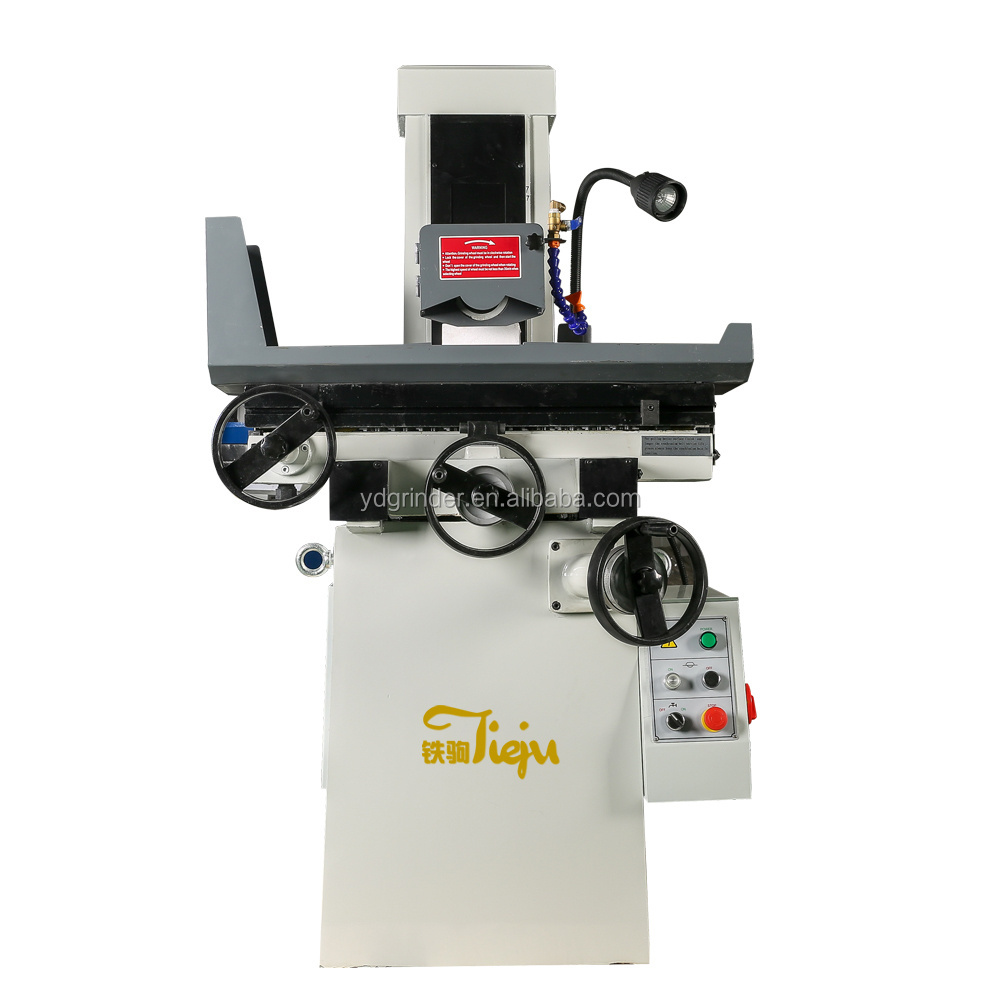

Pictures of surface grinding machine manufacturers surface grinder machine M618A
1,We have passed through the ISO9001:2008 system
2,We have CE certificate for our products
3,We are the manufacturer of surface grinders for over 14 years
