Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TONTEKPOWER
-
Model Number:
-
CCFJ180J-WTPC5
-
Speed:
-
1500RPM
-
Standby power:
-
198KW/247.5KVA
-
Engine Brand:
-
Cummins Brand
-
Engine Model:
-
6LTAA8.9-GM200
-
Cooling system:
-
Sea water heat exchange cooled
-
Starter:
-
DC24V electric
-
Alternator brand:
-
STAMFORD/ MARATHON
-
Protection class:
-
IP23
-
Phase&wire:
-
3P3W
-
Power factor:
-
0.8(lagging)
-
Controller:
-
ComAp/SmartGen/Deepsea
-
Certification:
-
CCS
Quick Details
-
Rated Voltage:
-
400/230V (Can be adjusted)
-
Frequency:
-
50 Hz
-
Warranty:
-
13 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TONTEKPOWER
-
Model Number:
-
CCFJ180J-WTPC5
-
Speed:
-
1500RPM
-
Standby power:
-
198KW/247.5KVA
-
Engine Brand:
-
Cummins Brand
-
Engine Model:
-
6LTAA8.9-GM200
-
Cooling system:
-
Sea water heat exchange cooled
-
Starter:
-
DC24V electric
-
Alternator brand:
-
STAMFORD/ MARATHON
-
Protection class:
-
IP23
-
Phase&wire:
-
3P3W
-
Power factor:
-
0.8(lagging)
-
Controller:
-
ComAp/SmartGen/Deepsea
-
Certification:
-
CCS
|

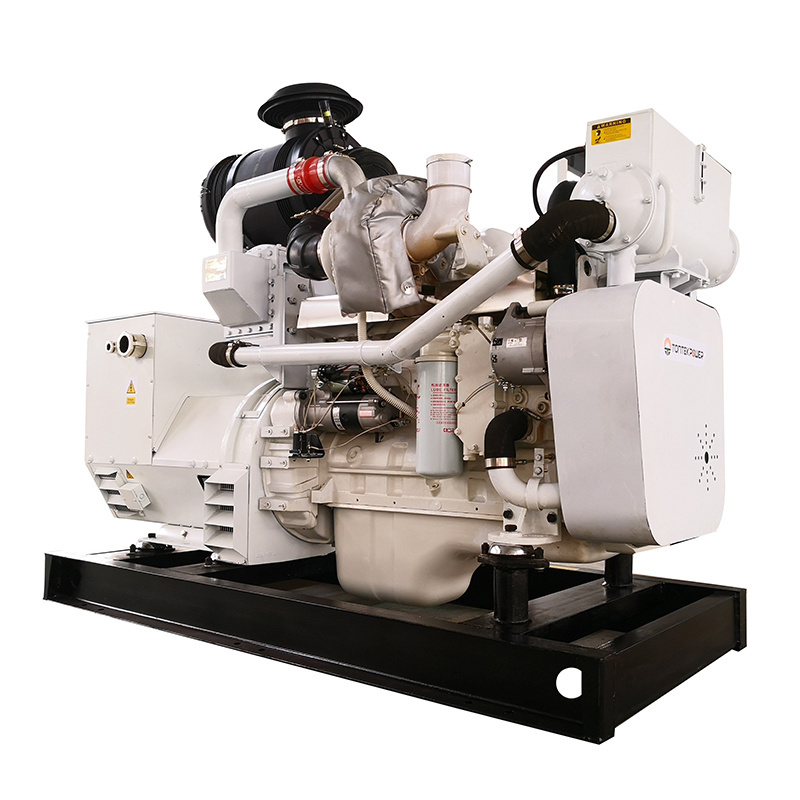

MARINE DIESEL GENERATOR DATA
|
|
|
|
Model
|
CCFJ180J-WTPC5
|
|
|
Rated power
|
180KW/225KVA
|
|
|
Standby power
|
198KW/247.5KVA
|
|
|
Rated voltage
|
400/230V (Can be adjusted)
|
|
|
Rated frequency
|
50HZ
|
|
|
Dimension
|
2289x860x1670 MM
|
|
|
Weight
|
1850KG
|
|
|
ENGINE DATA
|
|
|
|
Brand
|
CUMMINS
|
|
|
Model
|
6LTAA8.9-GM200
|
|
|
Rated speed
|
1500RPM
|
|
|
Bore*Stroke
|
114*135MM
|
|
|
Displacement
|
8.3L
|
|
|
Type
|
In-Line,6 cylinders,4 stroke
|
|
|
Aspiration
|
Turbocharger and Charge Air cooled
|
|
|
Cooling system
|
Sea water heat exchange cooled
|
|
|
Fuel system
|
BYC PB Pump/R801 Governor
|
|
|
Speed governor
|
Electric
|
|
|
Starter
|
DC24V electric
|
|
|
ALTERNATOR DATA
|
|
|
|
Brand
|
STAMFORD/MARATHON
|
|
|
Type
|
Brushless,self-excited,AVR
|
|
|
Protection class
|
IP23
|
|
|
Insulation
|
H
|
|
|
Phase&wire
|
3P3W
|
|
|
Power factor
|
0.8(lagging)
|
|
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
