Quick Details
-
Brand Name:
-
TDER
-
Model Number:
-
T160
-
Dimension(Long * Breadth * High):
-
6104*3388*3032mm
-
Product name:
-
TDER Brand Cheap Price crawler bulldozer for sale
-
Engine:
-
Weichai
-
Horse Power:
-
160hp
-
Min.Ground Clearance:
-
400mm
-
Blade Dozing Capacity:
-
4.5m3
-
Blade width:
-
3388mm
-
Blade type:
-
Straight-tilt
-
Blade height:
-
1149mm
-
After Warranty:
-
Video technical support
Quick Details
-
Machine Weight:
-
17000 KG
-
Dozing Capacity:
-
4.5m³
-
Place of Origin:
-
China
-
Brand Name:
-
TDER
-
Model Number:
-
T160
-
Dimension(Long * Breadth * High):
-
6104*3388*3032mm
-
Product name:
-
TDER Brand Cheap Price crawler bulldozer for sale
-
Engine:
-
Weichai
-
Horse Power:
-
160hp
-
Min.Ground Clearance:
-
400mm
-
Blade Dozing Capacity:
-
4.5m3
-
Blade width:
-
3388mm
-
Blade type:
-
Straight-tilt
-
Blade height:
-
1149mm
-
After Warranty:
-
Video technical support

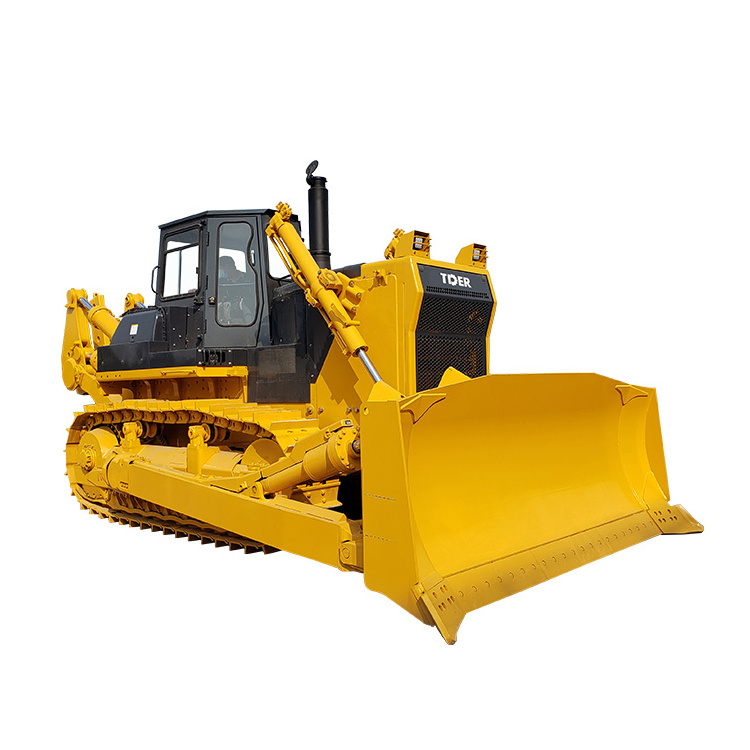

chinese bulldozer 2022 TDER Brand Cheap Price crawler bulldozer for sale
Products Description
|
SPECIFICATION
|
|
|
|
|
||||
|
Specification/Blade type
|
|
Straight-tilt
|
Angle
|
U-Blade
|
||||
|
Operating Weight
|
Kg
|
17400
|
17700
|
17900
|
||||
|
Min.Turning Radius
|
M
|
3.2
|
3.2
|
3.2
|
||||
|
Ground Pressure
|
MPa
|
0.069
|
0.07
|
0.071
|
||||
|
Track Gauge
|
MM
|
1880
|
1880
|
1880
|
||||
|
Max. Pulling Force
|
KN
|
142
|
142
|
142
|
||||
|
Grade Ability
|
°
|
30
|
30
|
30
|
||||
|
TRAVEL SPEED
|
|
|
|
|
||||
|
|
|
1st
|
2nd
|
3rd
|
||||
|
Forward (km)
|
|
0～3.8
|
0～6.6
|
0～10.6
|
||||
|
Reverse (km)
|
|
0～10.6
|
0～8.5
|
0～13.6
|
||||
|
ENGINE
|
|
|
|
|
||||
|
Model & Type
|
|
Weichai WD10G178E25
|
|
|
||||
|
6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection
|
|
|
|
|
||||
|
Rated Revolution
|
(rpm)
|
1850
|
|
|
||||
|
Flywheel Horsepower
|
(HP)
|
160
|
|
|
||||
|
Cylinder Number-BoreX Stroke
|
(mm)
|
6-126X 130
|
|
|
||||
|
Piston Displacement
|
(L)
|
9.73
|
|
|
||||
|
Min. Fuel Consumption
|
(g/kW.h)
|
223
|
|
|
||||
|
Max.Torque
|
(Nm/rpm)
|
830/1100
|
|
|
||||
|
Starting Motor
|
V*KW
|
24*7.5
|
|
|
||||
|
POWER TRANSMISSION SYSTEM
|
|
|
|
|
||||
|
Torque Converte
|
|
3-element,1-stage,1-phase
|
|
|
||||
|
Transmission
|
|
Planetary gearing, hand-manipulated, hydraulic shift， forced lubrication,3 forward and 3 reverse speeds
|
|
|
||||
|
Bevel Gear
|
|
Spiral bevel gear, splash lubrication, single-stage speed reduction
|
|
|
||||
|
Steering Clutch
|
|
Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control
|
|
|
||||
|
Steering Brake
|
|
Wet, band type, pedal hydraulic booster, with parking brakes
|
|
|
||||
|
Final Drive
|
|
Double reduction of spur gear, splash lubrication
|
|
|
||||
|
HYDRAULIC SYSTEM
|
|
|
|
|
||||
|
Pump Type
|
|
Gear pump 07441-67503
|
|
|
||||
|
Working Pressure
|
(MPa)
|
13.4
|
|
|
||||
|
System Discharge
|
(L/min)
|
250
|
|
|
||||
|
Working Cylinder type
|
|
Double-acting piston type
|
|
|
||||
|
Working Cylinder Lift Number-BoreXRodXStroke
|
(mm）
|
2-110X65X1026
|
|
|
||||
|
Working Cylinder Tilt BoreXRodXStroke
|
(mm)
|
160X70X140
|
|
|
||||
|
UNDERCARRIAGE SYSTEM
|
|
|
|
|
||||
|
Type
|
|
Swing type of sprayed beam, suspended structure of equalizer bar
|
|
|
||||
|
Carrier Rollers
|
|
2(each side)
|
|
|
||||
|
Track Rollers
|
|
6/each side (4-single flange, 2-double flange)
|
|
|
||||
|
Track Type
|
|
Sealed, assembled single- grouser
|
|
|
||||
|
Number Of Track Shoes
|
|
37(each side)
|
|
|
||||
|
Width Of Track Shoes
|
(mm)
|
510
|
|
|
||||
|
Pitch
|
(mm)
|
203.2
|
|
|
||||
|
Length Of Track 0n Ground
|
(mm)
|
2430
|
|
|
||||
|
WORK EQUIPMENT
|
|
|
|
|
||||
|
Specification/Blade type
|
|
Straight-tilt
|
Angle
|
Angle
|
||||
|
Blade Capacity
|
(m3)
|
4.5
|
4.3
|
8.6
|
||||
|
Blade Width X Height
|
(mm)
|
3416×1145
|
3970×1037
|
4064×1386
|
||||
|
Max.Lift
|
(mm)
|
1110
|
1095
|
1110
|
||||
|
Max.Depth
|
(mm)
|
530
|
545
|
530
|
||||
|
Max.tilt Adjustment
|
(mm)
|
≥860
|
≥400
|
≥400
|
||||
|
Pitch Adjustment
|
( ° )
|
55
|
55
|
55
|
||||
|
Capability
|
(m3/H)
|
247
|
247
|
260
|
||||
|
Weight Of Blade
|
(kg)
|
2350
|
2450
|
2560
|
||||
|
COOLANT AND LUBRICANT CAPACITY
|
|
|
|
|
||||
|
Fuel Tank Capacity
|
L
|
320
|
|
|
||||
|
Hydraulic Tank Capacity
|
L
|
108
|
|
|
||||
|
Engine oil Capacity
|
L
|
45
|
|
|
||||
|
Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity
|
L
|
122
|
|
|
||||
|
Final Drive Capacity
|
(L)
|
33(each side)
|
|
|
||||
|
RIPPER(OPTIONAL)
|
|
|
|
|
||||
|
3-Shank Ripper:
|
|
|
|
|
||||
|
Max.Digging Depth
|
(mm)
|
572
|
|
|
||||
|
Max.Lift
|
(mm)
|
702
|
|
|
||||
|
Shank Of Distance
|
(mm)
|
950
|
|
|
||||
|
Weight
|
(kg)
|
1700
|
|
|
||||
Application
