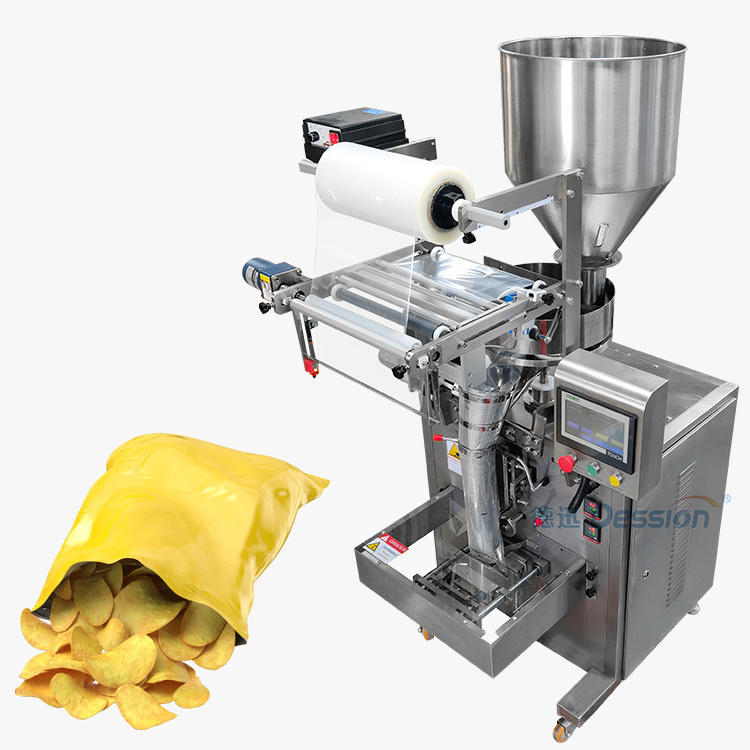

Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine

Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $3300
≥2 Sets
US $3220
≥3 Sets
US $3150
≥5 Sets
US $3100
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
300
Voltage:
220V,50HZ
Place of Origin:
Guangdong, China
Brand Name:
Dession Machinery
Dimension(L*W*H):
L1100 * W755 * H1540mm
After-sales Service Provided:
Engineers available to service machinery overseas
Measuring:
Cup Metering
Filling range:
5- 100g
Packing Speed:
30 - 70 bags / min
Bag width:
50 - 150 mm
Bag Length:
40 - 200 mm
Film Material:
Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE
Bag sealing type:
Back sealing
Bag Pulling:
PLC
Machine Material:
304# Stainless Steel & Carbon
Marketing Type:
New Product 2020

Quick Details

Function:
FILLING, Wrapping, Capping, automatic packing machine
Packaging Type:
Bags, pouch packing machine
Packaging Material:
Plastic, plastic bag packing machine
Weight (KG):
300
Voltage:
220V,50HZ
Place of Origin:
Guangdong, China
Brand Name:
Dession Machinery
Dimension(L*W*H):
L1100 * W755 * H1540mm
After-sales Service Provided:
Engineers available to service machinery overseas
Measuring:
Cup Metering
Filling range:
5- 100g
Packing Speed:
30 - 70 bags / min
Bag width:
50 - 150 mm
Bag Length:
40 - 200 mm
Film Material:
Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE
Bag sealing type:
Back sealing
Bag Pulling:
PLC
Machine Material:
304# Stainless Steel & Carbon
Marketing Type:
New Product 2020
Automatic chips small pouch vertical packing machine for banana chips packaging small nitrogen potato chips packing machine
Machine Introduction

Packaging Application

This machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.
Such as sugar, salt, nut, snack food, d esiccant, candy, etc.

Packing Effect

The machine can provide back-seal packing, 3-side seal packing and 4-side seal packing effects. It can be upgraded to add the bag with hanging holes and easy tear effect according to the needs
Machine Structure and Parameters
Model
DS-320A
Measuring Range
1~100g
Bag Length
30~170 mm
Bag Width
30 ~ 130 mm
Packing Speed
30 ~60 bags/min
Machine Power
220V, 50Hz, 1.4KW
Machine Size
900*1100*1900 mm
Machine Weight
400 KG


Machine Characteristics

1. All the works of bag making, measuring, filling, sealing, cutting and counting can be done automatically, at the same time, it can also according to the demand of customers printing batch number and other functions.
2. The touch screen operation, PLC control, drive stepper motor to control the bag length, stable performance, easy to adjust and accurate detection.
3. Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 centigrade.
Details Images


Machine Workflow

This machine is easy to operate.
Just set the parameters on the screen, and then you can start the machine. Put the product in the hopper, the machine will automatically pull the film, the bag is formed, sealed, and finally the bag is cut.


Large capacity hopper


High-precision
measuring cup device


Film holder


Bag fromer


Bag sealing device


Bag cutting device
