Quick Details
-
Model Number:
-
25KG/35KG
-
Name:
-
DS3225/DS3235 Pro Servo
-
Color:
-
Bule
-
Weight:
-
78g
-
Bearing:
-
2BB
-
Connector wire:
-
320mm±5mm
-
Motor:
-
Coreless brush motor
-
Feature:
-
Hight Speed
-
Working voltage range:
-
5V~8.4V
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DSSERVO
-
Model Number:
-
25KG/35KG
-
Name:
-
DS3225/DS3235 Pro Servo
-
Color:
-
Bule
-
Weight:
-
78g
-
Bearing:
-
2BB
-
Connector wire:
-
320mm±5mm
-
Motor:
-
Coreless brush motor
-
Feature:
-
Hight Speed
-
Working voltage range:
-
5V~8.4V
Product Description
Brand:Dsservo
Packing List: 5pcs/lot

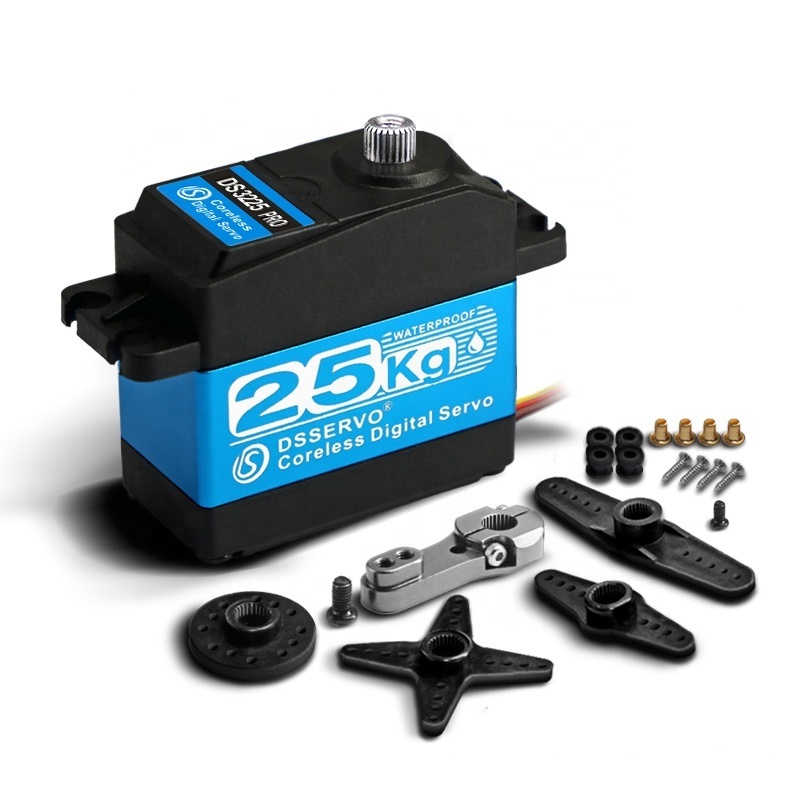

1x DS3225pro digital servo
1x 25T metal servo arm
1x accessory bag
Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm±5mm
8.Motor: Coreless brush motor
Electrical Specification:
1.Working voltage range: 5 - 8.4V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)
Packing List: 5pcs/lot
1x DS3225pro digital servo
1x 25T metal servo arm
1x accessory bag
Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB
5.Horn gear spline: 25T Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm±5mm
8.Motor: Coreless brush motor
Electrical Specification:
1.Working voltage range: 5 - 8.4V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)
|
Material
|
Metal gear
|
|
Scale
|
1:8 / 1:10 / 1:12 RC Car
|
|
Brand Name
|
DSservo
|
|
Name
|
DS3225 Pro Servo
|
|
Color
|
Bule
|
|
Product size
|
40.0*20.5*40.5mm
|
|
Weight
|
78g
|
|
Bearing
|
2BB
|
|
Connector wire
|
320mm±5mm
|
|
Motor
|
Coreless brush motor
|
|
Working voltage range
|
5V~8.4V
|
|
Feature
|
Hight Speed
|
