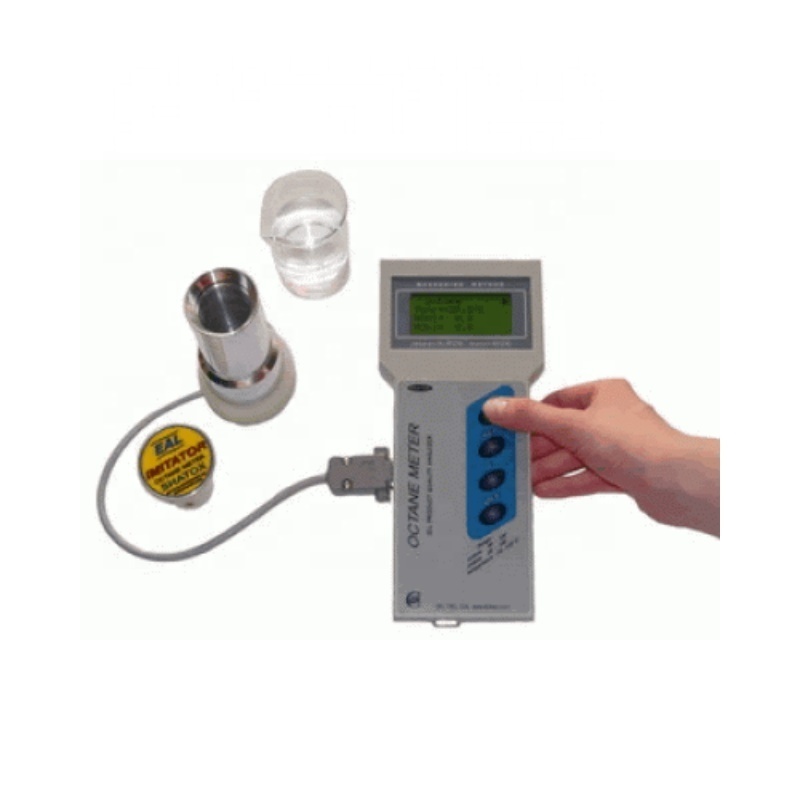

Portable octane analyzer is used for instant octane rating of motor gasoline, corresponding to motor and research methods (RON and MON) as well as for cetane number of diesel fuels. In addition for an inquiries, temperature rating of the analyzed liquid and diesel fuel solidification is provided. The results of measuring are displayed on the LCD.
The operational principle of the Octane Meter lies in gasoline octane rating and diesel fuel cetane rating based on the analysis of change of properties of an dielectric permeability and electromagnetic induction.
Octane analyzer has the portable compact design and is used for on-line inspection of motor fuel quality in the field and laboratory conditions. The operating conditions of the Octane analyzer usage: ambient temperature from –10C to +30C, relative humidity 80% at 25 C, atmosphere pressure 84-106kPa. The device gets power from DC elements of type AA (supply voltage 6V).
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yucai
-
Model Number:
-
SX-100K
-
Types of controlled fuel:
-
all types of gasoline
-
Range of measured octane level:
-
40-120
-
Range of measured cetane level:
-
20-100
-
Measurement inaccuracy of octane number:
-
0,5
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yucai
-
Model Number:
-
SX-100K
-
Types of controlled fuel:
-
all types of gasoline
-
Range of measured octane level:
-
40-120
-
Range of measured cetane level:
-
20-100
-
Measurement inaccuracy of octane number:
-
0,5
Product Description
PRODUCT SHOWCASE
PRODUCT SHOWCASE
Types of controlled fuel
|
all types of gasoline
|
Range of measured octane level
|
40-120
|
Range of measured cetane level
|
20-100
|
Measurement inaccuracy of octane number
|
0,5
|
Measurement inaccuracy of cetane number
|
1
|
Data display
|
digital
|
Time of measurement, sec
|
below 10
|
Consumption current, mA
|
30
|
Time of continuous running with one set of batteries, hour
|
100
|
Operation temperature range
|
-10 ℃ …+40℃
|
Relative humidity, %
|
30…..80
|
Atmosphere pressure, kPascal
|
64…..106
|
Dimension, mm:
sensor; electronic module |
60 х 100 100 х 210 х 25 |
Weight, gr
|
680
|
Mean-time-between-failures, hour
|
>1000
|
Packing Show
After-Sales Service
●
Provides telephone feedback within 24 hours and on-site service within 48 hours.
●
Offers professional instrument configuration and sample testing solutions, as well as long-term discounted supply of spare parts and standard samples.
About us.
Yucai is professional petroleum equipment manufacturer and engaged in producing petrochemical analysis instruments, oil testers, like moisture analyzer, viscometer, oil flash point tester, pour point & could point tester, sulfur content analyzer, oil acidity meter, octane meter, softening point tester, ash content analyzer, lubricating oil foaming tester, dropping point tester, emulsion breaking test, oil distillation range tester, oxygen bomb calorimeter, freezing point tester, four ball tester, particle counter, RPVOT, CCS, GC, ICP-OES, FTIR, AAS, etc. After continuous improving and evaluation, our products have good competitiveness in both of quality and price.
Why choose us?
1. Shanghai Yucai Technology Co., Ltd, estabilshed in 2018, is a supplier of petroleum oil lab equipment, inclding oil quality analyzer, oil exploitation equipment, oil filter and so on.
2. We have very excellent team, most of them has more than 10 years experience in this industry. We are professional in our products, and we are familar with the entire foreign trade process, which can help trade can be proceed smoothly.
3. We have exported more than 100 countries, we do our best to assist customers in developing local markets, and we keep getting good feedbacks from our customers, which we are pround of.
Product Description
Based on atomic emission spectrometry analysis technology, KR-X spectrometer adopts unique rotating graphite disk electrode excitation method, which has the advantages of stable and reliable, fast detection speed and high precision. It is widely used in lubricating oil, hydraulic oil, fuel oil and antifreeze detection. It can be used for real-time monitoring of equipment status, and also in the field of oil quality control.
Features
1. The sample does not need to be pretreated, it is fast (only 30 seconds is required to excite a sample), and the easurement is accurate (the detection limit is 1 ppm or less).
2. Using CCD array detection, oil multi-element full-spectrum analysis, analysis channel selection / change is very flexible.
3. Designed with advanced artificial intelligence system and operation prompt function to prevent damage to the instrument due to misuse.
4. Built-in industrial computer system, integrated design of the overall structure.
5. Can be built in the shock absorbing chassis, with good shock resistance and maneuverability.
6. Windows platform operating software: fast data processing, strong data compatibility, and strong software scalability.
7. The user-defined deduction background function has been added to greatly reduce noise interference and improve sensitivity.
2. Using CCD array detection, oil multi-element full-spectrum analysis, analysis channel selection / change is very flexible.
3. Designed with advanced artificial intelligence system and operation prompt function to prevent damage to the instrument due to misuse.
4. Built-in industrial computer system, integrated design of the overall structure.
5. Can be built in the shock absorbing chassis, with good shock resistance and maneuverability.
6. Windows platform operating software: fast data processing, strong data compatibility, and strong software scalability.
7. The user-defined deduction background function has been added to greatly reduce noise interference and improve sensitivity.
PRODUCT SHOWCASE
PRODUCT SHOWCASE
Spectral range
|
203~810nm
|
Oil consumption
|
about 2ml
|
Meets the standards
|
ASTM D6596 (lubricating oil), ASTM D6728 (fuel oil)
|
Relative humidity
|
0~90%, no condensation
|
Working temperature
|
-10℃~50℃
|
Working voltage
|
220V/50Hz
|
Working power
|
Standby 10W, 500W burning process
|
Data transfer
|
USB/Ethernet
|
Weight
|
<68kg
|
Shipping box packing size
|
737*686*830 (mm)
|
