Quick Details
-
Power:
-
2200
-
Weight:
-
1900 kg
-
Dimension(L*W*H):
-
3680*1170*1350(mm)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAN TAI
-
Voltage:
-
220/380V
-
Power:
-
2200
-
Weight:
-
1900 kg
-
Dimension(L*W*H):
-
3680*1170*1350(mm)

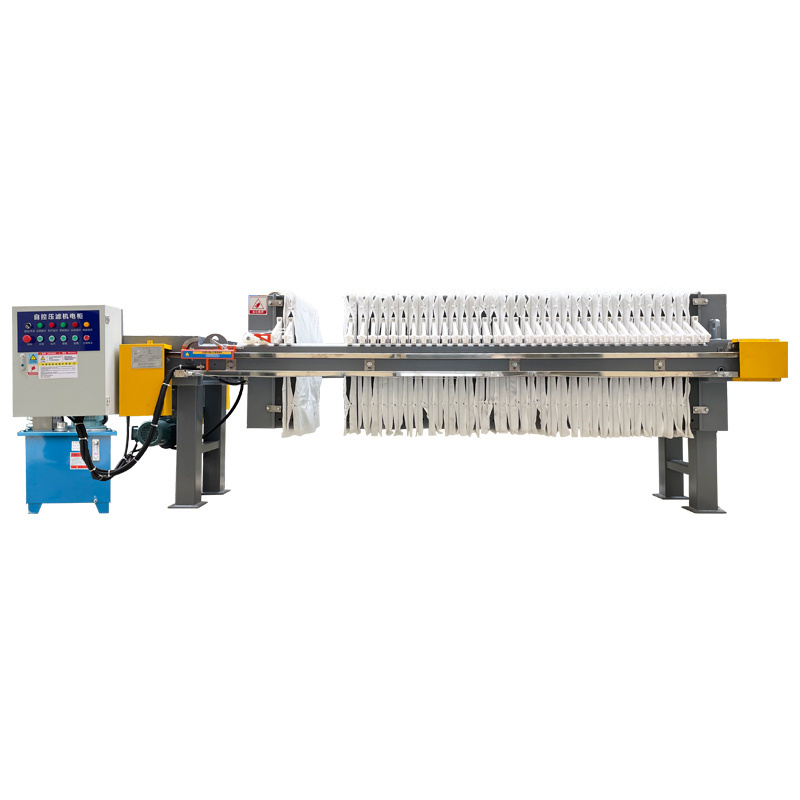

The filter press is used for mud filtration, wastewater filtration, and can be customized with a stainless steel surface for food filtration.
The working principle of a box type filter press is that the filter plates are arranged to form a filter chamber (the two sides of the filter plates are concave, and each two filter plates are combined to form a box shaped filter chamber).
The surface of the filter plate has pits and protrusions to support the filter cloth. The center and corners of the filter plate have through holes, which form a complete channel after assembly, allowing for the passage of suspension, washing water, and the extraction of filtrate. On both sides of the filter plate, there are handles supported on the crossbeam, and the filter plate is compressed by a compression device. The filter cloth between the filter plates serves as a seal.
Under the pressure of the feeding pump, the material liquid that needs to be filtered is sent into each filter chamber, and the solid and liquid are separated through the filtering medium (suitable filter cloth is selected according to different industries). Form filter residue on the filter cloth until it fills the filter chamber and forms a filter cake. The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet channel for centralized discharge. After filtration, clean the filter residue with detergent water. After washing, sometimes compressed air is introduced to remove the remaining washing solution. After the filtration is completed, open the filter press to remove the filter cake (which is stored between adjacent filter plates), clean the filter cloth, and re press the plate to filter before starting the next working cycle.
| Model | Filter area(m²) | Filter plate thickness (mm) | Number of filter plates | Equipment size (mm) | Filter plate size (mm) | Mud cake thickness | Filter chamber capacity (L) |
| XAMY30/800-ub | 30 | 60 | 31 | 3680*1170*1350 | 800*800 | 30 | 450 |
| XAMY35/800-ub | 35 | 60 | 36 | 3980*1170*1350 | 800*800 | 30 | 525 |
| XAMY40/800-ub | 40 | 60 | 41 | 42 80*1170*1350 | 800*800 | 30 | 600 |
| XAMY45/800-ub | 45 | 60 | 46 | 45 80*1170*1350 | 800*800 | 30 | 675 |
| XAMY50/800-ub | 50 | 60 | 51 | 48 80*1170*1350 | 800*800 | 30 | 750 |
| XAMY55/800-ub | 55 | 60 | 56 | 5180*1170*1350 | 800*800 | 30 | 825 |
| XAMY60/800-ub | 60 | 60 | 61 | 5480*1170*1350 | 800*800 | 30 | 900 |
Q1: What if you can't install and use it?
Don't worry, we provide detailed installation steps and online video support.
Q2: What's the lead time for regular order?
0-15 days for production.
Q3: What if the product arrives and is found damaged?
Please rest assured that the quality of our products is absolutely guaranteed and there will be no damage. However, if this happens, we will immediately send new products to replace them.
Q4: Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
Q5: Can I get a discount?
Yes, for the order quantity more than 500 pcs, please contact us to get the best price.
Q6: Where will the orders be shipped from?
It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
