Quick Details
-
Brand Name:
-
TIANEN
-
Model Number:
-
HFS
-
Operating Temperature:
-
0~60 ℃
-
Control type:
-
Paddle
-
Ambient temperature limits:
-
5-40 ℃
-
Electrical switch:
-
SPDT
-
Rating:
-
220VAC 15A
-
Repeatability:
-
±2.5% of total range
-
Withstand pressure:
-
16 bar
-
Medium temperature:
-
5 ~ 80 ℃
-
Maximum liquid temperature:
-
100℃
-
Product keyword:
-
flow switch
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1.5-48.5 m3/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANEN
-
Model Number:
-
HFS
-
Operating Temperature:
-
0~60 ℃
-
Control type:
-
Paddle
-
Ambient temperature limits:
-
5-40 ℃
-
Electrical switch:
-
SPDT
-
Rating:
-
220VAC 15A
-
Repeatability:
-
±2.5% of total range
-
Withstand pressure:
-
16 bar
-
Medium temperature:
-
5 ~ 80 ℃
-
Maximum liquid temperature:
-
100℃
-
Product keyword:
-
flow switch

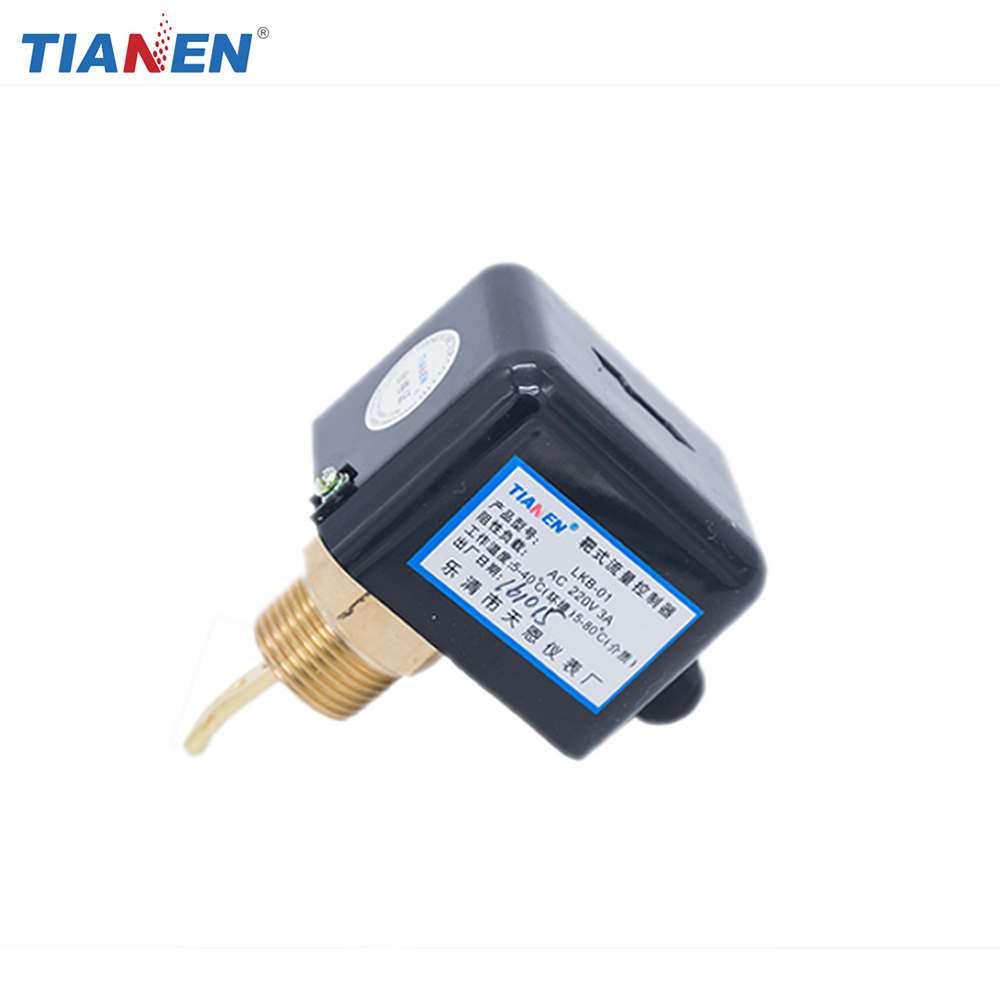

LKB-01 PADDLE TYPE WATER FLOW CONTROL SWITCH
INTRODUCATION
Flow Switch is designed for managing the flow changes when the liquid flows in the pipe, such as water, ethylene glycol or other non-hazardous liquids. When the liquid flow is higher or lower than the setting value, the single-pole double- throw contacts (SPDT) can get through one circuit and at meantime to break the other circuit. Liquid flow switch is commonly used for chain reaction or “no flow” protection.
APPLICATION
Gas-liquid, Industrial Automation / Machinery / Air Compression Industry / Refrigeration & Air Conditioning Suitable for pipes with diameter ≥25 mm.
PARAMETER LIST
THIS LIST APPLIES TO PIPE DIAMETER ≥ 6"
THIS LIST APPLIES TO DIAMETER ≥ 125MM
PRODUCT SHOW
INSTALLATION
1. Screw the flow switch tightly the dedicated conduit connection.
2. The direction of medium flow should be same with the direction of the arrow on product.
3. The paddle of the flow switch should be vertical with the direction of medium flow.
4. There must be the 10 times diameter of the guide straight pipe in front of the flow switch.
5. Open the cover of product and wire it according to the wiring diagram, then install the cover.
PACKAGE Packing is well suited for long distance shipments
CARTON SIZE: 425*340*385(MM)
GROSS WEIGHT: 0.5 KG/PCS
NOTICE
1. When opening the enclosure of the flow switch, do not move the internal components.
2. Do not exceed the maximum allowable pressure for medium pressure.
3. This product cannot be use in the environment with corrosive gases.
SHIPPMENT
You can transport goods by sea, by air, by express or another shiping ways.
We will do our best to help you find an optimal way.
