Quick Details
-
Ink Type:
-
Sublimation Ink
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
zy
-
Voltage:
-
50Hz/60Hz,220V
-
Dimensions(L*W*H):
-
3350*1100*1550mm
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Ink type:
-
Sublimation Ink
-
Media Type:
-
textile,nylon,synthetic,polyester,flag
-
Printhead:
-
DX5 or 4720 or I3200
Quick Details
-
Print Dimension:
-
1800mm
-
Condition:
-
New
-
Color & Page:
-
CMYK
-
Ink Type:
-
Sublimation Ink
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
zy
-
Voltage:
-
50Hz/60Hz,220V
-
Dimensions(L*W*H):
-
3350*1100*1550mm
-
Weight:
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Ink type:
-
Sublimation Ink
-
Media Type:
-
textile,nylon,synthetic,polyester,flag
-
Printhead:
-
DX5 or 4720 or I3200

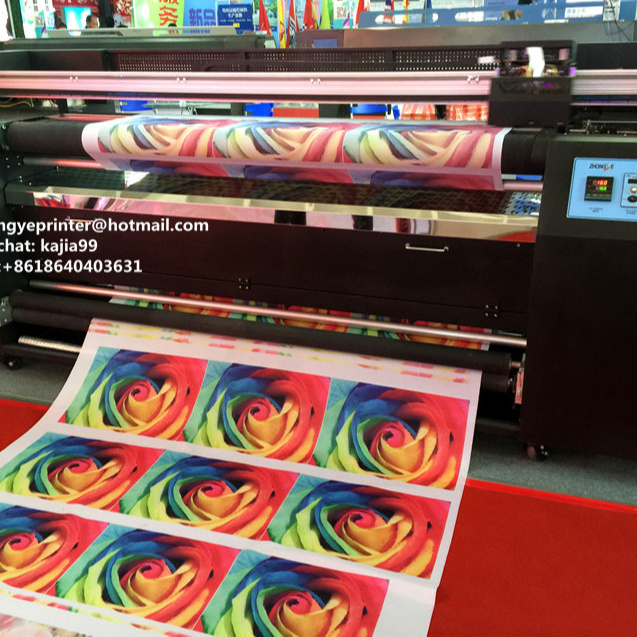

Digital polyester textile printing machine sublimation printer, 1440dpi with printhead
|
Print Technology |
Drop-On-Demand Piezo electric Technology |
|
|
Number of print-heads |
2 pcs Epson DX5or DX7 |
|
|
Nozzles |
4* 4 color ( C M Y K ) |
|
|
Ink type |
sublimation ink print on the media directly |
|
|
Ink supplying system |
Auto sense ink supplying system |
|
|
Intelligent monitoring system |
auto detecting system while lacking ink |
|
|
Heating & drying |
Heating system |
Equipped |
|
Heating temperature |
available: Normal temperature----25°C suggest temperature: 30°C-------40°C |
|
|
Drying system |
Equipped |
|
|
Media accetpable |
Weave or knit cotton,dacron, flax, silk, polyester, cashmere, towel etc. |
|
|
Print width max |
1800MM |
|
|
Speed |
Mass production mode |
30.0m2/h |
|
Quality mode |
22.0m2/h |
|
|
Ultra quality mode |
15.0m2/h |
|
|
Print-head cleaning system |
Automatic cleaning & auto capping system |
|
|
Interface |
USB2.0 |
|
|
RIP Software |
Maintop or Photoprint |
|
|
Power supply |
Ac220V 50/60Hz |
|
|
Working environment |
Temperature: 20°C~32°C; Humidity: 40%~60% |
|
The Printer we have 3 size. Print wide, 1800mm, 2500mm and 3200mm,more details, contact us, please.
What kind of materials it can print?
Satin fabric
Flag fabric
Display fabris
Backlit fabric
Blockout fabric
Stretch fabric
Flame retardant fabric
digital printing fabric
etc,. All these is Polyester!
this printer can use Epson DX5, Epson DX7,Epson 4720 printhead.
please contact us for more details.
Whats App: +8618640403631
Skype/Wechat: kajia99
Email: zhongyeprinter @hotmail.com
QQ: 252345001
Standard Export Wooden Package
Aircargo Sea-shipment Available Both
|
The same model in different size |
|||
|
Name |
ZY-S1800 |
ZY-S2500 |
ZY-S3200 |
|
Wide size |
1.8m(71inch) |
2.5m(98inch) |
3.2m(128inch) |
|
Size |
3.35m*1.1m*1.6m |
3.75m*0.9m*1.25m |
4.95m*0.9m*1.25m |
|
Gross weight |
1000KG |
1100KG |
1200KG |
|
Net weight |
750KG |
800KG |
900KG |
1.we offer one year warranty(excluding printhead and consumable parst). During this period ,if the boards are broken, please send back and we will repair them.
2.You can discuss operation and maintenance with our technician online support service by Skype, Teamvier etc. Remote control will be provided upon request.
3.there is Demo DVD in the spare part box together with printer to show you how to install and maintain the printer.
4.Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it
We are manufacturer ,Our products:
1 Large outdoor solvent printer (outdoors advertisement ,for banner, vinyl, sticker, mesh, oneway vision)
2 UV flat bed printer (glass, ceramic tile etc,.printing)
3 Eco solvent printer ( outdoor advertisement also, environmentally safe ink, high resolution )
4 Printing media (banner, vinyl, sticker,mesh,paper, film,)
5 Printing ink. (solvent, ecosolvent, UV, water base, pigment, sublimation)
6T shirt printer (direct print on T shirt)
7 Printer spare parts
Print head we have Seiko510, Seiko1020, Spectra Polaris 512, Starfire 1024,
Epson DX5, DX7, Richo.
we can offer you best price and good quality.
