Quick Details
-
Filling Accuracy:
-
± 1%
-
Voltage:
-
220V/110V 50HZ/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Youlian Machine
-
Dimension(L*W*H):
-
240*175*160mm
-
Weight:
-
5 KG
-
Product name:
-
Small electric CNC quantitative automatic filling machine
-
Material:
-
Stainless Steel 304/316
-
Filling accuracy:
-
more or less than 1%
-
Max flow rate:
-
3.2L/min
-
Max suck distance:
-
2m
-
Filling volumes range:
-
5ml-4000ml
-
Control method:
-
Manual and Automatic
-
Filling head:
-
1
-
Usage:
-
food, pesticide, cosmetic lubricant
-
Filling material:
-
oil, drinks, wine, vinegar etc.
Quick Details
-
Machinery Capacity:
-
0-20 Bottles/min
-
Packaging Material:
-
Glass, Plastic
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
± 1%
-
Voltage:
-
220V/110V 50HZ/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Youlian Machine
-
Dimension(L*W*H):
-
240*175*160mm
-
Weight:
-
5 KG
-
Product name:
-
Small electric CNC quantitative automatic filling machine
-
Material:
-
Stainless Steel 304/316
-
Filling accuracy:
-
more or less than 1%
-
Max flow rate:
-
3.2L/min
-
Max suck distance:
-
2m
-
Filling volumes range:
-
5ml-4000ml
-
Control method:
-
Manual and Automatic
-
Filling head:
-
1
-
Usage:
-
food, pesticide, cosmetic lubricant
-
Filling material:
-
oil, drinks, wine, vinegar etc.

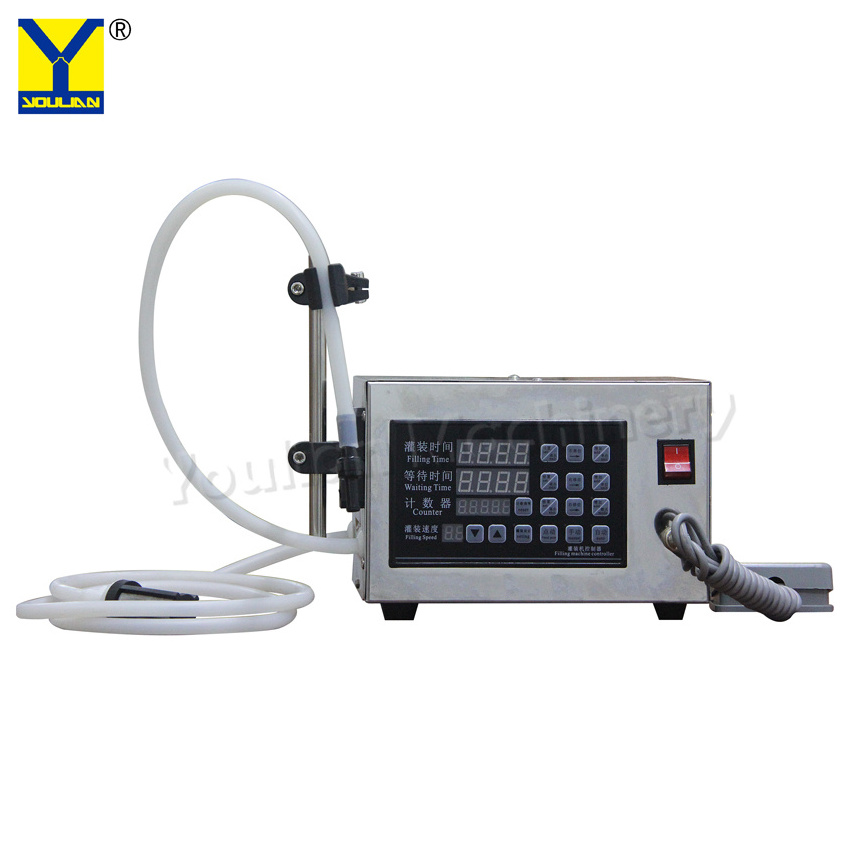

Product Description
Small
Automatic
Electric CNC Quantitative Filling Machine
The GFK-280 liquid filling machine adopts microcomputer to control the filling time, motor speed and other factors on the micro water pump, achieve uniform, repetitive error minimum large liquId ting method.
The pump head and motor are imported originally from Japan, having stable and reliable performance, and long service life, The magnetic pump head is driven by magnetic force. The pump head is connected with the motor without shafts, avoiding the worries of shaft seals breakdown causing splash and leakage, or excessive pump load causing motor burning To start or stop the machine by transducer, the filling time shall be accurate to 0. 01 second to guarantee the filling accuracy, and the error shall be less than 2%.
With full functions, the GFK-280 CNC quantitative filling machine can fill fluid manually and with pedal Intermittently, it can do interval fitting automatically, and the time interval is adjustable.
Product Paramenters
|
Model
|
GFK-280
|
|
Power Supply
|
220/110V 50/60HZ 40W
|
|
Control Method
|
Manual and Automatic
|
|
Filling Head
|
1
|
|
Filling Range
|
5-4000ML
|
|
Suck Diastance
|
200mm
|
|
Max Flow Rate
|
3.2L/min
|
|
Weight
|
5KG
|
Product Feature
> Automatic counting function, effectively control filling quantity
> LCD display, touch screen is very easy to operate
> Filling Accuracy is high, precise volume
> Reasonable design, made of stainless steel, meet GMP requirement
> Suitable for filling low-viscous liquid without pellets
> Integrates the advantage of self-suck pump and chemical pump
> Self suck, heat protect, stable working and continuous idle or load operate for long time
Product Structure
1.
Filling adjustment:
it is for setting time for each fluid filling, the time unit is second；
2.
Power switch of the filling machine:
when the machine stops running, please turn off the power；
3.
Manual and automatic filling switch button:
it is for changing the work status of the equipment (automatic: control manual control);
4. Manual filling button:
when the button pressed, it will fill fluid and stop running automatically；
5. Time interval for filling:
after filling a bottle of fluid, the machine will stop running automatically for a while for a second filling. This position is for adjusting the time interval ；
6. Filling speed adjustment:
it is for controlling the rotating speed of the ligh pressure pump, to control the fluid runoff in filling；
7. High precision miniature magnetic pump:
it is the power source of the filling machine, Which can start filling fluid when the pump starts running.
Application
Various kinds of imported materials synthesis and corrosion by pump body, pump body and motor pump body separation, no mechanical metal parts, no wear. With oil resistance, heat resistance, acid and alkali resistance, corrosion resistance, chemical resistance and other properties; widely used, almost all of the flow of a liquid can filling, especially is suitable for the oil, detergent, alkali liquid, high corrosion liquid filling.
Widely used in food, grease, cosmetics and other industries, is suitable for low viscosity, particle free liquid filling, small batch production
.
