Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leadings
-
Model Number:
-
Hydraulic
-
Warranty:
-
1 Years
-
Product name:
-
Truck Tire Changer
-
Type:
-
Hydraulic automatic
-
Color:
-
Orange
-
WEIGHT:
-
515KG
-
Size:
-
2030*1580*1000mm
-
Working pressure:
-
15 bar
-
Voltage:
-
110V/220V/380V
-
Tire type:
-
Tube/tubeless
-
Tire sizes:
-
14''-42''
-
MOQ:
-
1 Units
Quick Details
-
Motor Power:
-
2.2KW/3KW
-
Operating Pressure:
-
15 bar
-
Power Supply:
-
110V/220V/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leadings
-
Model Number:
-
Hydraulic
-
Warranty:
-
1 Years
-
Product name:
-
Truck Tire Changer
-
Type:
-
Hydraulic automatic
-
Color:
-
Orange
-
WEIGHT:
-
515KG
-
Size:
-
2030*1580*1000mm
-
Working pressure:
-
15 bar
-
Voltage:
-
110V/220V/380V
-
Tire type:
-
Tube/tubeless
-
Tire sizes:
-
14''-42''
-
MOQ:
-
1 Units
Specification
|
Tire type
|
Both tube tires and tubeless tires
|
|
Wheel diameter
|
14''-42''
|
|
Voltage
|
110V/220V/380V
|
|
Motor power
|
2.2KW
|
|
Max wheel weight
|
1600KG
|
|
Power resource
|
Hydraulic
|
|
Max Torque
|
5265N.m
|
|
Over dimensions
|
2500*2000mm
|
|
Machine weight
|
758KG
|
|
Max wheel width
|
1050mm
|
|
Max wheel diameter
|
2300mm
|
|
Overall dimensions
|
2500*2000mm
|
|
Color
|
Orange/optional
|
|
Package
|
Wooden box
|
Product Description

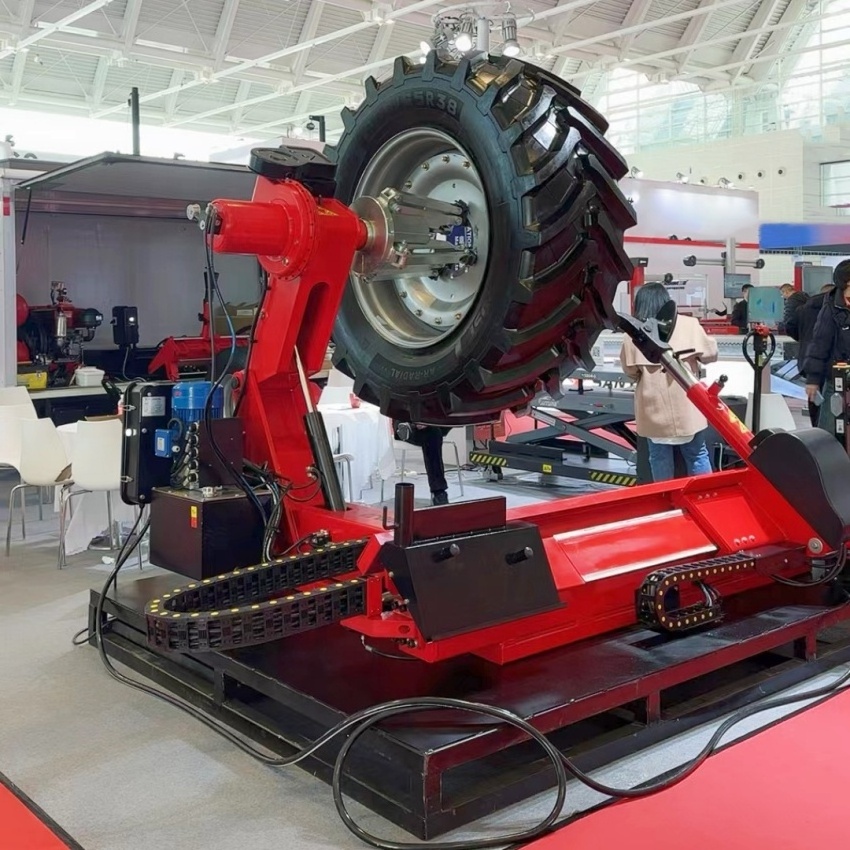

Automatic hydraulic tire changer machine for trucks and buses
Tyre changer has been specifically designed to demount high-speed bus and truck tyres with rims from 14"to 42". The system is driven by hydraulic station and cylinder, providing stable and reliable performance. Considering speed and protecting the tires, this tire changer includes a whole package of assisting parts to save energy. It's automatic type and working parts can change directions easily.
LD-980
Rim diameter: 14''-42'' (with extension to 56'' max ); max wheel weight 2000KG;
max tire diameter: 2500mm;
gear motor: 3.3KW;
machine weight: 1175KG; over dimensions: 2500*2300mm
LD-568
Rim diameter: 14''-26'';
max wheel weight 500KG;
max tire diameter: 1600mm; gear motor: 2.2KW;
machine weight: 588KG; over dimensions: 2500*2000mm
machine weight: 588KG; over dimensions: 2500*2000mm
Color is optional and customized
LD-598
Rim diameter: 14''-42''; max wheel weight 1600KG;
max tire diameter: 2300mm; gear motor: 2.2KW;
machine weight: 758KG;
max tire diameter: 2300mm; gear motor: 2.2KW;
machine weight: 758KG;
over dimensions: 2500*2000mm
Vertical type is optional
For 14''-24.5'' and 14''-42'' rims
Wooden box standard package for protection
Control methods is optional
Automatic control, hydraulic power widely used
for 14-42'' tires
HOW TO CHANGE A COMMERCIAL OR SEMI TRUCK TIRE
RAISE THE TRUCK UP BY FITTING A JACK UNDER IT.
You’re going to want a strong enough jack. A hydraulic bottle jack should work well. Look for some notches near the wheel wells that indicate a safe spot for the jack.
TURN THE LUG NUTS COUNTERCLOCKWISE WITH A LUG WRENCH TO LOOSEN THEM.
This might require a bit of elbow grease, as lug nuts can easily rust. If they’re fastened tightly, you might need to put your entire weight into it. Or, if you’re noticing a bit of rust making it harder to remove the lug nut, spray some WD-40 or similar lubricant to help.
REMOVE THE TIRE
You can choose the automatic or manual tire changer according to the tires you mainly change, such as 16/ 17.5/19.5/22.5/24.5/26.5 inches, either tube or tubeless tires.
MOUNT THE TIRE CAREFULLY AND SECURELY.
You want to line up the wheel’s holes with the lug bolts, then slide the wheel back onto them. Double wheels should both be fitted onto the log bolts.
Then, after correctly mounting the tire, reinsert the lug nuts and tighten by hand.
