Quick Details
-
Model Number:
-
PT124B-210
-
Material:
-
SS304
-
Name:
-

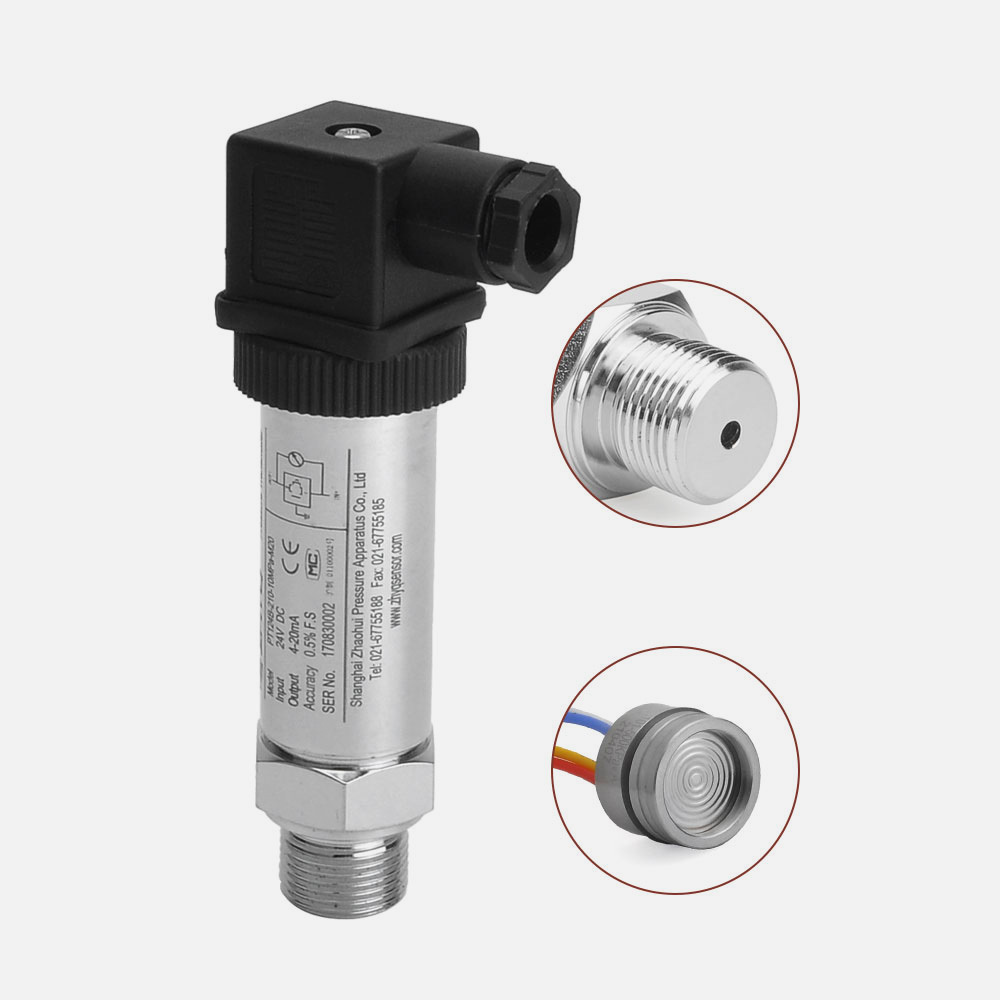

Strain gauge pressure transducer
-
pressure range:
-
-0.1MPa~0~0.1Mpa; 0~150MPa
-
output:
-
4-20mA, 0-5V, 0-10V
-
power supply:
-
24 (12~36) V DC
-
Electrical connector:
-
Bendix, Hischman DIN, M12*1, Gland lead
-
over load:
-
150%FS
-
temperature compensation:
-
0-75 ℃
-
Operating temperature:
-
-20-85 ℃
-
Accuracy:
-
0.5% FSO
-
Process Connection:
-
M20,G1/2 ,G1/4 optional
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PT124B-210
-
Material:
-
SS304
-
Name:
-
Strain gauge pressure transducer
-
pressure range:
-
-0.1MPa~0~0.1Mpa; 0~150MPa
-
output:
-
4-20mA, 0-5V, 0-10V
-
power supply:
-
24 (12~36) V DC
-
Electrical connector:
-
Bendix, Hischman DIN, M12*1, Gland lead
-
over load:
-
150%FS
-
temperature compensation:
-
0-75 ℃
-
Operating temperature:
-
-20-85 ℃
-
Accuracy:
-
0.5% FSO
-
Process Connection:
-
M20,G1/2 ,G1/4 optional
Product Paramenters
|
Name
|
Standard type pressure transmitter
|
|
Model
|
PT124B-210
|
|
Over load
|
150%FS
|
|
Burst pressure
|
300%FS
|
|
Output:
|
4-20mA, 1-5V/0-5V, 0-10V
|
|
Power supply
|
12~36VDC
|
|
Response time
|
<5ms
|
|
Combine error
|
0.5%FSO; 0.25%FS (Including Linearity, Repeatability & Hysteresis)
|
|
Repeatability
|
≤ +/- 0.2%FSO
|
|
Long term stability
|
≤ +/-0.2%FS/year
|
|
Pressure connection
|
M20×1.5,G1/2,G1/4,1/2NPT ( customer tailor )
|
|
Operating temperature
|
-20 ℃ ~ 80 ℃
|
|
Temperature compensation
|
0℃ ~ 60℃
|
|
Electrical connector
|
Bendix connector,Hirschman DIN4365 and Gland lead
|
Product Information
Features
1.Various industrial standard signal output
2.Various electrical connector available
3.Certain stock for shortening delivery time
4.High accuracy, free of calibration
5.compact dimension design
1. Mechanical Engineering
2. Water pressure, air pressure
3. Healthcare
4. Food and beverage processing
5. General industrial high precision control
Details Images
Strain Gauge Sensor Chips
1
. 0.25%FS ,0.5%FS optional
2
. Widely range : from 50~1000bar
3
. Fast response time: <5ms
4
. Burst pressure : 5 times
5
. Lower temperature drift
6
. Cost-effective
PCB Performance
1
. Independent R & D of anti-interference circuit
2
. Built in temperature compensation
3
. Various output : 4-20mA,0-5V,0-10V,
0.5-4.5V optional
0.5-4.5V optional
