- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
thread mounting
-
Description:
-

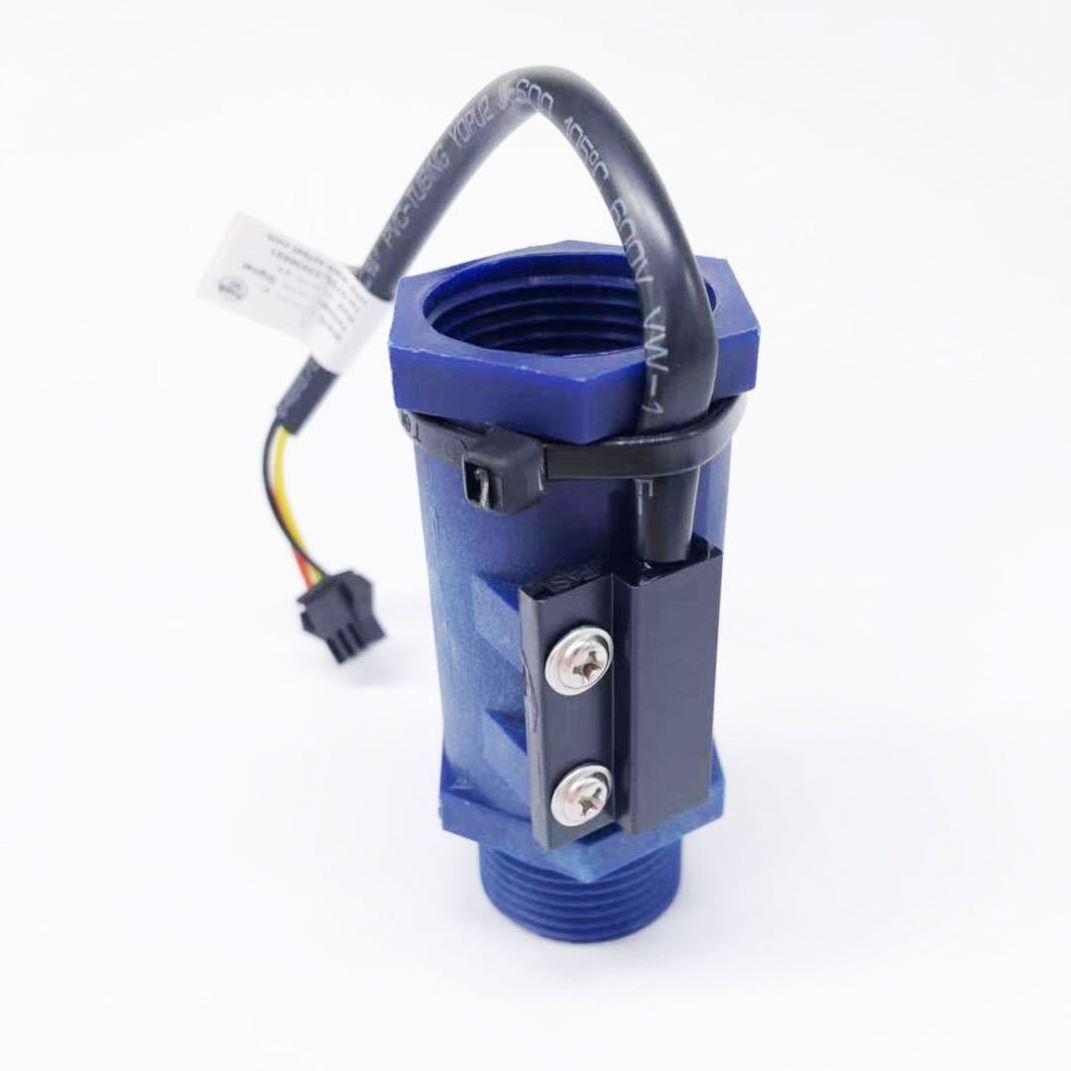

water flow sensor, hall effected turbine water flow sensor
-
Model Number:
-
FHS Series
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Theory:
-
pulse output
-
Output:
-
pulse signal
-
Material:
-
Nylon and fibre
-
Product Color:
-
Black
-
Product Type:
-
Latched Hall Element
-
Output Signal:
-
Pulse waves (Hz)
-
Working Voltage:
-
3V~18V
-
Max. Current:
-
25MA(12V)/15MA(5V)
-
Start-up Flow:
-
≥1L/Min.
-
Keyword:
-
hall effect flow sensor
-
Certification:
-
Rohs
Quick Details
-
Usage:
-
Detect flow rate, hall effect water flow sensor
-
Series:
-
liquid flow sensor for automatic equipment
-
Features:
-
industrial grade flow sensor
-
Mounting Type:
-
thread mounting
-
Description:
-
water flow sensor, hall effected turbine water flow sensor
-
Model Number:
-
FHS Series
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZFAST
-
Theory:
-
pulse output
-
Output:
-
pulse signal
-
Material:
-
Nylon and fibre
-
Product Color:
-
Black
-
Product Type:
-
Latched Hall Element
-
Output Signal:
-
Pulse waves (Hz)
-
Working Voltage:
-
3V~18V
-
Max. Current:
-
25MA(12V)/15MA(5V)
-
Start-up Flow:
-
≥1L/Min.
-
Keyword:
-
hall effect flow sensor
-
Certification:
-
Rohs
Product Description
|
Product Name
|
water flow sensor
|
|
Application
|
chillers,water heater and other circulating water system.
|
|
Material
|
Nylon,Stainless Steel,Brass
|
|
Flow range
|
2-30L/min
0.3-5L/min
|
|
Electrical Data
|
4-24 VDC
|
|
Max pressure
|
1 MPa ~ 2MPa
|
|
Cable type
|
UL1007-AWG24
|
|
Output
|
red wire connect to "+", black wire connect to "-", yellow wire is pulse signal output.
|
|
Connection size
|
1/4'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''.
|
|
Sensor
|
Hall sensor
|
