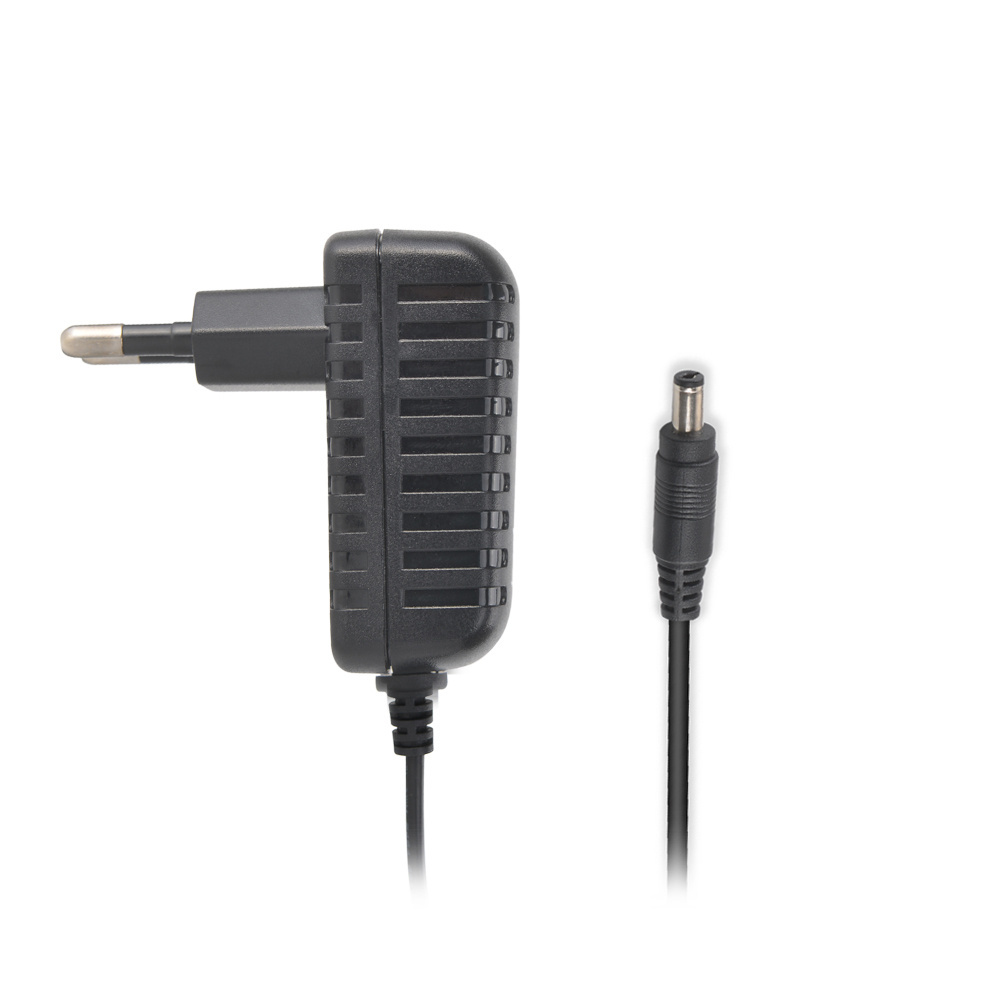

0.5a Ac Dc Power Adapter Ac/dc switch 6w 12 Volt 0.5 Amp Input 100-240v Output Interchangeable Type 12v 500ma Adaptor 230v-50hz

0.5a Ac Dc Power Adapter Ac/dc switch 6w 12 Volt 0.5 Amp Input 100-240v Output Interchangeable Type 12v 500ma Adaptor 230v-50hz

FOB Reference Price: Get Latest Price

≥100 Pieces

US $2.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: YHY-12000500

product name:: Interchangeable type 12v 500ma adaptor 230v-50hz

Input:: AC 100-240v 50-60hz

output:: 12v 0.5a 6w

Country plug:: AU EU US UK version

DC power cord length:: 1.2m

DC tip:: OD5.5*ID2.5*L10mm(center positive)

Type:: Wall Plug

Certification:: UL CE ROHS GS KC SAA FCC doeVI

warranty:: 3years

EMC:: YES

Quick Details

Output Type:: DC

Place of Origin:: Guangdong, China

Brand Name:: YHY

Model Number:: YHY-12000500

product name:: Interchangeable type 12v 500ma adaptor 230v-50hz

Input:: AC 100-240v 50-60hz

output:: 12v 0.5a 6w

Country plug:: AU EU US UK version

DC power cord length:: 1.2m

DC tip:: OD5.5*ID2.5*L10mm(center positive)

Type:: Wall Plug

Certification:: UL CE ROHS GS KC SAA FCC doeVI

warranty:: 3years

EMC:: YES

Features

Meet ROHS

> Universal Input 100-240 VAC

> Modified and Custom Design Available

> Output with Low Ripple Noise

> 3Year Warranty

Electrical

> Dielectric

> Burn-In Test

> Leakage Current

> Efficiency

> MTBF

3000VAC

100% full load

0.21mA

DOE VI

30000Hrs

AC Input

> Voltage Range: 90-264 VAC

> Input Frequency: 47-63Hz

> Input Current: 200mA max

> Inrush Current: 30A max

> Efficiency: 82% min

DC Output

> Voltage Range: 12V

> Current Range: 0.01A-0.5A

> Inrush Current: +1% Voltage Max

> Power: 6W Max.

Mechanical

> Case Dimension (L*W*H mm)

Wall-Mounted

AU: 68x40x50mm

EU: 68x40x63mm

US: 68x40x49mm

UK: 68x40x55mm

Interchangeable: 74x40x38.5mm

Safety Approval

UL cUL ETL CE FCC PSE SAA C-tick CCC

Application

Wall mount / Desktop Switching Power Supply

* Meet relative safety request, energy label programs.

* Universal Input : 100 – 240V

* You can select wall mount / desk top types per your need.

* Varied DC plug provided for customer to meet customer request.

* Usage : cell phone, small DC consumer electronics, pet relative appliances, required DC voltage / current- driven appliances, external hard drive, related computer peripheral equipment and other required information built-in power supply of related equipment.
