Magnetic Electric Lock For Sliding Lock Door

FOB Reference Price: Get Latest Price
≥1 Pieces
US $8.35
≥20 Pieces
US $8.2
≥50 Pieces
US $8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Material:
copper
Holding force:
280kg/600LB
Voltage:
DC 12V
Current:
380-430mA
Working temperature:
-10 to 55 Celsius degree
Humidity:
0 to 95%
Working mode:
power-on to lock
Dimensions: Magnet( LxWx H):
Dimensions: Magnet( LxWx H)
Armature Plate( LxWxH):
18 * 3.9 * 1.1cm / 7 * 1.5 * 0.4in

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
ACM
Product Name:
Magnetic Electric lock For Sliding Lock Door
Material:
copper
Holding force:
280kg/600LB
Voltage:
DC 12V
Current:
380-430mA
Working temperature:
-10 to 55 Celsius degree
Humidity:
0 to 95%
Working mode:
power-on to lock
Dimensions: Magnet( LxWx H):
Dimensions: Magnet( LxWx H)
Armature Plate( LxWxH):
18 * 3.9 * 1.1cm / 7 * 1.5 * 0.4in

ACM-Y280EM lock

Lock size: 250 * 47 * 25mm
Armature plate: 180 * 38 * 11mm
Holding force: 280kg (600lbs)
Voltage: 12V DC
Safety function: built-in voltage spike suppressor
Opening mode: 90° swinging door

Suitable for wooden doors, glass doors, metal doors, and fireproof doors
Authority certificates: CE and MA
Quality guarantee: three years
Net weight: 2kg
Standard packing: 10 pieces/box

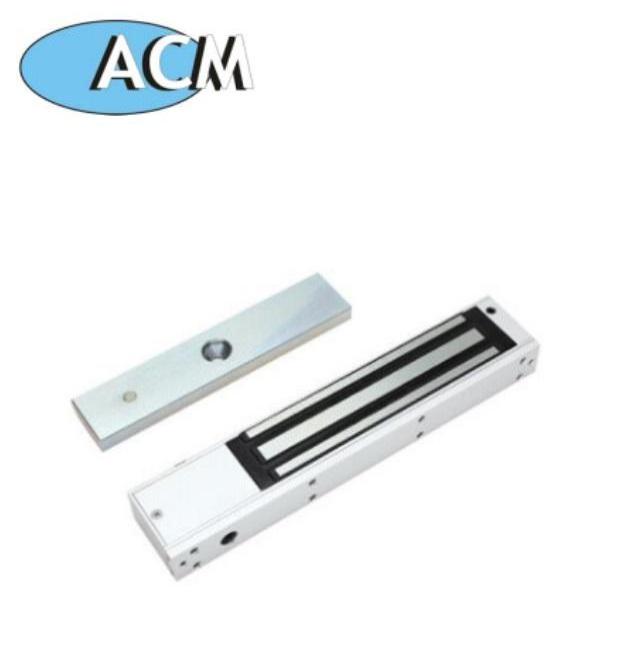

Above photo is the 4 views of this EM lock . It is made by copper with good quality .

Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .
Y280 is with 5 wire connection without timer default . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .
