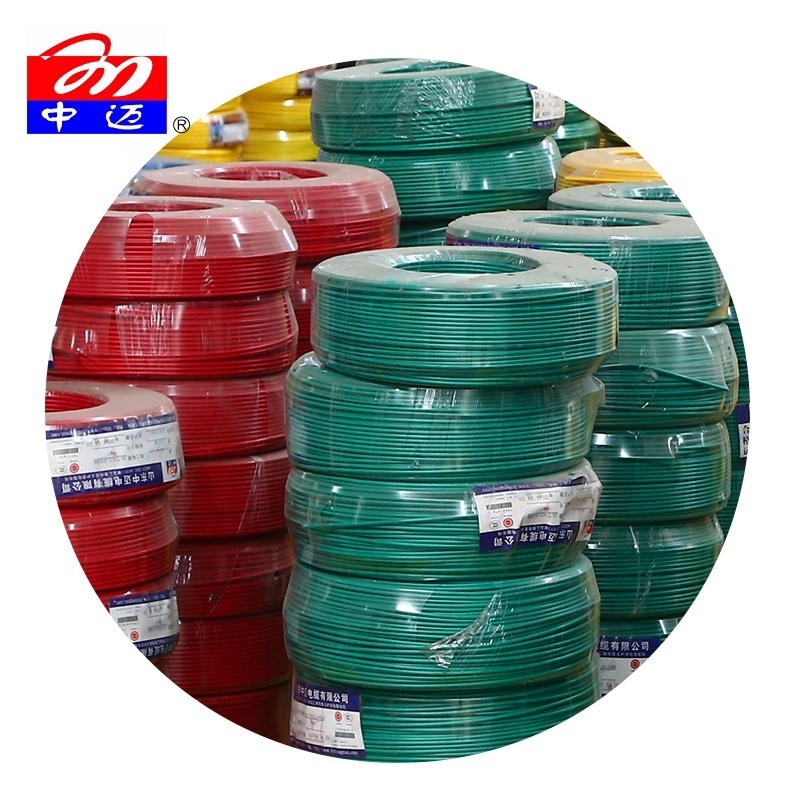

Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire
Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire

Electric Copper Wire Cable 1.5mm Cable Price China Cable Industry Manufacture Wholesale PVC 1 Core / 2 Core/3 Core BVR Wire

FOB Reference Price: Get Latest Price
≥500 Meters
US $0.12
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
PVC
Place of Origin:
Shandong, China
Brand Name:
zhongmai
Model Number:
BVR wire
Product name:
solid copper conductor single core control cable
Certificate:
CCC/CE /ISO9001 /ISO14001
Core:
1 Core / 2 Core/3 core
Standard:
GB/T12706-2008
Insulation:
XLPE PVC
Insulation Color:
Green-Yellow + Brown + Blue
Usage:
Electricity Distribution Lines
Brand:
zhongmai
Package:
paper box
Sample:
free sample

Quick Details

Insulation Material:
PVC
Application:
Industrial
Conductor Material:
Copper
Jacket:
PVC
Place of Origin:
Shandong, China
Brand Name:
zhongmai
Model Number:
BVR wire
Product name:
solid copper conductor single core control cable
Certificate:
CCC/CE /ISO9001 /ISO14001
Core:
1 Core / 2 Core/3 core
Standard:
GB/T12706-2008
Insulation:
XLPE PVC
Insulation Color:
Green-Yellow + Brown + Blue
Usage:
Electricity Distribution Lines
Brand:
zhongmai
Package:
paper box
Sample:
free sample
Factory : Mengshan Science and Technology Park, Lanshan District, Linyi City, Shandong Province, China
Why Choose It
— It can be used for more than 70 years

— High-purity copper core, saving electricity and reducing costs
— Own brand, directly sold by the factory, the quality is standard , you can use it with confidence
Single-core wire with high safety
PVC insulation Can be customed 99%Pure copper M ultiple colour
DESCRIPTION

Application

The wire conductors are used for fifixed protected installations : i.e. ligths or control gear (from offifices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC .

Installation

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, The wire is made to facilitate processing while pulling in.
Cross section [mm²]
Construction
[NO./mm]
Insulation
thickness
[mm]
Diameter
[mm]

Approx. weight [kg/km]
1G1.5
1/1.38
0.7
2.78
19.9
1X1.5
1/1.38
0.7
2.78
19.9
1G2.5
1/1.78
0.8
3.38
31.5
1X2.5
1/1.78
0.8
3.38
31.5
1G4
1/2.25
0.8
3.85
46.2
1X4
1/2.25
0.8
3.85
46.2
1G6
1/2.76
0.8
4.36
65.7
1X6
1/2.76
0.8
4.36
65.7
All drawings, designs, specifications, plans and particulars of weights, size and dimensions contained in the technical or commercial documentation is indicative only and shall
H07VR electrical wires 1.5mm 2.5mm 4mm 6mm 10mm 16mm 20m for outdoor
DESCRIPTION

Application

H07V-R are insulated stranded copper conductors, used for fifixed
protected installations indoors for power supply or lightings (from offifices, domestic or commercial buidings...) with voltage up to 1000V AC or 750V DC.

Installation

In conduit, insulated support, ducts... in covered an dry place.
Permissible currentare given for conductor laid alone in insulating tube on a wall temperature at 30°C .
Cross section
[mm²]
Construction
[NO./mm]
Insulation
thickness
[mm]
Diameter
[mm]

Approx. weight
[kg/km]
1G1.5
7/0.52
0.7
2.96
21.3
1X1.5
7/0.52
0.7
2.96
21.3
1G2.5
7/0.68
0.8
3.64
34.4
1X2.5
7/0.68
0.8
3.64
34.4
1G4
7/0.85
0.8
4.15
49.5
1X4
7/0.85
0.8
4.15
49.5
1G6
7/1.04
0.8
4.72
70
1X6
7/1.04
0.8
4.72
70
1G10
7/1.35
1
6.05
116.8
1X10
7/1.35
1
6.05
116.8
1G16
7/1.70
1
7.1
175.8
1X16
7/1.70
1
7.1
175.8
Manufacture Profile
ABOUT  US
---- More than 20 years of wire and cable production experience

----- Annual sales US $25,375302

----- Self-branded Products

----- Supplier assessment procedures
Professional certification
FAQ
● Are you manufacturer?
Yes. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shandong.
● About customized services
Yes,It can be customized, special products based on QTY.The product model, LOGO and package are provided without any problem.
● What about the quality and price of the products ?
Our will provide you with competitive price and suitable quality to meet your needs.
● Can you send samples/free of charge/free of charge?
The sample is free, but you will pay for the charge of Fedex or DHL , you can use your account.
● About MOQ
It depends.most of time, MOQ of single pure copper wire is 100meters. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.
● How is delivery time and product quality guaranteed?
By Trade Assurance going to pay on Alibaba,and Alibaba is a witness to our cooperation.
