Quick Details
-
Brand Name:
-
Lonking
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
3670x1165x2130mm
-
Weight (KG):
-
3600 kg
-
Rated capacity:
-
2500kg
-
Load center:
-
500mm
-
Max.lifting height:
-
Customized
-
Tire size front:
-
7.00-12-12PR
-
Tire size rear:
-
6.00-9-10PR
-
Min.turning radius:
-
2300mm
-
Wheelbase:
-
1650mm
-
Tires type:
-
Pneumatic
-
Fuel tank capacity:
-
50L
-
Power type:
-
Dieseil
Quick Details
-
Min. Lifting Height:
-
.
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Lonking
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
3670x1165x2130mm
-
Weight (KG):
-
3600 kg
-
Rated capacity:
-
2500kg
-
Load center:
-
500mm
-
Max.lifting height:
-
Customized
-
Tire size front:
-
7.00-12-12PR
-
Tire size rear:
-
6.00-9-10PR
-
Min.turning radius:
-
2300mm
-
Wheelbase:
-
1650mm
-
Tires type:
-
Pneumatic
-
Fuel tank capacity:
-
50L
-
Power type:
-
Dieseil
Product Description
Product Features:
• Fluent and novel shape, with car design elements counterweight, strong personality, dynamic
• Reasonable oil layout and pipeline design can reduce oil pressure loss and prevent oil temperature from being too high
• High strength integrated engine housing and one piece stamping molding safety frame for safer operation
• With ergonomic design, the control device is placed low and on the right side to greatly reduce the fatigue of the operator
• Dual suspension structure reduces excessive engine vibration, making the operation more comfortable
• Integral steering device, more sensitive directivity, more smooth operation, more stable quality
• Fluent and novel shape, with car design elements counterweight, strong personality, dynamic
• Reasonable oil layout and pipeline design can reduce oil pressure loss and prevent oil temperature from being too high
• High strength integrated engine housing and one piece stamping molding safety frame for safer operation
• With ergonomic design, the control device is placed low and on the right side to greatly reduce the fatigue of the operator
• Dual suspension structure reduces excessive engine vibration, making the operation more comfortable
• Integral steering device, more sensitive directivity, more smooth operation, more stable quality
Specification:
|
LG20DT
|
LG25DT
|
LG30DT
|
LG35DT
|
||||
|
Identification
|
|
|
|
||||
|
Power type
|
Diesel
|
|
|
||||
|
Rated Capacity(kg)
|
2000
|
2500
|
3000
|
||||
|
Load Center(mm)
|
500
|
|
|
||||
|
Dimensions
|
|
|
|
||||
|
STD Max. height(with bacjrest)(mm)
|
3965
|
|
4210
|
||||
|
STD Max. Lifting Height(mm)
|
3000
|
|
|
||||
|
Overhead Guard height(mm)
|
2130
|
|
2150
|
||||
|
Overall length(with fork)(mm)
|
3670
|
|
3850
|
||||
|
Wheelbase(mm)
|
1650
|
|
1750
|
||||
|
Front Overhang(mm)
|
448
|
|
487
|
||||
|
Rear Overhang(mm)
|
500
|
|
|
||||
|
Min.ground clearance(Frame/Mast)(mm)
|
160/135
|
|
165/132
|
||||
|
Overall width(mm)
|
1165
|
|
1250
|
||||
|
Adjusting range of fork(outside)(mm)
|
240-1040
|
|
255-1055
|
||||
|
STD Fork size(mm)
|
1070*120*40
|
|
1070*125*45
|
||||
|
Front wheel tread(mm)
|
970
|
|
1030
|
||||
|
Rear wheel tread(mm)
|
980
|
|
|
||||
|
Min.turning radius(mm)
|
2300
|
|
2520
|
||||
|
Min aisle with for pallet 1000*1200,crossways
|
3950
|
|
4200
|
||||
|
Min aisle with for pallet 800*1200,lengthways
|
4148
|
|
4407
|
||||

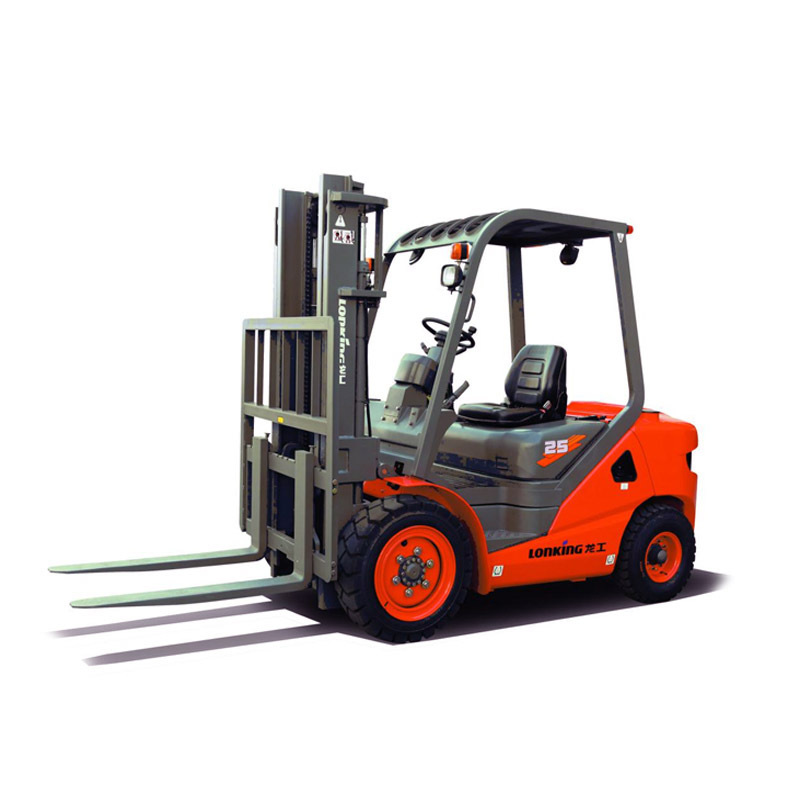

Photos:
