Quick Details
Quick Details
-
Model Number:
-
B18H c
-
Brand Name:
-
AIAVD
-
Place of Origin:
-
Guangdong, China
Specification
|
Technical
|
|
|
|
HDMI Compllance
|
HDMI 1.4b
|
|
|
HDCP Compliance
|
HDCP 1.4
|
|
|
Frequency
Bandwidth |
297MHz[10.2Gbps]
|
|
|
Video Resolutions
|
480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz ,
720p@50/60Hz,1080i@50/60Hz,1080p@24/30/50/60Hz, 4K@30Hz@8bit(YCbCr4:4:4),4K@60Hz@8bit(YCbCr4:2:0) |
|
|
Color Space
|
RGB,YCbCr 4:4:4,YCbCr 4:2:2
|
|
|
Color Depth
|
30bit,36bit,48bit per pixel
|
|
|
Digital audio format
|
LPCM 2/5.1/7.1CH,Dolby Digital,DTS 5.1,Dolby Digital+,Dolby
TrueHD,DTS-HD Master Audio,Dolby Atmos,DTS:X |
|
|
ESD Protedtion
|
Human body model—±8kV(air-gap discharge)&±4kV(contact
discharge |
|
|
Connections
|
|
|
|
HDMI Splitter Input
Ports |
1x HDMI Type A [19-pin female]
|
|
|
HDMI Splitter Output
Ports |
8x HDMI Type A [19-pin female]
|
|
|
Mechanical
|
|
|
|
Housing
|
Metal Enclosure
|
|
|
Color
|
Black
|
|
|
Dimensions
|
118 mm[W]x250mm[D]x32mm[H]
|
|
|
Welght
|
720g
|
|
|
Power Supply
|
DC 5V 2A
|
|
|
Power Co nsumption
|
10W(Max)
|
|
|
Operation
Temperature |
32-104°F/0-40°℃
|
|
|
Storage temperature
|
-4-140°F/-20-60°℃
|
|
|
Relative Humidity
|
20-90%RH (no condensation)
|
|
Introduction
Features
☆

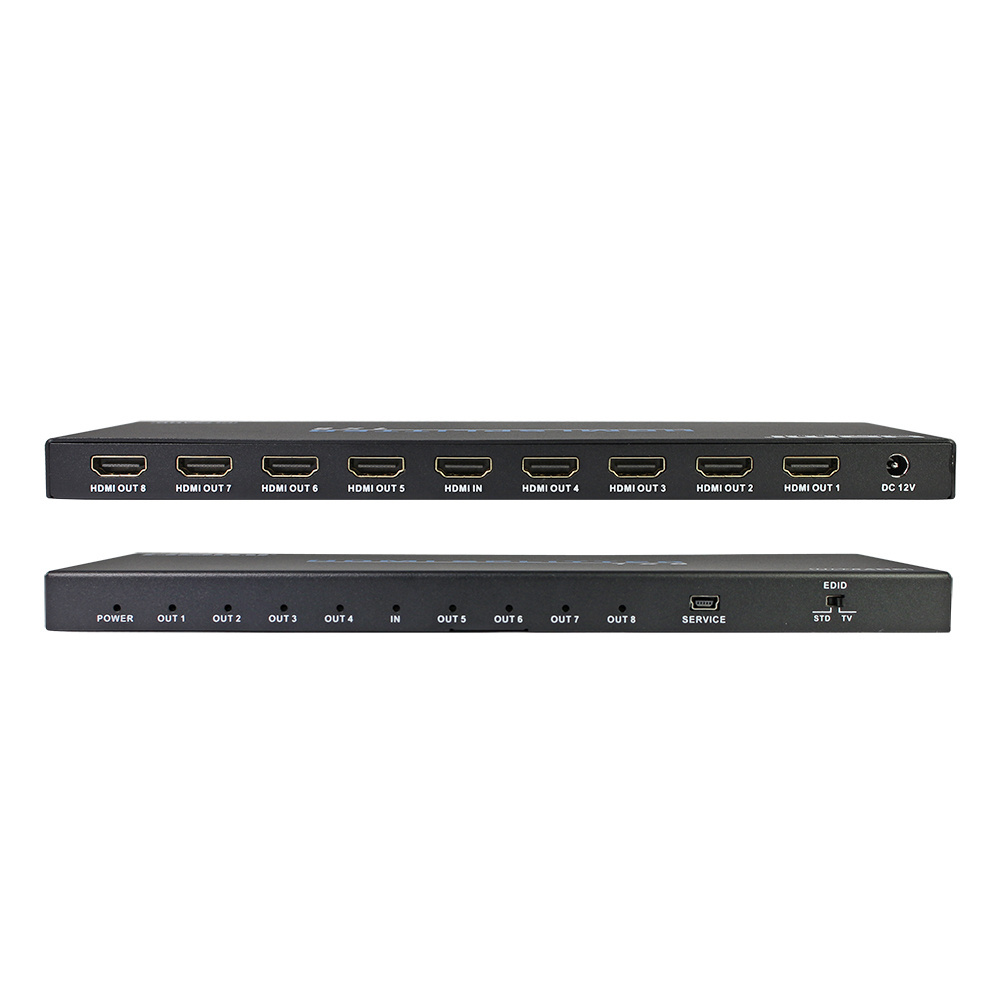

Split 1 HDMI input signal to 8 HDMI sink devices. HDCP 1.4 protocol compliant.
☆
3D HDMI 1.4b video format support.
☆
3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.
☆
Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz.
☆
Support deep color 30bit, 36bit, 48bit per pixel.
☆
Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC 3/DSD.
Product Description
Packing & Delivery
Package Contents
① 1 x HDMI Splitter ② 1 x 5V2A DC Power Supply adapter
③
1 x Operation Manual
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
