Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Juwei
-
Model Number:
-
CTF3.5-4
-
Voltage:
-
220V380V
-
Noise Level:
-
84dB (A)
-
Power:
-
550W
-
Air Flow:
-
4000m³/h
-
Speed:
-
1450r/min
-
Full pressure:
-
100Pa
-
Blade diameter:
-
14inch
-
Material:
-
Thicken steel with powder coated
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
-
Electric Current Type:
-
AC
-
Mounting:
-
Duct Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Juwei
-
Model Number:
-
CTF3.5-4
-
Voltage:
-
220V380V
-
Noise Level:
-
84dB (A)
-
Power:
-
550W
-
Air Flow:
-
4000m³/h
-
Speed:
-
1450r/min
-
Full pressure:
-
100Pa
-
Blade diameter:
-
14inch
-
Material:
-
Thicken steel with powder coated

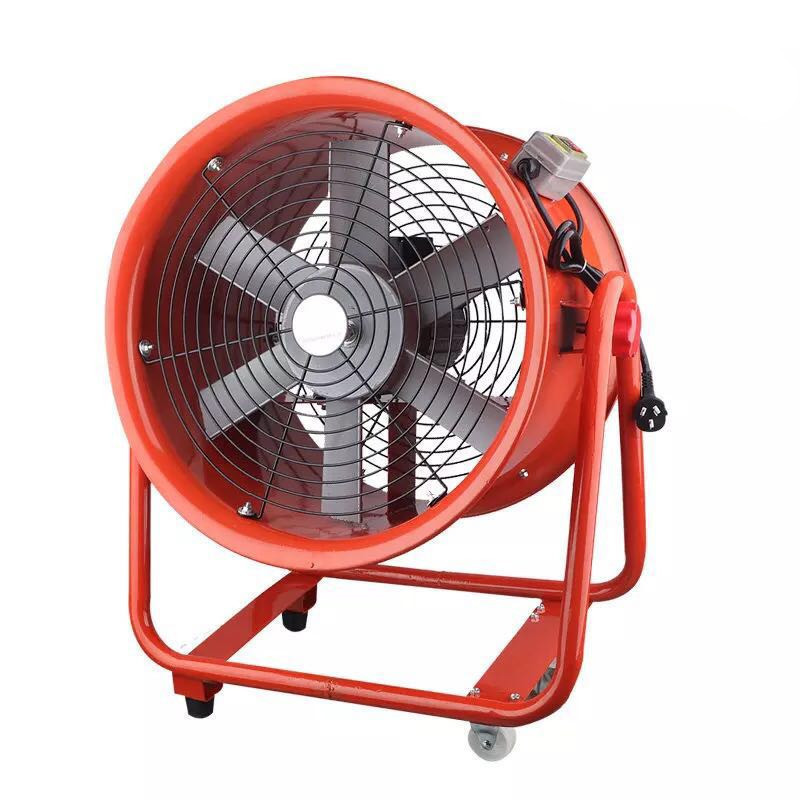

8/10/12/14/16/20/24 inch portable high speed ventilating blower exhaust fan
Specification
|
Model No.
|
Blade Dia.
(inch)
|
Speed
(r/min)
|
Voltage
(V)
|
Rated power
(W)
|
Flow Rate
(m³/h)
|
Full Pressure
(Pa)
|
|
CTF2-2
|
8''
|
2800
|
220V/380V
|
120w
|
1300
|
140
|
|
CTF2-4
|
8''
|
1450
|
220V/380V
|
60w
|
600
|
20
|
|
CTF2.5-2
|
10''
|
2800
|
220V/380V
|
250w
|
2100
|
215
|
|
CTF2.5-4
|
10''
|
1450
|
220V/380V
|
90w
|
1000
|
35
|
|
CTF3-2
|
12''
|
2800
|
220V/380V
|
370w
|
3000
|
230
|
|
CTF3-4
|
12''
|
1450
|
220V/380V
|
120w
|
2000
|
59
|
|
CTF3.5-2
|
14''
|
2800
|
220V/380V
|
1100w
|
6000
|
260
|
|
CTF3.5-4
|
14''
|
1450
|
220V/380V
|
550w
|
4000
|
100
|
|
CTF4-2
|
16''
|
2800
|
220V/380V
|
1500w
|
11000
|
320
|
|
CTF4-4
|
16''
|
1450
|
220V/380V
|
550w
|
5870
|
167
|
|
CTF5-2
|
20''
|
2800
|
220V/380V
|
750
|
18700
|
380
|
|
CTF5-4
|
20''
|
1450
|
220V/380V
|
2200w
|
10000
|
200
|
Product Description
1. Ventilator shell: made of hot-dipped galvanized sheet which has spray painted automobile coating on its surface.
2. Impeller: made of aluminum casting alloy, 7 blades.
3. Fan guard: dusting, zinc coating.
4. Switch: Press button.
5. With handles for easy carrying.
6. Motor: It is wrap around with international standard copper wire.
7. With radiating rib aluminum casting integrated motor shell.
2. Impeller: made of aluminum casting alloy, 7 blades.
3. Fan guard: dusting, zinc coating.
4. Switch: Press button.
5. With handles for easy carrying.
6. Motor: It is wrap around with international standard copper wire.
7. With radiating rib aluminum casting integrated motor shell.
Packing & Delivery
Plywood crate with polyfoam lining, packing by wooden box.
