Quick Details
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V, 50/60HZ, 3PH
-
Dimension(L*W*H):
-
4.1*2.3*2.6M
-
Weight (KG):
-
1500
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Feature:
-
Widely Used
-
Working area:
-
1500 *3000*200mm
-
Spindle:
-
3.5KW HQD air cooling spindle
-
Dust collector:
-
1.5kw new type double bags dust collector
-
Motor and drive:
-
Stepper motor FL118 and Yako2811 bigger drivers
-
Inverter:
-
3.7KW Fuling inverter
-
Working table:
-
T-slot & vacuum working table
-
Vacuum pump:
-
7.5kw double stage air vacuum pump
-
Tool sensor:
-
Auto tool sensor
Quick Details
-
Working Table Size(mm):
-
1500*3000
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V, 50/60HZ, 3PH
-
Dimension(L*W*H):
-
4.1*2.3*2.6M
-
Weight (KG):
-
1500
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Feature:
-
Widely Used
-
Working area:
-
1500 *3000*200mm
-
Spindle:
-
3.5KW HQD air cooling spindle
-
Dust collector:
-
1.5kw new type double bags dust collector
-
Motor and drive:
-
Stepper motor FL118 and Yako2811 bigger drivers
-
Inverter:
-
3.7KW Fuling inverter
-
Working table:
-
T-slot & vacuum working table
-
Vacuum pump:
-
7.5kw double stage air vacuum pump
-
Tool sensor:
-
Auto tool sensor
Product Description

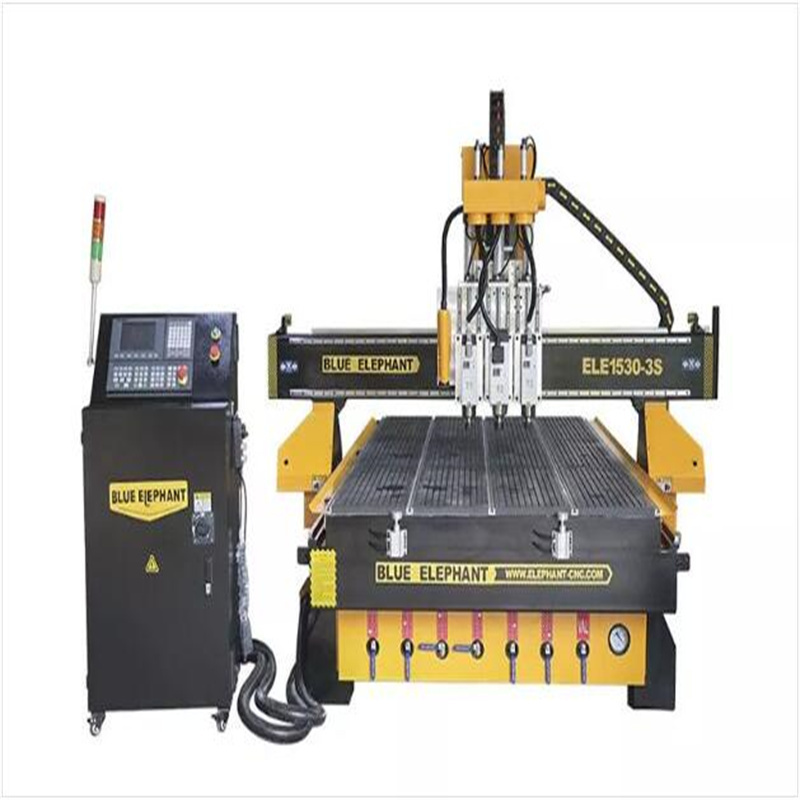

Good quality 4 axis cnc rotary machine router 1530 1325 1330 cnc milling machine automatic tool changer
Features:
This multi head CNC router with three spindles, which can work independently to promote the working efficiency. And the amount of spindle can be customized according to your processing requirements.
* With 3 spindles (two vertical, one horizontal) equipped, the workpieces can be processed consecutively.
* With a large tube lathe adopted, the machine has good processing stability.
* Equipment with a T-slot vacuum working table, the machine has strong adsorption power to hold workpieces.
* Adopting the DSP control system, it’s easy for the beginner to operate.
* With a large tube lathe adopted, the machine has good processing stability.
* Equipment with a T-slot vacuum working table, the machine has strong adsorption power to hold workpieces.
* Adopting the DSP control system, it’s easy for the beginner to operate.
Technical parameters
|
Description
|
Parameter
|
|
Model
|
ELECNC-1530
|
|
Working area
|
1500 *3000*200mm
|
|
Spindle
|
3.5KW HQD air cooling spindle
|
|
Dust collector
|
1.5kw new type double bags dust collector
|
|
Motor and drive
|
Stepper motor FL118 and Yako2811 bigger drivers
|
|
Control system
|
DSP A123 control system
|
|
Inverter
|
3.7KW Fuling inverter
|
|
Working table
|
T-slot & vacuum working table
|
|
Vacuum pump
|
7.5kw double stage air vacuum pump
|
|
Tool sensor
|
Auto tool sensor
|
Sample & Application
1.
Wood Furniture Industry
: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry : Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry : A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
2. Advertising Industry : Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry : A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Details part
Spindle
40% customer choice
Customer feedback
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Company information
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the
CE, SGS, ISO9001 etc
. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Learn more about us, welcome to click https://elecnclaser.en.alibaba.com/
Learn more about us, welcome to click https://elecnclaser.en.alibaba.com/
