SIEMENS 3NE1224-0 Oil With For High Voltage Fusing Diffused Silicon Wafer Chemical Fuse Switches

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15

Free Inquiry

Customized Request

Quick Details

Product Description

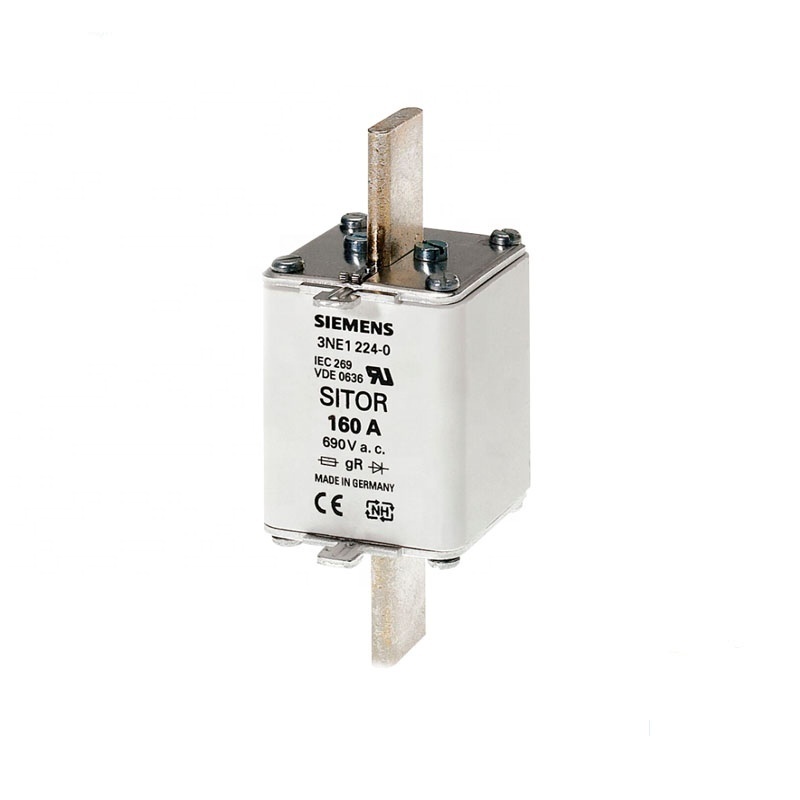

SITOR fuse link, with blade contacts, NH1, In: 160 A, gS, Un AC: 690 V, Un DC: 250 V, front indicator

Model
Product brand name		SENTRON
Product designation		SITOR fuse link
Design of the product		With blade contacts
Design of an identification indicator		front indicator
Design of the switching contact		With blade contacts, silver-plated
Design of the fuse link		SITOR, LV HRC design
General technical data
Size of fuse system / acc. to DIN EN 60269-1		NH1
Operating class of the fuse link		gS
Varying load factor (WL)		1
Supply voltage
Type of voltage		AC/DC
Current / at AC / rated value		160 A
Supply voltage
at AC / rated value		690 V
at DC		250 V
Switching capacity
Switching capacity current
acc. to IEC 60947-2 / rated value		100 kA
Dissipation
Power loss [W]		24 W
Power loss [W]
for rated value of the current / at AC / in hot operating state / per pole		24 W
maximum		24 W
Product details
Product description		Not non-interchangeable
Mechanical Design
Mounting position		Any, preferably vertical
Environmental conditions
Ambient temperature		-20 ... +50 °C
Environmental category		-20 to +50 at 95% relative humidity
Certificates
Reference code
acc. to DIN EN 61346-2		F
acc. to DIN EN 81346-2		F
