Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Other
-
Product Name:
-
hRC50 Extended Blade End Mill
-
Application:
-
CNC Milling Machining
-
Suitable for:
-
Cooper.Cast Iron.Carbon Steel.Mould Steel
-
Usage:
-
Metal Machining
-
Flute:
-
4Flutes
-
Shank Diameter:
-
S4-20mm
-
Blade Length:
-
C4-70mm
-
Blade Diameter:
-
D1-20mm
-
Overall Length:
-
L50-100mm
-
Hardness:
-
93 HRA
Quick Details
-
Material:
-
Carbide, Tungsten Cobalt Alloy
-
Coating:
-
TiAIN
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Other
-
Product Name:
-
hRC50 Extended Blade End Mill
-
Application:
-
CNC Milling Machining
-
Suitable for:
-
Cooper.Cast Iron.Carbon Steel.Mould Steel
-
Usage:
-
Metal Machining
-
Flute:
-
4Flutes
-
Shank Diameter:
-
S4-20mm
-
Blade Length:
-
C4-70mm
-
Blade Diameter:
-
D1-20mm
-
Overall Length:
-
L50-100mm
-
Hardness:
-
93 HRA
Product Description

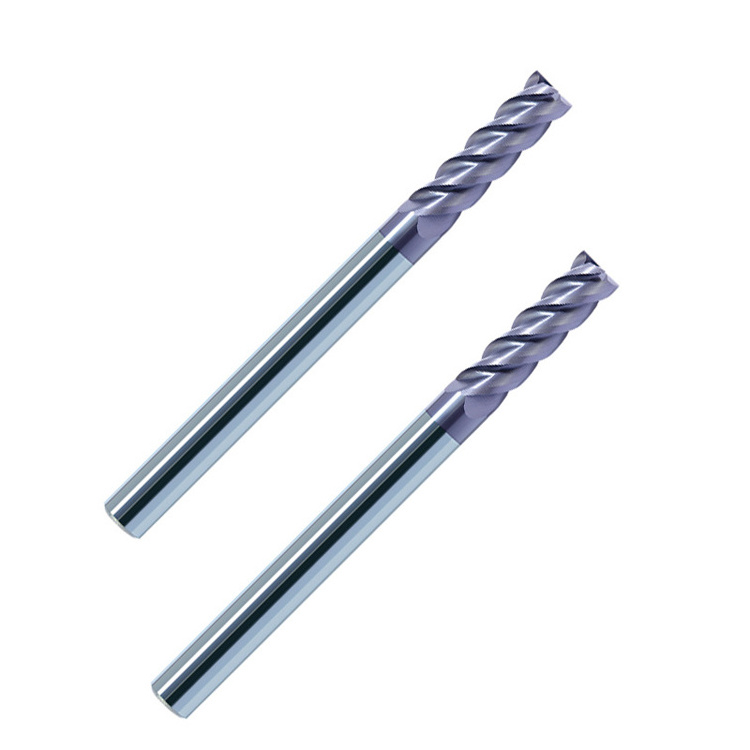

Solid Carbide 4 Flute Square End Mill Extended Blade
Description:
◎Hardness: 93 HRA
◎Helix angle: 35°
◎ Shank diameter range: S4-20mm
◎Blade length range: C4-70mm
◎Blade diameter range: D1-20mm
◎Full length range: L50-100mm
◎Materials: Imported wear-resistant hard alloy, fine particle tungsten steel
◎Coating: Titanium-containing nanocomposite coating (TiAlN)
◎Applicable processing hardness: HRC30-HRC50
◎Applicable processing materials: copper, iron, castings, steel parts, etc. within HRC30-HRC50°
◎Processing cooling conditions: air cooling, liquid cooling, water cooling
◎Product features: good rigidity, easy chip removal, sharp non-stick knife, high gloss, high machining accuracy, suitable for forming milling, U milling,
◎Shaft form: round handle
◎Applicable machine tools: CNC machining centers, engraving machines, etc.
Notes:
·Finishing End Mills are used in metalworking applications for removing material or burrs from a workpiece and leaving behind a smooth finish. 4 Flute Finishing End Mills are used for center cutting (plunge cut) operation and when chip removal in slots & grooves is a problem. A wide range of coatings such as Titanium Nitride (TiN), Titanium Carbon Nitride (TiCN), Titanium Aluminum Nitride (TiAlN or AlTiN), and Diamond finishes permit maximum performance and value for a particular application or material. Both standard and metric shank and cutting diameters are available.
Specification
|
item
|
value
|
|
Warranty
|
Other
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Province
|
Guangdong
|
|
Brand Name
|
Other
|
|
Material
|
Carbide, Tungsten Cobalt Alloy
|
|
Coating
|
TiAIN
|
|
Product Name
|
hRC50 Extended Blade End Mill
|
|
Application
|
CNC Milling Machining
|
|
Suitable for
|
Cooper.Cast Iron.Carbon Steel.Mould Steel
|
|
Usage
|
Metal Machining
|
|
Flute
|
4Flutes
|
|
Shank Diameter
|
S4-20mm
|
|
Blade Length
|
C4-70mm
|
|
Blade Diameter
|
D1-20mm
|
|
Overall Length
|
L50-100mm
|
|
Hardness
|
93 HRA
|
Customer Service
Product packaging
1. Put the gun drill in a plastic box specially for end mill
2. Add cushioning padding in the plastic box
3. Wrap the sponge or other cushioning material in the plastic box with the end mill
4. Packed in carton or wooden box for shipping
