use 6 head anti drip filling machine to filling the 5 strips tubes,make the filling more accurate
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
AC 220V 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengxing
-
Dimension(L*W*H):
-
1300*900*1550mm
-
Weight:
-
350 KG
-
After wooden packing:
-
350KGS
-
Frequency:
-
20KHZ
-
Date coding:
-
one set in free charge
-
Use For:
-
plastic ampoules ultrasonic filling and sealing machine
-
Max.Tube length:
-
140mm
-
Over look:
-
stainless steel body
-
Filling range:
-
1-3ml
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Liquid Pouch Filling Packing Machine
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Oil, Milk, Water, Beer, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
AC 220V 50/60HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengxing
-
Dimension(L*W*H):
-
1300*900*1550mm
-
Weight:
-
350 KG
-
After wooden packing:
-
350KGS
-
Frequency:
-
20KHZ
-
Date coding:
-
one set in free charge
-
Use For:
-
plastic ampoules ultrasonic filling and sealing machine
-
Max.Tube length:
-
140mm
-
Over look:
-
stainless steel body
-
Filling range:
-
1-3ml
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Liquid Pouch Filling Packing Machine
Machine details
|

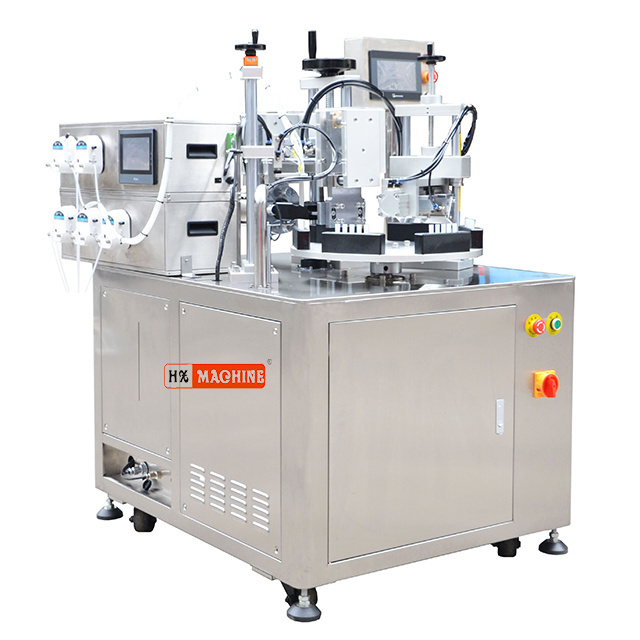

SPECIFICATIONS FOR ULTRASONIC TUBE FILLING SEALING MACHINE
|
|
|
|
|||
|
Model
|
HX-005
|
|
|
|||
|
Filling range
|
1-3ml
|
|
|
|||
|
Output power
|
2600W
|
|
|
|||
|
Voltage
|
AC220V/single phase 50/60HZ
|
|
|
|||
|
Machine weight
|
350kgs
|
|
|
|||
|
After packaging
|
280kgs
|
|
|
|||
|
Machine size
|
1300*900*1550mm
|
|
|
|||
|
Max Sealing Length
|
140mm
|
|
|
|||
|
Control Style
|
PLC control
|
|
|
|||
|
Time adjust
|
electronic adjust
|
|
|
|||
|
Packaging
|
Plywooden case packaging
|
|
|
|||
turntable working stations.
6 working stations for filling sealing,and cutting.more efficient .
Anti drop filler
filling mahcine
can connect the filling tank directly.more Convenience
use PLC control panel to operate and adjust the filling range ,ake the filling more accurate
Main Features
1. Easy to operate and maintain.
2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, not need wait the heat time .
Advantages
1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1)
