Quick Details
-
Voltage:
-
220V/110V, AC 220V±10% 50/60Hz
-
Current:
-
7A
-
Rated Capacity:
-
Nope
-
Rated Duty Cycle:
-
Nope
-
Dimensions:
-
475x480x420mm
-
Use:
-
SMD reworking
-
Weight:
-
21kg
-
Certification:
-
CE
-
Total power:
-
1250W
-
Top heater:
-
IR 400W
-
Size of topr heater:
-
80mm*80mm
-
Bottom heater:
-
IR 800W
-
Size of bottom heating:
-
180mm*180mm
-
PCB size:
-
Max. 400*305 mm
-
BGA chip size:
-
Max. 70*70 mm
-
Positioning:
-
V-groove PCB
-
Temperature accuracy:
-
±2°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACHI
-
Model Number:
-
Mobile Repair Digital BGA Hot Air Smd Rework Soldering Station
-
Voltage:
-
220V/110V, AC 220V±10% 50/60Hz
-
Current:
-
7A
-
Rated Capacity:
-
Nope
-
Rated Duty Cycle:
-
Nope
-
Dimensions:
-
475x480x420mm
-
Use:
-
SMD reworking
-
Weight:
-
21kg
-
Certification:
-
CE
-
Total power:
-
1250W
-
Top heater:
-
IR 400W
-
Size of topr heater:
-
80mm*80mm
-
Bottom heater:
-
IR 800W
-
Size of bottom heating:
-
180mm*180mm
-
PCB size:
-
Max. 400*305 mm
-
BGA chip size:
-
Max. 70*70 mm
-
Positioning:
-
V-groove PCB
-
Temperature accuracy:
-
±2°C

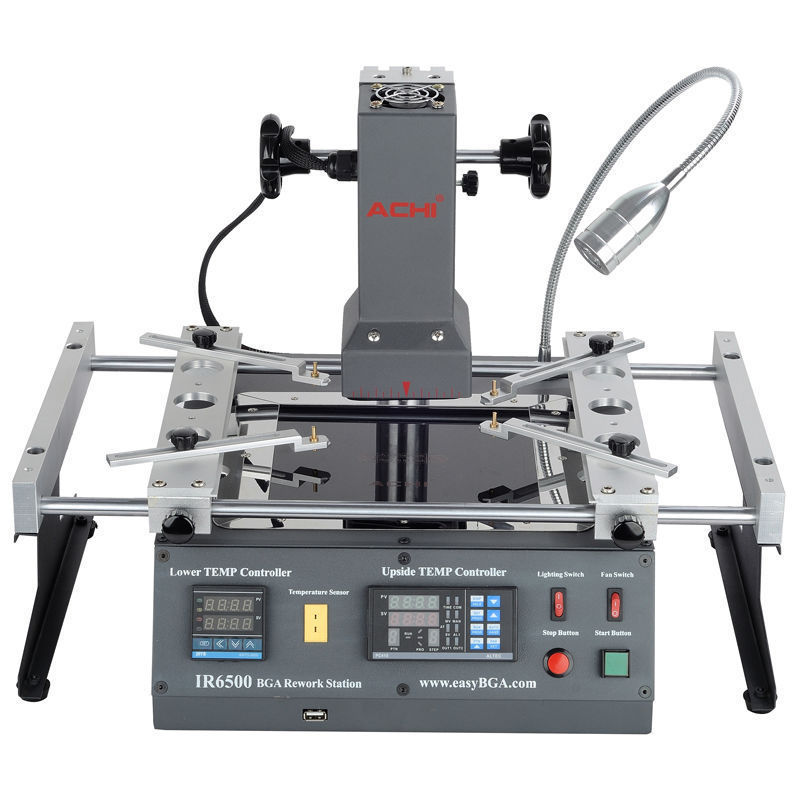

ACHI IR6500 Mobile Repair Digital BGA Hot Air Smd Rework Soldering Station
Highlights of this ACHI IR6500 Mobile Repair Digital BGA Hot Air Smd Rework Soldering Station
1. USB interface.
2. 2 temperature zones
3. With tempering glass,more uniform heating
4. Hot sale model, praised by many customers.
5. Low cost.
6. T echnical support is always available
7. Original Factory, look for worldwide distributors
Where this ACHI IR6500 Mobile Repair Digital BGA Hot Air Smd Rework Soldering Station can be used for ?
1. For repairing mobile phones
2. For repairing notebooks/ laptops/computers
3. For repairing game consoles, especially for XBOX360/PS3/WII
4. For repairing any other mainboards with size from 22x22mm to 500x400mm
5. For preheating chips or mainboards before soldering to improve rework efficiency.
Specifications of this ACHI IR6500 Mobile Repair Digital BGA Hot Air Smd Rework Soldering Station
| Total power | 1250W |
| Voltage | AC220V±10% 50/60Hz |
| Top heater | IR 400W |
| Size of topr heater | 80mm*80mm |
| Bottom heater | IR 800W |
| Size of bottom heating | 180mm*180mm |
| PCB size | Max. 400*305 mm |
| BGA chip size | Max. 70*70 mm |
| Positioning | V-groove PCB |
| Temperature control | K Type temperature Sensor and Closed loop |
| Temperature accuracy | ±2°C |
| Dimension | 475*480*420mm |
| Net weight | 16 KG |
Main Structure of this ACHI IR6500 Mobile Repair Digital BGA Hot Air Smd Rework Soldering Station
More details of this ACHI IR6500 Infrared Station Soldering Machine Price Good
Packaging
Packaging material: Carton case
Packaging size and weight: 47*43*47cm / 20KG
Shipping
A. 3-8 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK & Germany Warehouse to European union countries.No need to pay for customs duties and VAT.
C. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1. We provide you the friendly English User manual for free.
2. 24 hours technical support by email or calling.
3. Warranty: 1 year free, 2-3 years cost price and free technical support always.
4. Free training to make sure you master the operating of this machine.
5. Videos of operating the machine are available.
User Manual
We provide you with a friendly English user manual for free.
Warranty
1 year free, 2-3 years cost price and free technical support always.
MOQ
1 set welcome, you may order more afer a nice try.
Vedio
We can provide all kinds of vedios in pre & after sale service.
How to buy
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
