Quick Details
-
Weight (KG):
-
1000
-
microwave output power:
-
30KW
-
microwave frequency:
-
2450MHz±50MHz
-
Overall dimensions:
-
8200(L)*1300(W)*2000(H)mm
-
microwave area:
-
3800(L)*920(W)*520(H)mm
-
Conveying width:
-
PTFE belt 700mm
-
Conveyor belt height above ground:
-
800±50MM
-
transfer speed:
-
1-6M/min Frequency
-
Transfer power:
-
1.5KW Frequency
-
Microwave area:
-
3800*920*520(mm)
-
Cooling method:
-
wind/water cooling
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Baixin
-
Weight (KG):
-
1000
-
microwave output power:
-
30KW
-
microwave frequency:
-
2450MHz±50MHz
-
Overall dimensions:
-
8200(L)*1300(W)*2000(H)mm
-
microwave area:
-
3800(L)*920(W)*520(H)mm
-
Conveying width:
-
PTFE belt 700mm
-
Conveyor belt height above ground:
-
800±50MM
-
transfer speed:
-
1-6M/min Frequency
-
Transfer power:
-
1.5KW Frequency
-
Microwave area:
-
3800*920*520(mm)
-
Cooling method:
-
wind/water cooling
|

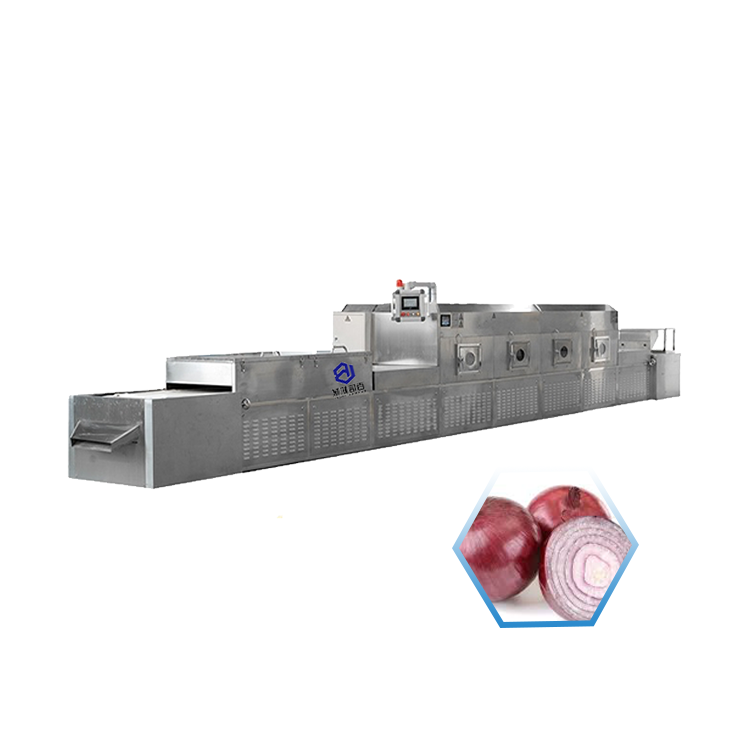

Onion Drying Machine Ir Tunnel Dryer Saffron Vacuum Microwave Drying Machine
|
Onion Microwave Dryer is used to dry Tenebrio Molitor by microwave.Microwave dryer is automatic temperature control system, automatic microwave density control system, heating time control system, automatic alarm system,optional PLC control system,air/water cooling system to ensure 24 hours continuous work of the equipment.
Onion Microwave drying equipment, also known as microwave dryer, is a microwave machine used to dry food, medicinal materials, wood,building materials, cardboard and other materials. Compared with traditional drying equipment, the characteristics of microwave drying equipment are: Fast drying rate, high efficiency, environmental protection and energy saving. Its working principle is to use the penetrating heating of microwave to increase the temperature of the material, so that the water in the material is vaporized and evaporated, and the evaporated water vapor is discharged by the moisture removal system to achieve the purpose of drying the material.
|
Model |
Output Power |
Microwave Frequency |
Size |
Setting Temperature |
Moisture dehydration capacity |
|
BX-6 |
6kw(adjustable) |
2450MHz±50Hz |
4500*820*1750mm |
0-200℃ |
6kg/h |
|
BX-30 |
30kw(adjustable) |
2450MHz±50Hz |
8200*1300*1750mm |
0-200℃ |
30kg/h |
|
BX-60 |
60kw(adjustable) |
2450MHz±50Hz |
12000*1800*1750mm |
0-200℃ |
60kg/h |
|
BX-100 |
100kw(adjustable) |
2450MHz±50Hz |
13900*2000*1800mm |
0-200℃ |
100kg/h |
|
BX-300 |
300kw(adjustable) |
2450MHz±50Hz |
35000*2000*2400mm |
0-200℃ |
300kg/h |
Q1. Are you a manufacturer?
Yes, BAIXIN is a leading manufacturer in China, dedicated to the microwave dryer for more than 11 years.
Q2. What is the application scope?
Deep processing for black solider,flour weevil,scorpion,cocoon,earth yuan and other protozoa. Drying and curing for peanuts,melon seeds,hazelnuts,chestnut,pine nuts,pistachios,beans and other cereal nuts roasted seeds. Drying and sterilization for mushrooms,fungus,black fungus and other mushrooms. All kinds of roots and leaves of herbal medicine and medicine Pieces drying and sterization. Dehydration,fixing and extraction for tea,honeysuckle,chrysanthemum,roses and other flowers and leaves buds drying,dehydrating,color-fixation and extracting.
Q3. How to insall the machine?
For the type of All-in-one, there is no need to assemble, but for the one needed assembling, we will provide a training course or the support provided by our local partner.
Q4. What is the after-sales service?
One-year guarantee for the whole set and lifelong after-sales service.
In order to suggest you a proper machine, could you please kindly tell us some information as follows?Thanks in advance.
1, Which materials will you process mainly?
2, How many kilos fresh materials will you process per day?how about the moisture before and after drying?
3, Do you need only dryer or also need other extra processing machine?such as grinding,packing machine
Please leave your email or phone number for further contact!
