Quick Details
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
G
-
Model:
-
GXZD-B-600/1000
-
Power:
-
AC 180-245V 50/60Hz
-
Main output mode:
-
DC 0-2A or 3A
-
Auxiliary output:
-
DC 0-5V(MAX 10MA) analog signal output
Quick Details
-
Condition:
-
New
-
Type:
-
Tension Controller
-
Weight (KG):
-
4.5
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
G
-
Model:
-
GXZD-B-600/1000
-
Power:
-
AC 180-245V 50/60Hz
-
Main output mode:
-
DC 0-2A or 3A
-
Auxiliary output:
-
DC 0-5V(MAX 10MA) analog signal output

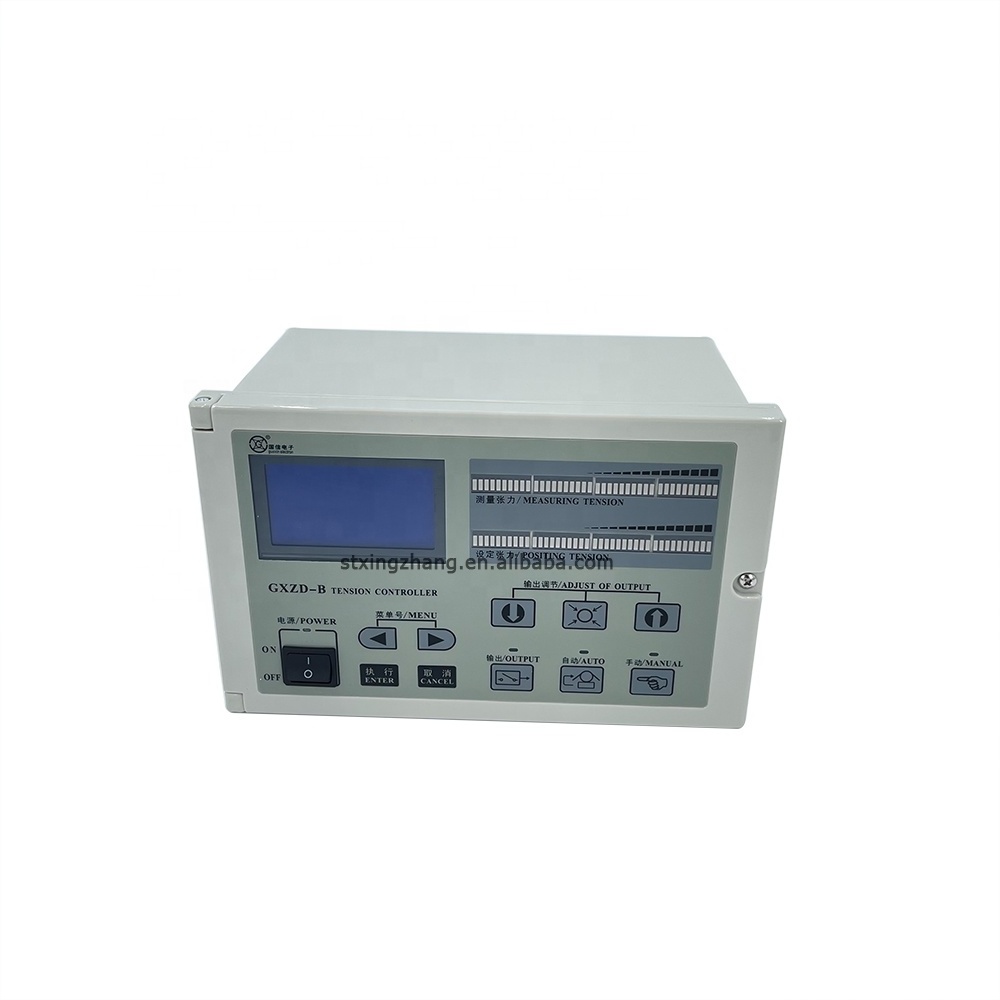

Fully Automatic Tension Controller
GXZD-B-600/1000 automatic constant tension controller is mainly composed of tension detector, high-precision A/D, D/A converter, high-performance single chip microcomputer and so on. The automatic constant tension controller based on tension detector measurement to the coil after comparing with the targets set by the tension, the microcontroller PID operation automatically regulate D/A output and change the magnetic powder clutch, brake of exciting current, or the torque of the servo motor to realize constant tension of coil, which can be widely used in all kinds of precision measurement and control of tension occasions, It has flexible and wide applicability.
Features:
1. The LCD can be displayed in Chinese or English
2. Automatic and manual switching is simple and convenient
3. The wiring of tension detector is simple and convenient
4. Convenient parameter setting
5. With double position shaft changing output function
| Model | GXZD-B-600 | GXZD-B-1000 |
| Measurement accuracy | <±1 Newton | |
| Sampling speed | 100 milliseconds | |
| Power source | AC 180-245V 50/60Hz | |
| Main output mode | DC 0-2A constant current output(adaptive load impedance 8-12Ω) | DC 0-3A constant current output(adaptive load impedance 8-12Ω) |
| Auxiliary output | DC 0-5V(MAX 10MA) analog signal output | |
| Overall dimensions | 245×155×140(mm)(width × height × depth) | |
| Installation size | 228×148×120(mm)(width × height × depth) | |
Notice
It can be sold with or without the sensors
