Quick Details
-
Brand Name:
-
T AND M
-
Use:
-
FTTH/FTTx/HFC
-
Warranty Time:
-
1 year
Quick Details
-
Type:
-

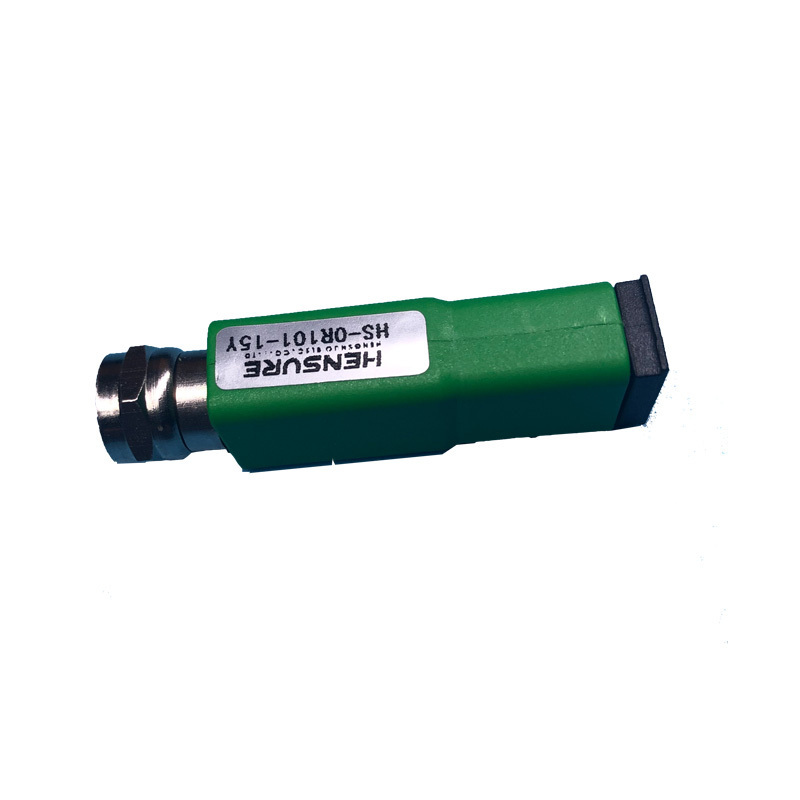

passive FTTH optical node
-
Model Number:
-
OR101Y
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
T AND M
-
Use:
-
FTTH/FTTx/HFC
-
Warranty Time:
-
1 year
Instruction
1.No Power required
2.Work bandwidth 45~862MHz
3.Output Level=68d BμV (Pin=-1dBm)
4.OR101:CATV operating wavelength 1100~1620nm.
5.OR101-W: built-in 1310/1490nm filter,suitable for single-fiber triple wavelength system,CATV Operating wavelength 1550nm.
2.Work bandwidth 45~862MHz
3.Output Level=68d BμV (Pin=-1dBm)
4.OR101:CATV operating wavelength 1100~1620nm.
5.OR101-W: built-in 1310/1490nm filter,suitable for single-fiber triple wavelength system,CATV Operating wavelength 1550nm.
Features
1.Brushed aluminum shell with good heat dispersion.
2.Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach -23dBm, and -15dBm for analog signal.
3.AGC control range 0~-15dBm, output level keeps unchanged.
4.Low consumption design and total consumption ≤2w, high reliable switching power supply with optical inspection circuit.
5.The output level can be adjustable within the range 0 -18dB, output level more than 80dBuV.
6.Realize the 5 v input port feeding way of power supply
Specification
|
Optic feature
|
Unit
|
Index
|
Supplement
|
|
CATV
Work wavelength |
(nm)
|
1310+1490&1310+1490+1550
|
|
|
Channel Isolation
|
(dB)
|
≥40
|
1550nm & 1490nm
|
|
Responsibitity
|
(A/W)
|
≥0.85
|
1310nm
|
|
|
|
≥0.9
|
1550nm
|
|
Receiving power
|
(dBm)
|
+2~-14
|
Digital TV (MER>29dB)
|
|
Optical return loss
|
(dB)
|
≥55
|
|
|
optical connector
|
|
SC/APC
|
|
|
RF Feature
|
|
Female-F
Male-F |
|
|
Work bandwidth
|
(MHz)
|
45~1050
|
|
|
Output level
|
(dBμV)
|
>68
|
Digital TV (Pin=-1dBm)
|
|
Return loss
|
(dB)
|
≥14
|
47~862MHz
|
|
Output impedance
|
(Ω)
|
75
|
|
|
Output port number
|
|
1
|
|
|
RF tie-in
|
|
F-Female
|
|
|
OMI
|
(%)
|
4.3
|
|
