Quick Details
-
Voltage:
-
380V or as your voltage
-
Dimension(L*W*H):
-
As per model
-
Weight:
-
580 KG
-
Function:
-
Removing Impurities/Grading/Sieving
-
Frame Material:
-
SUS304/316L Or carbon steel
-
Layer(s):
-
1-5 Layers
-
Sieve frame:
-
Steel or wooden
-
Granularity:
-
0.074-60mm
-
Motor:
-
Two Vibration Motors
-
Capacity:
-
Up to 20 tons
-
Amplitude:
-
3-4.5mm
-
Certification:
-
CE
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
380V or as your voltage
-
Dimension(L*W*H):
-
As per model
-
Weight:
-
580 KG
-
Function:
-
Removing Impurities/Grading/Sieving
-
Frame Material:
-
SUS304/316L Or carbon steel
-
Layer(s):
-
1-5 Layers
-
Sieve frame:
-
Steel or wooden
-
Granularity:
-
0.074-60mm
-
Motor:
-
Two Vibration Motors
-
Capacity:
-
Up to 20 tons
-
Amplitude:
-
3-4.5mm
-
Certification:
-
CE

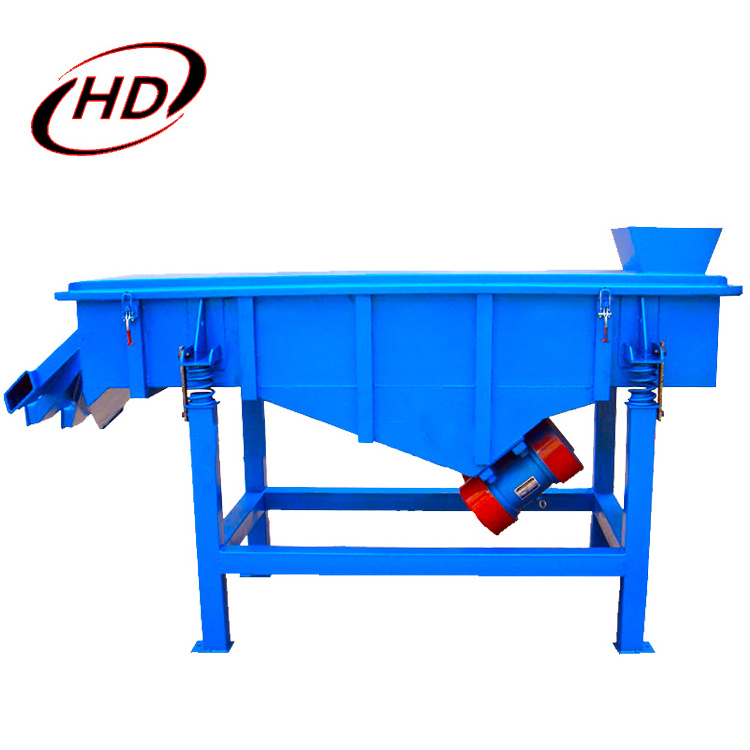

Linear vibration screen sieve rectangular separator equipment for sand gravel sawdust
Our advantages on vibrating screen:
1).OEM service.
2).More than 30 years experience of sieving industry.Specialized in various vibrating screen,like Rotary Vibrating Screen,Ultrasonic Vibrating Screen,Linear(Rectangle)Vibrating Screen,Tumbler Screen,Rectangle swing Screen,Mining Vibrating Screen,Dewater Screen etc.
3).Delivery on time.
4).3% to 10% discounts for new customer.(Based on the quantity.)
5).Professional engineer team help you choose a best machine for your project.
DZSF Linear Vibrating Screen is one kind of universal light vibrating screen equipment which adopts the vibration motor as the vibration source to make the material jump in straight line way. It can be equipped with single or multi-screen to achieve the grading, removing impurity, separation, testing, washing,selecting and dehydration etc.
Working Principle
Uses double vibrating motors to drive,when two motors rotate synchronously and reversely,exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck.Under the influence of the resultant force of exciting force and materials itself weight,materials are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.
1)Chemical industry : resin, pigment, cosmetic, coatings, Chinese medicine powder
2)Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce, syrup
3)Metallurgy, Mine industry : aluminum powered, copper powder, ore alloy powder, welding rod powder
4)Medicinal industry: all kinds of medicine
5)Waste treatment : disposed oil, disposed water, disposed dye waste water, active carbon
| Model | Mesh size (mm) | Feeding Size (mm) | Amplitude (mm) | Layers | Power(KW) |
| DZSF-520 | 500*2000 | 0.074-10 | 4-10 | 1-6 | 2*(0.4-0.75) |
| DZSF-525 | 500*2500 | 0.074-10 | 4-10 | 1-6 | 2*(0.4-0.75) |
| DZSF-1020 | 1000*2000 | 0.074-10 | 4-10 | 1-6 | 2*(0.4-0.75) |
| DZSF-1025 | 1000*2500 | 0.074-10 | 4-10 | 1-6 | 2*(0.4-1.1) |
| DZSF-1235 | 1200*3500 | 0.074-10 | 4-10 | 1-6 | 2*(1.1-2.2) |
| DZSF-1535 | 1500*3500 | 0.074-10 | 4-10 | 1-6 | 2*(1.1-2.2) |
| DZSF-2050 | 2000*5000 | 0.074-15 | 4-10 | 1-6 | 2*(2.2-3.7) |
Notes:The parameters above is just for reference,and model models pls inquiry us directly.
1. ) If you have ever used the machine,Pls give me the model directly.
2.)If you never used this machine or you wanna us to recommend,Pls give me the information as below.
2.1)The material you wanna to sieve.
2.2).The capacity(Tons/Hour) that you require?
2.3)The layers of the machine?And the mesh size of each layer.
2.4)Your local voltages
2.5)The special requirement?
Packaging:Wooden case or as your requirement.
Delivery Time:We promise that the standard model 2-3 working days.No-standard model,3-5 working days.
Xinxiang Hongda Vibration Equipment Co., Ltd. is establish in 1986.We mainly specialize in vibration motors,vibration equipment,conveying equipment.Products have been exported to dozens of countries like USA,UK,Spain,Canada,Thailan etc.We firmly believe that QUALITY FOR SURVIVAL,CREDIBILITY FOR DEVELOPMENT.Welcome to visit to us!
Our products as followings:
1) Vibration Equipment:XZS Rotary vibrating screen,DZSF Linear Vibrating screen,dehydration vibrating screen,YA/YK round vibrating screen.ZDP Vibrating platform.YBS Tumbler screen.
2) Vibrating motor:JZO vibrating motor,Y-Series vibrating motor,TZDC vibrating motor,VB vibrating motor,XVM vibrating motor,YZUL vertical vibrating motor.ZSF silo vibrator.explosion-proof vibration motor
3) Conveyor equipment:TD-75 Rubber belt conveyor,DY mobile belt conveyor,DJ sidewall belt conveyor,LS screw conveyor,GX screw conveyor,WLS shaftless screw conveyor,
4) Bucket elevator:TD Belt type bucket elevator,TH chain type bucket elevator,NE Plate chain bucket elevator.
5) Feeding equipment:JL rotary feeder(impeller feeder),GZG Vibrating feeder,DK disk feeder.GZ electromagnetic feeder.
1).We reply to you within 1 hours in working time.
2).Help you confirm the suitable model for your projects.
3).The drawing can be sent if needed.We can help you design the whole line based on your projects.
4).12-month guarantee.We also provide spare parts for customer.
5).We have good after-sale service system.If you need help,we take response within 1 hours.
The payment
We company accept TT,L/C,Western Union for new customer.
The delivery time
Normal delivery time within
3
working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
About quality
Welcome to our factory and check the quality of product.We will send you the video and pictures before shipment after you order.
Equipment warranty
Equipment with 12 months warranty, can be extended to 24 months as request.
