Quick Details
-
Voltage:
-
AC 380V
-
Weight (KG):
-
6000
-
Power (kW):
-
11
-
Max Piece Diameter:
-
900mm
-
Max Height:
-
400
-
Max Hole Dia.:
-
60mm
-
Worktable Diameter:
-
600mm
-
Worktable Speed:
-
100 rpm
-
Rotation Accuracy:
-
0.0015mm
-
Vertical Spindle Max Speed:
-
6000 rpm
-
Payment:
-
T/T
-
PACKING:
-
Factory Standard
-
Delivery Time:
-
60 days
Quick Details
-
Year:
-
2022
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
AC 380V
-
Weight (KG):
-
6000
-
Power (kW):
-
11
-
Max Piece Diameter:
-
900mm
-
Max Height:
-
400
-
Max Hole Dia.:
-
60mm
-
Worktable Diameter:
-
600mm
-
Worktable Speed:
-
100 rpm
-
Rotation Accuracy:
-
0.0015mm
-
Vertical Spindle Max Speed:
-
6000 rpm
-
Payment:
-
T/T
-
PACKING:
-
Factory Standard
-
Delivery Time:
-
60 days
Product Description

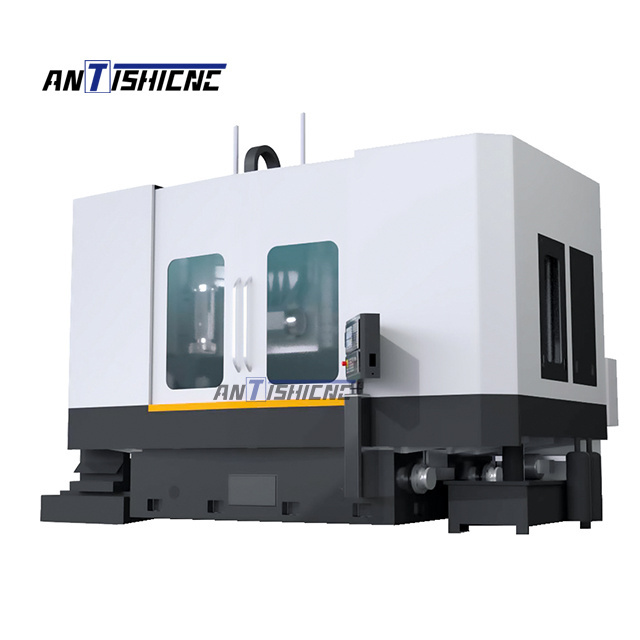

ANTISHICNC MGK2860 MG2880 Cylindrical CNC Vertical Grinding Machine Max Dia. 700/900 mm High Precision Full Cover CNC Grinder
|
Model
|
Unit
|
MGK2860
|
MGK2880
|
|
Max.work piece height
|
mm
|
400
|
400
|
|
Max. work piece diameter
|
mm
|
700
|
900
|
|
Min. hole diameter
|
mm
|
60
|
60
|
|
Table loading weight
|
kg
|
500
|
800
|
|
Rotary table size
|
mm
|
600
|
800
|
|
Max.RPM
|
rpm
|
100
|
80
|
|
Rotation accuracy
|
mm
|
0.0015
|
0.0015
|
|
Max.RPM
|
rpm
|
6000
|
6000
|
|
Motor power
|
KW
|
11
|
11
|
Cylindrical CNC Vertical Grinding Machine Details
Adopt high precision closed static pressure rotary table and high torque permanent magnet motor direct drive, with large bearing capacity and stable operation; Table rotation accuracy (axial/radial) ≤2μm
High strength stair wall beam and reinforced base with full contact structure, to ensure the machine high rigidity, good precision retention;
The use of NSK precision bearing spindle (axial/radial ≤2μm), vertical and horizontal double spindle, to meet different processing requirements; Optional with spindle of high-precision dynamic and static spindle (axial/radial ≤1μm) to meet the needs of higher precision machining;
Using imported SCHNEEBERGER big size High Precision Roller Type Guideway, X axis standard with FAGOR grating ruler;
Rotary table oil supply system, torque motor, grinding wheel spindle, cooling system, control system are equipped with temperature control device, to ensure the stable work of key components of the whole machine;
The work table is equipped with standard disk, optional electronic permanent magnet chuck, to meet the needs of different work piece clamping;
Using fully closed cover, can be configured with high power oil mist collector, optimize the working environment.
Cylindrical CNC Vertical Grinding Machine
Standard Equipment
Closed static pressure rotary table
Worktable standard with disk
Vertical/Horizontal wheel head (Include oil cooler)
High torque permanent magnet motor(Include oil cooler)
Rotary Table Hydraulic Station(Include oil cooler)
Siemens System
Linear Guideway ball screw lubrication device
Electric cabinet (including air conditioner)
Magnetic separator and paper filter coolant tank (including water cooler)
Air Filter
Wheel Flange and Balance Stand
Multi-point Wheel Dresser
Full closed Cover
Water Gun
Air Gun
Cylindrical CNC Vertical Grinding Machine
Optional Equipment
Dynamic and static Wheel spindle
Electronic permanent magnet chuck
Roll Type Dresser
Radius Wheel Dresser
Semi-closed Cover
High power oil mist machine
Automatic measuring device
Packing & Delivery
Notice:
Factory ordinary packaging, please confirm with the ANTISHI for more details.
