Easy Up Tall Manual Telescoping Mast for TV Antenna WiFi HAM RV

Easy Up Tall Manual Telescoping Mast for TV Antenna WiFi HAM RV

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Name:: Easy Up Tall Manual Telescoping Mast for TV Antenna WiFi HAM RV

Application:: lightning, WiFi Antennas ,VHF / UHF Antennas,camera,

Material:: aluminum alloy, stainless steel, fiberglass

number of sections:: 3-11 Telescoping Mast

Closed length:: 1-4m (Bottom base included)

Extended length:: 2-45m Telescoping Mast

Wind load::: working rate:25m/s Max rate:35m/s

Temperature::: working temp:-40--+50C Storage Temp:-55--+70C

Bottom base::: Thickness: 10mm

Rotation platform:: Diameter:100-180mm

Quick Details

Brand Name:: talents

Model Number:: TAL-M15-2.8-50

Place of Origin:: Tianjin, China

Name:: Easy Up Tall Manual Telescoping Mast for TV Antenna WiFi HAM RV

Application:: lightning, WiFi Antennas ,VHF / UHF Antennas,camera,

Material:: aluminum alloy, stainless steel, fiberglass

number of sections:: 3-11 Telescoping Mast

Closed length:: 1-4m (Bottom base included)

Extended length:: 2-45m Telescoping Mast

Wind load::: working rate:25m/s Max rate:35m/s

Temperature::: working temp:-40--+50C Storage Temp:-55--+70C

Bottom base::: Thickness: 10mm

Rotation platform:: Diameter:100-180mm

Product Paramenters

Model NO.	TAL-M15-2.8-50
Extented Height	15m ±5cm
Retracted Height	2.8m ±5cm
Lifting Method	manual(hand winch)
Max. top Payload	50kg
Max.Wind load	80km/h with guy wire fixed
Working temperature	-25 deg C to +50 deg C
Main material	aluminum alloy 6063/T5
Tubes shape	round
Section	7
Maximum Tube Diameter	160mm
Minimum Tube Diameter	55mm
Surface and color	Surface colors can be customized Surface treatment is powder coating
Top Plate	Dia.160mm, 4 holes of 10mm（can be customized）
Bottom Base	Dia.300mm, 4 holes of 13mm（can be customized）
Weight of Mast	80kg
Weight of Tripod	20kg
Weight of Accessories	9kg
Package	plywood case
Accessories	Tripod---------1pc Handle bar----1pc Anchors with 50 cm length---3 pcs Ground nails with 40 cm length----------6 pcs Guy wires--------9 pcs

Accessories

1.If used on a horizontal or ground level,a tripod, Guy wires,Ground nails and anchors are also required.

(1)Fix the bottom base and tripod to the flat ground with steel nails.

(2)Fix the guy wires to the ground with ground anchor
2.U-clamp and L-base for vehicle mounted.

If you have other accessories requirement, please contact us separately.

Application

Common Application

Our cranks masts are in use for public office as well as civil purposes like communication,

monitoring,camera,antenna, production,

telecommunication,Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Site Security……etc

Installation Scenario

--- Our masts can be installed on any level ground, land, grass, wall, box side, container or interior or door of emergency vehicles, fire trucks, vans, small cars, SUVs, etc.

--- Different installation scenarios require different accessories, which are mainly divided into vehicle and ground installation.

--- In order to give you a more reasonable quotation, please tell us the installation scene or the accessories you need before inquiry

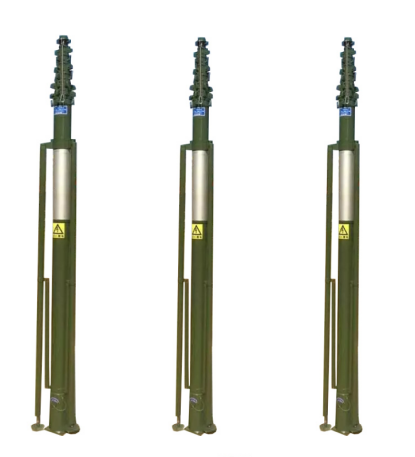

Manual Telescopic Mast

Customized size accepted

-----Height is available from 1.5m to 32m

-----That can carry load up to 100kgs

Please tell us the extension height,the top payload weight, the application scenario of the mast, we will help you design！！！

Some of the specifications are as follows:

Model No.	Extended Height(m)	Retracted Height(m)	Top payload weight(kg)	No. of section	Outer tube range(mm)	Self weight (kg)
TAL-M3-1.3-15	3	1.30	15	3	42-69	20
TAL-M4-1.5-15	4	1.50	15	4	42-83	23
TAL-M5-1.5-60	5	1.5	60	5	50-130	45
TAL-M6-1.5-30	6	1.5	30	6	42-114	45
TAL-M6-1.7-50	6	1.7	50	5	55-114	38
TAL-M6-1.8-80	6	1.8	80	4	68-130	38
TAL-M8-1.85-10	8	1.85	10	6	42-114	45
TAL-M9-2.0-40	9	2.0	40	6	55-132	55
TAL-M9-2.0-100	9	2.0	100	7	42-162	65
TAL-M10-1.8-10	10	1.8	10	8	42-150	75
TAL-M10-1.95-15	10	1.95	15	7	42-132	65
TAL-M10-2.2-30	10	2.2	30	7	55-160	68
TAL-M12-2.0-5	12	2.0	5	8	30-132	70
TAL-M12-2.3-25	12	2.3	25	7	42-132	80
TAL-M12-2.3-40	12	2.3	40	7	55-160	95
TAL-M12-2.55-100	12	2.55	100	6	69-160	85
TAL-M14-2.4-5	14	2.4	5	8	30-132	75
TAL-M16-2.65-20	16	2.65	20	8	42-150	80
TAL-M16-2.4-50	16	2.4	50	9	42-180	90
TAL-M16-2.7-75	16	2.7	75	8	55-180	88
TAL-M18-3.7-30	18	3.7	30	6	55-132	100
TAL-M18-3.7-60	18	3.7	60	6	50-160	110
TAL-M20-3.3-10	20	3.3	10	8	30-132	100
TAL-M20-3.3-30	20	3.3	30	8	42-150	110
TAL-M22-3.3-15	22	3.3	15	9	55-200	115
TAL-M25-3.63-15	25	3.65	15	9	42-175	110
TAL-M30-4.0-15	30	4.0	15	10	42-200	130

Installation Schematic

Installation Guideline

Step 1: Install the equippments on the top of mast
Step 2: Fix the bottom base and tripod to the flat ground with steel stakes
Step 3: If wind speed is more than 50 km/h, guy wires to be fixed from the mast to the ground
Step 4: Operate handle bar to raise or lower manual mast

Installation Ground Nails

Six ground nails are installed on the three holes of the bottom flange and the three feet of the tripod.

Installation Guy Wires

Take a mast with a height of 12 m as an example
(1)From the top of the first section, the third section and the fifth section, there are three rings on the tube, and the positions among the three rings are separated by 120 degrees.
(2)The length of the guy wires is 8-15 m, the longest guy wires is hung on the top rings, and the guy wires is hung from long to short in turn on the rings from high to low.Three guy wires are installed for each section tube. A total of nine guy wires are installed for three section tubes.
(3)Fix the guy wires to the ground with ground anchor, the degree among three ground anchors is around 120 degree,The distance from the ground anchor to the center point of mast can be from about 7 m.

As listed in the table,the distance from the anchor to the center point of the mast varies according to the total height of the mast extension.
